Customized Piezoelectric Lithium Niobate Wafer Ring Shape Orientation Z-cut X-cut
Product Details:
| Place of Origin: | China |
| Brand Name: | CSIMC |
| Certification: | ISO:9001, ISO:14001 |
| Model Number: | Lithium Niobate Wafer |
Payment & Shipping Terms:
| Minimum Order Quantity: | 5 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Cassette/ Jar package, vaccum sealed |
| Delivery Time: | 1-4 weeks |
| Payment Terms: | T/T |
| Supply Ability: | 10000 pcs/Month |
|
Detail Information |
|||
| Product: | Lithium Niobate Wafer Ring | Grade: | Optical / SAW Grade |
|---|---|---|---|
| Cut Type: | X, Z | Out Dia.: | 5mm ~ 100mm |
| Inner Dia.: | 2mm ~ 80mm | Thickness: | 0.35mm / 0.5mm / 1.0mm / 3.0mm |
| Surface Type: | DSP, SSP, Lapping | Ra Roughness: | Ra <1nm, Ra 0.2~0.7um |
| Highlight: | Customized Lithium Niobate Wafer,Z-cut Lithium Niobate Wafer,X-cut Lithium Niobate Wafer |
||
Product Description

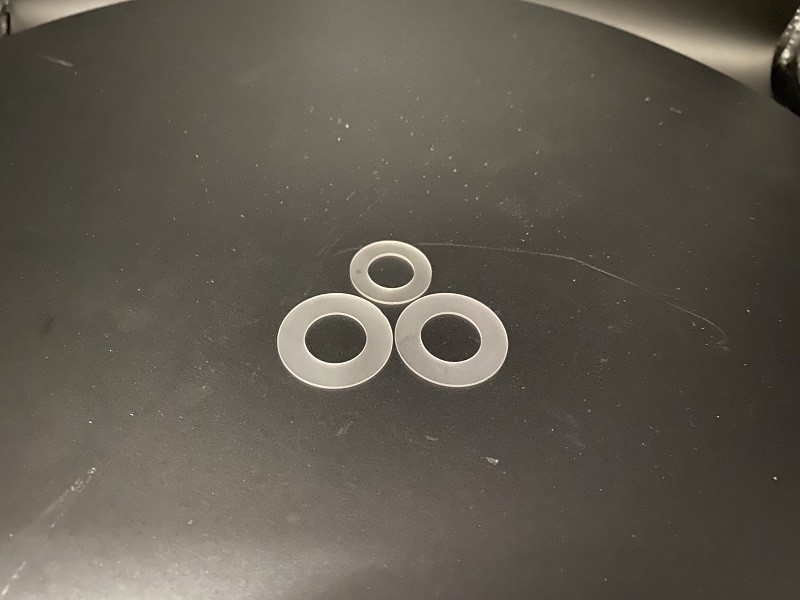

Customized Piezoelectric Lithium Niobate Wafer Ring Shape Orientation Z-cut X-cut
Unlock the potential of next-generation optical technologies with our innovative Lithium Niobate Wafer Ring. This cutting-edge product represents the forefront of optical device design, offering unbeatable performance and reliability.
The Lithium Niobate Wafer Ring leverages the unique properties of Lithium Niobate, a material renowned for its optical and electro-optic capabilities. This allows it to provide superior optical performance, with low loss and high transmission efficiency, essential for demanding applications.
What sets our Lithium Niobate Wafer Ring apart is its compact design and excellent integration capabilities. It can be seamlessly integrated into existing systems, offering a flexible and cost-effective solution for upgrading optical components.
Moreover, our Lithium Niobate Wafer Ring is suitable for a wide range of applications, including modulators, filters, and optical switches. Whether you're developing cutting-edge telecommunication systems or high-performance sensors, our product can help you achieve the desired performance and functionality.
We are proud to offer our Lithium Niobate Wafer Ring, a product that represents the pinnacle of optical device design. We believe that it will revolutionize the industry, enabling you to create more advanced and efficient optical systems. Contact us today to learn more about how our Lithium Niobate Wafer Ring can transform your optical devices.
|
Material |
LiNbO3 wafer, Piezo Ring |
|
Orientation |
X / Z / Y41° / Y64° / Y128° / YZ / YX or Customized |
|
Outter Diameter |
5mm ~ 150mm |
|
Inner Diameter |
2mm ~ 100mm |
|
Surface finish |
Single or Double sides polish (DLP/SLP/ SSP/DSP all available) |
|
Thickness |
0.35 / 0.50 / 1.00 / 3.00 + mm |
|
TTV |
< 1~5µm |
|
BOW |
± (25µm ~40um ) |
|
Warp |
<= 35µm |
|
LTV (5mmx5mm) |
<1.5 um |
|
PLTV(<0.5um) |
≥98% (5mm*5mm) with 2mm edge excluded |
|
Edge |
Compl't with SEMI M1.2@with GC800# .regular at C typed |
|
Orientation flats |
available, per request |
|
Polished side Ra |
Roughness Ra<=5A |
|
Back Side Criteria |
Roughness Ra:0.5-1.0µm GC#1000 |
|
Edge Rounding |
Compliant with SEMI M1.2 Standard/refer to IEC62276 |
|
Cracks, saw marks, stains |
None |
