0.5mm Black Pyroelectric Free LiNbO3 Wafer 8 Inch 128Y-cut SAW IDT Application
Product Details:
Place of Origin: | China |
Brand Name: | BonTek |
Certification: | ISO:9001, ISO:14001 |
Model Number: | Lithium Niobate Wafer |
Payment & Shipping Terms:
Minimum Order Quantity: | 5 pcs |
---|---|
Price: | Negotiable |

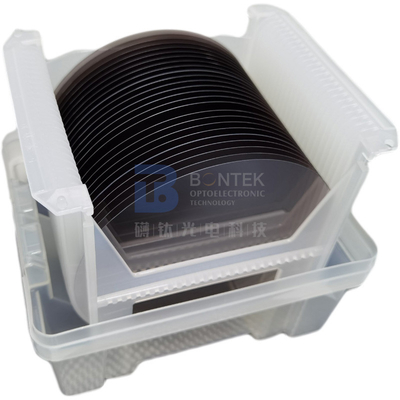

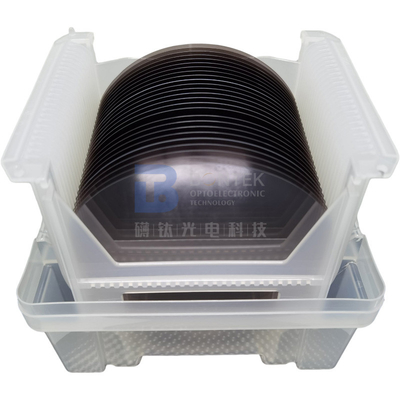

Packaging Details: | Cassette/ Jar package, vaccum sealed |
Delivery Time: | 1-4 weeks |
Payment Terms: | T/T |
Supply Ability: | 10000 pcs/Month |
Detail Information |
|||
Material: | Lithium Niobate Wafer | Reduction: | Reduced LiNbO3 |
---|---|---|---|
Character: | Pyroelectric Free Black Wafer | Resistivity: | 0.9E+11 ~ 9.0E+11, As Per Request |
Diameter: | 3'', 4'', 6'', 8'', Etc. | Industry Use: | Interdigital Transducer, SAW Devices |
Surface Finish: | DSP, SSP, Lap, Etch | Ra Roughness: | Ra<0.5nm, Ra<1nm |
Highlight: | 0.5mm LiNbO3 Wafer,Pyroelectric Free Black Wafer,LiNbO3 Wafer 128Y-cut |
Product Description
0.5mm Black Pyroelectric Free LiNbO3 Wafer 8 Inch 128Y-cut SAW IDT Application
Lithium Niobate (LiNbO3) is a ferroelectric material suitable for a variety of applications. Its versatility is made possible by the excellent electro-optic, nonlinear, and piezoelectric properties of the intrinsic material.

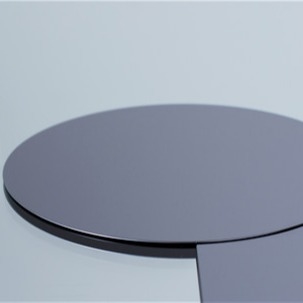

The reduction technique is used to produce black lithium niobate (LiNbO3), which has a high ability to neutralize charges even if the electric potential occurs instantaneously. The pyroelectric effect of LN wafer is almost eliminated and the transmittance is significantly reduced. The piezoelectric properties of black lithium niobate wafers are no different from those of standard wafers. Therefore, black reduced lithium niobate wafers are widely used to produce higher frequency surface acoustic wave devices.
BonTek is proud to announce that we can offer 3 ", 4 ", and 6 "black LN wafers for all cutting angles! Used for 128°Y and Z-cuts up to 8 inches in diameter.
Diameter |
76.2±0.2mm |
100±0.2mm |
150±0.2mm |
200±0.2mm |
Primary Flat |
22±1mm |
32±1mm |
47.5mm, 57.5mm, Notch |
57.5mm, Notch |
Orientation |
36°Y, 42°Y, X-112°Y, Y, Z |
|||
Thickness |
0.07mm~5.0mm |
0.1mm~5.0mm |
0.35mm~5.0mm |
0.35mm~5.0mm |
Surface finish |
Single / Double side polish / Double side lapped |
|||
TTV |
< 1~5µm |
|||
BOW |
± (20µm ~40um ) |
|||
Warp |
<= 20µm ~ 50µm |
|||
LTV (5mmx5mm) |
<1.5 um |
|||
PLTV(<0.5um) |
≥98% (5mm*5mm) with 2mm edge excluded |
|||
Polished side Ra |
Roughness Ra<=5A |
|||
Back Side Criteria |
Roughness Ra:0.5-1.0µm, GC#1000 |
|||
Scratch & Dig (S/D) |
20/10, 40/20, 60/40 |
|||
Edge Profile |
Compl't with SEMI M1.2@with GC800# .regular at C typed |
|||
Cracks, saw marks, stains |
None |
Melting Point |
1253° C |
Crystal System |
Trigonal |
Point Group |
3m |
Crystal Density |
4.647 x 10³ kg / m³ |
Curie Temperature (Tc) |
1150°C |
Heat Capacity (Cp) |
89 J / k.mol |
Dielectric Constants |
T11=85.2 |
T33=28.7 |
FAQs:
- Q: What are the products you mainly work on?
A: We look at ourselves as the piezo wafer specialist. We are the very first to work with Single Crystal Quartz in China about 30 years ago. Then gradually we step in the field of LiNbO3, LiTaO3, Quartz glass, LGS, CTGS etc. Especially, if you are looking for a piezo quartz supplier, we are the ultimate choice! We export millions of quartz blanks each year because we master the AT, SC and IT cuts with superior angle precision.
- Q: Can you accept product customization?
A: Yes, of course. We can fabricate as per your request. In addition, we are so experienced with piezo wafers that we can provide you relevant suggestions if you are not 100% sure about your choice. Besides, we do have some standard wafers in stock, please check with us.
- Q: Can you deliver the goods via our courier agent?
A: Yes, we would suggest you go with the courier agent you are most familiar with (DHL, FedEX, UPS etc.). We can ship via your account. And, of course, we will pack the products safely in acceptable size to help you save the shipping cost. If you need us to take care of the freight, it’s also not a problem. We also have good discount with the international courier companies.
- Q: How can you guarantee we get what we want safely?
A: The wafer products are fragile and sometimes expensive. The last thing, as the manufacturer, we want to see is the products we make were damaged during courier. As a result, we will pack the wafers adequately and put them in a proper carton filled with buffer sponge. However, accidents are inevitable sometimes. So, please follow the “Acceptance check” steps shown in the drawings below. If the unwanted happened, we will either give the replenishment or refund if you follow the checking steps.
Acceptance Check
- The product is fragile. We have adequately packed it and labeled it fragile. We deliver through excellent domestic and international express companies to ensure transportation quality.
- After receiving the goods, please handle with care and check whether the outer carton is in good condition. Carefully open the outer carton and check whether the packing boxes are in alignment. Take a picture before you take them out.
- Please open the vacuum package in a clean room when the products are to be applied.
- If the products are found damaged during courier, please take a picture or record a video immediately. DO NOT take the damaged products out of the packaging box! Contact us immediately and we will solve the problem well.
