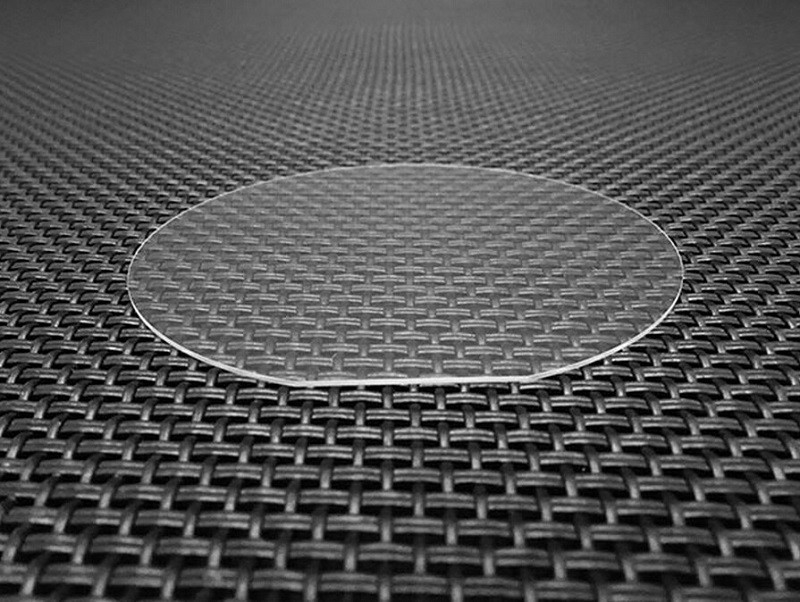

Sapphire Al2O3 Crystal Substrate Ultrathin Double Side Polished For Optical Lenses
Product Details:
| Place of Origin: | China |
| Brand Name: | CSIMC |
| Certification: | ISO:9001 |
| Model Number: | Sapphire (Al2O3) |
Payment & Shipping Terms:
| Minimum Order Quantity: | 5 Pieces |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Cassette, Jar, Film package |
| Delivery Time: | 1-4 weeks |
| Payment Terms: | T/T |
| Supply Ability: | 10000 pieces/Month |
|
Detail Information |
|||
| Material: | Sapphire (Al2O3) Crystal | Type: | Single Crystal |
|---|---|---|---|
| Purity: | 99.999％ | Growth Method: | Horizontally Directed Crystallization (HDC) |
| Melting Point: | 2040 Degrees C | Young's Modulus (E): | 335 GPa |
| Shear Modulus (G): | 148.1 GPa | Industry: | Led，optical Glass，eli-ready Wafer |
| Highlight: | Optical Lenses Sapphire Al2O3 Crystal Substrate,Ultrathin Sapphire Al2O3 Crystal Substrate |
||
Product Description
Sapphire Al2O3 Crystal Substrate Ultrathin Double Side Polished For Optical Lenses
Synthetic Sapphire
Unveiling the latest innovation in the technology industry - the exquisite sapphire chip! This cutting-edge marvel is revolutionizing the way we view and interact with digital devices.
Crafted from pure sapphire, a gemstone renowned for its exceptional durability and clarity, this chip is a testament to precision engineering. Sapphire's hardness and scratch-resistance ensure the chip retains its pristine condition, even under the harshest conditions.
Moreover, the sapphire chip boasts unparalleled performance. Its unique properties enable faster data processing, smoother graphics rendering, and enhanced energy efficiency. Whether you're gaming, streaming, or working on demanding tasks, the sapphire chip delivers an unforgettable user experience.
Invest in the future of technology with the sapphire chip. Embrace its elegance, durability, and performance, and let it transform your digital world.
OPTICAL PROPERTIES
|
Transmission |
0.17 to 5.5 um |
|
Refractive Index |
1.75449 (o) 1.74663 (e) at 1.06 um |
|
Reflection Loss |
at 1.06 microns (2 surfaces) for o-ray - 11.7%; for e-ray - 14.2% |
|
Absorption Index |
0.3 x 10-3 cm-1 at 2.4 um |
|
dN/dT |
13.7 x 10-6 at 5.4 um |
|
dn/dm = 0 |
1.5 um |
|
Orientation |
R-plane, C-plane, A-plane, M-plane or a specified orientation |
|
Orientation Tolerance |
± 0.3° |
|
Diameter |
2 inches, 3 inches, 4 inches, 6 inches, 8 inches or others |
|
Diameter Tolerance |
0.1mm for 2 inches, 0.2mm for 3 inches, 0.3mm for 4 inches, 0.5mm for 6 inches |
|
Thickness |
0.25mm, 0.33mm, 0.43mm, 0.65mm, 1mm or others; |
|
Thickness Tolerance |
25μm |
|
Primary Flat Length |
16.0±1.0mm for 2 inches, 22.0±1.0mm for 3 inches, 30.0±1.5mm for 4 inches, 47.5/50.0±2.0mm for 6 inches |
|
Primary Flat Orientation |
A-plane (1 1-2 0 ) ± 0.2°; C-plane (0 0-0 1 ) ± 0.2°, Projected C-Axis 45 +/- 2° |
|
TTV |
≤10µm for 2 inches, ≤15µm for 3 inches, ≤20µm for 4 inches, ≤25µm for 6 inches |
|
BOW |
≤10µm for 2 inches, ≤15µm for 3 inches, ≤20µm for 4 inches, ≤25µm for 6 inches |
|
Front Surface |
Epi-Polished (Ra< 0.3nm for C-plane, 0.5nm for other orientations) |
|
Back Surface |
Fine ground (Ra=0.6μm~1.4μm) or Epi-polished |
|
Packaging |
Packaged in a class 100 clean room environment |
Acceptance Check
1. The product is fragile. We have adequately packed it and labeled it fragile. We deliver through excellent domestic and international express companies to ensure transportation quality.
2. After receiving the goods, please handle with care and check whether the outer carton is in good condition. Carefully open the outer carton and check whether the packing boxes are in alignment. Take a picture before you take them out.
3. Please open the vacuum package in a clean room when the products are to be applied.
4. If the products are found damaged during courier, please take a picture or record a video immediately. DO NOT take the damaged products out of the packaging box! Contact us immediately and we will solve the problem well.
