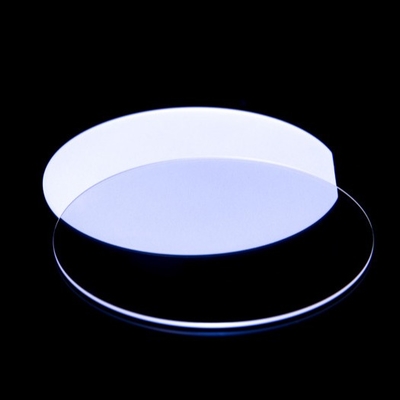

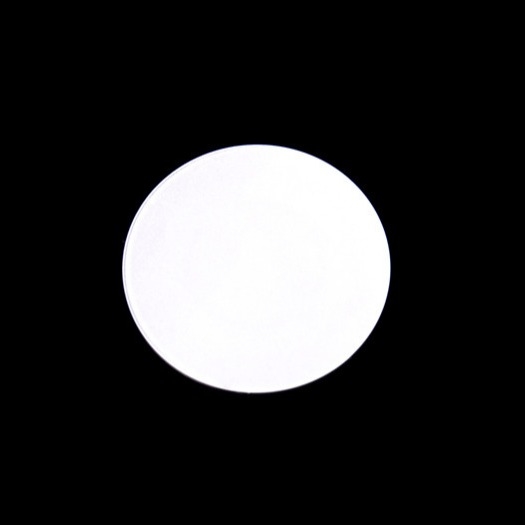

5 Inch Dia 125mm Sapphire Substrate 9.0 High Hardness 99.999％ Al2O3 Material
Product Details:
| Place of Origin: | China |
| Brand Name: | BonTek |
| Certification: | ISO:9001 |
| Model Number: | Sapphire (Al2O3) |
Payment & Shipping Terms:
| Minimum Order Quantity: | 5 Pieces |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Cassette, Jar, Film package |
| Delivery Time: | 1-4 weeks |
| Payment Terms: | T/T |
| Supply Ability: | 10000 pieces/Month |
|
Detail Information |
|||
| Material: | Al2O3 Wafer | Purity: | 99.999％ |
|---|---|---|---|
| Melting Point: | 2040 °C | Thermal Conductivity: | 27.21 W/(m X K) At 300 K |
| Diameter: | 5 Inch, 125mm | Hardness: | 9.0 |
| Specific Heat Capacity: | 419 J/(kg X K) | Dielectric Constant: | 11.5 (parallel C-axis) 9.4 (perpendicular C-axis) At 1MHz |
| Highlight: | 125mm Sapphire Substrate,125mm Al2O3 Substrate,5 Inch patterned sapphire substrate |
||
Product Description
5 Inch Dia 125mm Sapphire Substrate 9.0 High Hardness 99.999％ Al2O3 Material
Single crystal sapphire Al2O3 possesses a unique combination of excellent optical, physical and chemical properties. The hardest of the oxide crystals, sapphire Al2O3 retains its high strength at high temperatures, has good thermal properties and excellent transparency. Sapphire Al2O3 optics is chemically resistant to many acids and alkalis at temperatures up to 1000 degrees C as well as to HF below 300 degrees C. These properties encourage its wide use of Sapphire Al2O3 optics in hostile environments where optical transmission in the range from the visible to the near infrared is required.
|
Item |
5-inch C-plane(0001) 650μm Sapphire Wafers |
|
|
Crystal Materials |
99,999%, High Purity, Monocrystalline Al2O3 |
|
|
Grade |
Prime, Epi-Ready |
|
|
Surface Orientation |
C-plane(0001) |
|
|
C-plane off-angle toward M-axis 0.2 +/- 0.1° |
||
|
Diameter |
125.0 mm +/- 0.1 mm |
|
|
Thickness |
650 μm +/- 25 μm |
|
|
Primary Flat Orientation |
A-plane(11-20) +/- 0.2° |
|
|
Primary Flat Length |
42.0 mm +/- 1.0 mm |
|
|
Single Side Polished |
Front Surface |
Epi-polished, Ra < 0.2 nm (by AFM) |
|
(SSP) |
Back Surface |
Fine ground, Ra = 0.8 μm to 1.2 μm |
|
Double Side Polished |
Front Surface |
Epi-polished, Ra < 0.2 nm (by AFM) |
|
(DSP) |
Back Surface |
Epi-polished, Ra < 0.2 nm (by AFM) |
|
TTV |
< 20 μm |
|
|
BOW |
< 20 μm |
|
|
WARP |
< 20 μm |
|
|
Cleaning / Packaging |
Class 100 cleanroom cleaning and vacuum packaging, single piece packaging. |
|
Acceptance Check
1. The product is fragile. We have adequately packed it and labeled it fragile. We deliver through excellent domestic and international express companies to ensure transportation quality.
2. After receiving the goods, please handle with care and check whether the outer carton is in good condition. Carefully open the outer carton and check whether the packing boxes are in alignment. Take a picture before you take them out.
3. Please open the vacuum package in a clean room when the products are to be applied.
4. If the products are found damaged during courier, please take a picture or record a video immediately. DO NOT take the damaged products out of the packaging box! Contact us immediately and we will solve the problem well.
