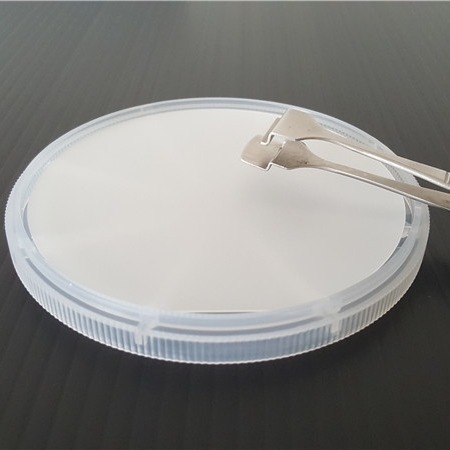

8 Inch Dia 200mm Sapphire Wafer 1.0mm 1sp For Epi - Ready Carrier
Product Details:
| Place of Origin: | China |
| Brand Name: | BonTek |
| Certification: | ISO:9001 |
| Model Number: | Sapphire (Al2O3) |
Payment & Shipping Terms:
| Minimum Order Quantity: | 5 Pieces |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Cassette, Jar, Film package |
| Delivery Time: | 1-4 weeks |
| Payment Terms: | T/T |
| Supply Ability: | 10000 pieces/Month |
|
Detail Information |
|||
| Material: | Al2O3 Wafer | Purity: | 99.999％ |
|---|---|---|---|
| Melting Point: | 2040 °C | Thermal Conductivity: | 27.21 W/(m X K) At 300 K |
| Diameter: | 5 Inch, 125mm | Hardness: | 9.0 |
| Specific Heat Capacity: | 419 J/(kg X K) | Dielectric Constant: | 11.5 (parallel C-axis) 9.4 (perpendicular C-axis) At 1MHz |
| Highlight: | 200mm Sapphire Wafer,125mm Al2O3 Wafer,8 Inch Sapphire Wafer |
||
Product Description
8 Inch Dia 200mm Sapphire Wafer By 1.0mm Thickness 1sp For Epi - Ready Carrier
Single crystal sapphire Al2O3 possesses a unique combination of excellent optical, physical and chemical properties. The hardest of the oxide crystals, sapphire Al2O3 retains its high strength at high temperatures, has good thermal properties and excellent transparency.
The main application of optical sapphire is large aperture windows, viewports, illuminators for common-aperture optical systems (visible+IR) what make sapphire the top actual material due to its optical and mechanical properties.
Sapphire products are used in many fields as optical details (windows, plates, light guides and lenses, especially sapphire plane-parallel plates - windows, optical high-temperature substrates, exact mechanics details, bulbs of high pressure lamps and so on.
|
Item |
8-inch C-plane(0001) 1300μm Sapphire Wafers |
|
|
Crystal Materials |
99,999%, High Purity, Monocrystalline Al2O3 |
|
|
Grade |
Prime, Epi-Ready |
|
|
Surface Orientation |
C-plane(0001) |
|
|
C-plane off-angle toward M-axis 0.2 +/- 0.1° |
||
|
Diameter |
200.0 mm +/- 0.2 mm |
|
|
Thickness |
1300 μm +/- 25 μm |
|
|
Single Side Polished |
Front Surface |
Epi-polished, Ra < 0.2 nm (by AFM) |
|
(SSP) |
Back Surface |
Fine ground, Ra = 0.8 μm to 1.2 μm |
|
Double Side Polished |
Front Surface |
Epi-polished, Ra < 0.2 nm (by AFM) |
|
(DSP) |
Back Surface |
Epi-polished, Ra < 0.2 nm (by AFM) |
|
TTV |
< 30 μm |
|
|
BOW |
< 30 μm |
|
|
WARP |
< 30 μm |
|
|
Cleaning / Packaging |
Class 100 cleanroom cleaning and vacuum packaging, |
|
|

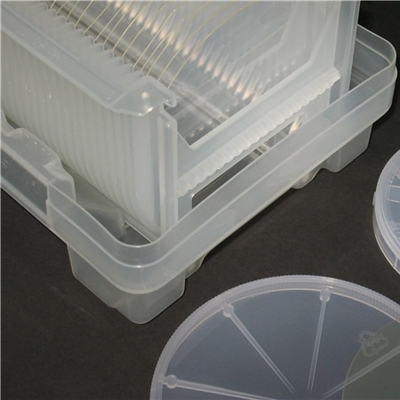

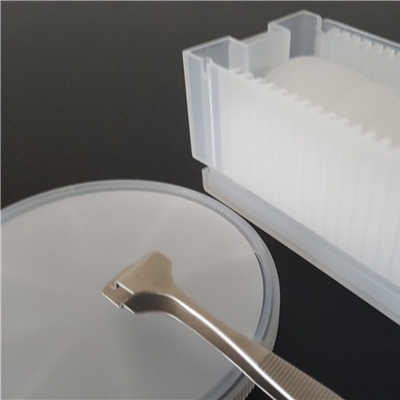

25 pieces in one cassette packaging or single piece packaging. |
||
Acceptance Check
1. The product is fragile. We have adequately packed it and labeled it fragile. We deliver through excellent domestic and international express companies to ensure transportation quality.
2. After receiving the goods, please handle with care and check whether the outer carton is in good condition. Carefully open the outer carton and check whether the packing boxes are in alignment. Take a picture before you take them out.
3. Please open the vacuum package in a clean room when the products are to be applied.
4. If the products are found damaged during courier, please take a picture or record a video immediately. DO NOT take the damaged products out of the packaging box! Contact us immediately and we will solve the problem well.
