Detail Information

Material: Borofloat Glass Brand: Schott Brorofloat 33
Diameter: 76.2mm 100mm 150mm 200mm Thickness: 200um 350um 500um 1000um
Edge: Round Ground Surface: DSP SSP
Refractive Index: 1.4585 (at 587.6 Nm) ApSemiconductor, MEMSplication: Semiconductor, MEMS

Product Description

Borofloat 33 Glass Substrate Engineered for Excellence in High-Tech Applications and Precision Operations



‌Borofloat 33® Glass Substrates: Precision, Durability, and Versatility Redefined‌

Unlock next-level performance for your high-tech applications with ‌Borofloat 33® Glass Substrates‌, the borosilicate glass engineered for extreme thermal, chemical, and mechanical resilience. Renowned for its ultra-low thermal expansion and superior surface quality, Borofloat 33® is the go-to choice for industries demanding precision under stress.



‌Why Borofloat 33® Stands Out‌

  • ‌Exceptional Thermal Stability‌: Withstand rapid temperature swings (-60°C to 450°C) without distortion, thanks to its near-zero thermal expansion (CTE: 3.25 × 10⁻⁶/K).
  • ‌Optical Clarity & Chemical Resistance‌: High transmission from UV to IR (280nm–2,000nm), paired with resistance to acids, alkalis, and solvents, ensures longevity in harsh environments.
  • ‌Flame-Polished Surface Perfection‌: Achieve minimal surface roughness (≤1nm Ra) and pristine flatness, critical for MEMS, microfluidics, and thin-film coatings.
  • ‌Customizable Solutions‌: Available in thicknesses (0.3mm to 15mm), sizes up to 1,100mm × 1,450mm, and post-processing options (chemically strengthened, etched, or drilled).

‌Applications That Demand Excellence‌
From semiconductor wafer carriers and precision optics to lab-on-a-chip devices and high-power LED encapsulation, Borofloat 33® empowers innovation across:

  • ‌Electronics‌: RF/microwave substrates, hermetic packaging
  • ‌Biotech‌: Microfluidic chips, biosensor platforms
  • ‌Energy‌: Solar panel covers, fuel cell components
  • ‌Industrial‌: High-temperature viewports, laser system optics



Borofloat 33 Glass Wafer Parameters

Material BOROFLOAT 33
Density (@ 25°C/77°F) 2.23 g/cm3
Modulus of Elasticity 63 kN/mm2
Knoop Hardness HK 0.1/20 480
Poisson’s Ratio 0.2
Dielectric Constant (@ 1 MHz & 25°C) 4.6
Loss Tangent (@ 1 MHz & 25°C) 37 x 10-4
Dielectric Strength(@ 50 Hz & 25°C) 16 kV/mm
Refractive Index (nd) 1.472
Dispersion (nF - nC) 71.9 x 10-4





Borofloat 33 Glass Wafer Specifications

Specification 3” 4” 5" 6" 8"
Diameter 76.2mm 100mm 125mm 150mm 200mm
Tol(±) <0.1~0.25 mm
Thickness >0.10mm >0.10mm >0.30mm >0.30mm >0.30mm
Primary Flat 22mm 32.5mm 42.5mm 57.5mm Notch
Notch
TTV <8um <10um <15um <20um <30um
Bow ±20um ±25um ±40um ±40um ±60um
Warp <30um <40um <50um <50um <60um
PLTV(<0.5um) ≥95%(5mm*5mm)
Transmittance UV, Optical, IR or Custom option
Edge Rounding Compliant with SEMI M1.2 Standard/refer to IEC62276
Surface Type Single Side Polished /Double Sides Polished
Polished side Ra <1.0nm or specific per requested
Back Side Criteria General is 0.2-0.5µm or as customized
Appearance Contamination None
Particles>0.3µm <=30
Saw Marks, striations None
Scratch None
Cracks, saw marks, stains None

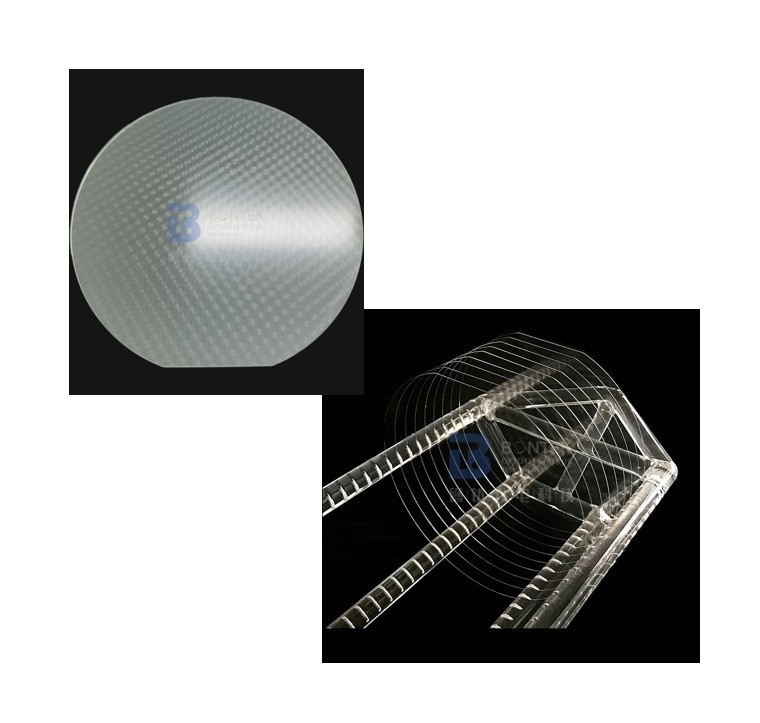

Glass Wafer Photos
