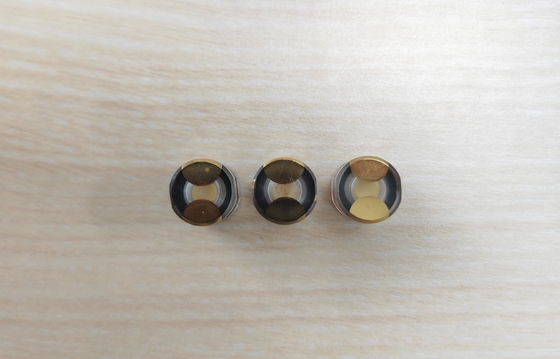

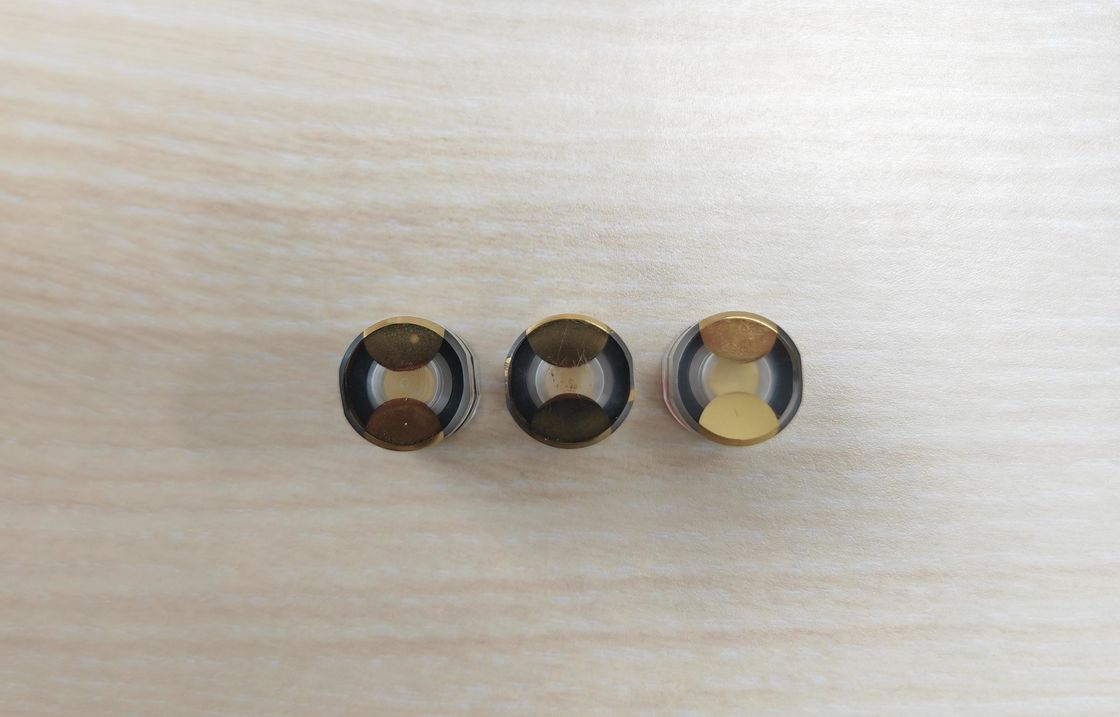

Precision and Durability Quartz End Caps for High-Temperature and High-Pressure Applications
Product Details:
| Place of Origin: | China |
| Brand Name: | CQT |
| Certification: | ISO:9001, ISO:14001 |
| Model Number: | Quartz Sensor |
Payment & Shipping Terms:
| Minimum Order Quantity: | 20 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Cassette/ Jar package, vaccum sealed |
| Delivery Time: | 1-4 weeks |
| Payment Terms: | T/T |
| Supply Ability: | 50000 pcs/Month |
|
Detail Information |
|||
| Product: | Quartz Endcap | Material: | Single Crystal Quartz |
|---|---|---|---|
| Orientation: | AT-Cut | Coating: | Au And Cr |
| Sealing: | Glass Frit | Applications: | Quartz Pressure Sensor |
Product Description
Precision and Durability Quartz End Caps for High-Temperature and High-Pressure Applications
Precision Engineered for Extreme Environments
Elevate your industrial and technological applications with our premium Quartz End Caps, designed to deliver unmatched performance in the most demanding conditions. Renowned for their exceptional thermal stability, chemical resistance, and optical clarity, quartz end caps are the go-to solution for industries requiring reliability under extreme temperatures and corrosive environments.
Why Our Quartz End Caps Stand Out
- Ultra-High Purity Material: Crafted from 99.99% fused silica, our end caps ensure minimal contamination, making them ideal for semiconductor processing, vacuum systems, and high-purity chemical applications.
- Extreme Durability: Withstand temperatures up to 1,200°C and resist thermal shock, acids, and alkalis, outperforming traditional materials like ceramics or metals.
- Customizable Designs: Available in diameters from 10mm to 300mm, with tailored shapes, thicknesses, and surface finishes (polished, ground, or coated) to meet precise specifications.
- Broad Industry Applications: Perfect for laser systems, fiber optic communications, LED manufacturing, CVD/PVD reactors, and analytical instrumentation.
Engineered for Excellence
Our quartz end caps are precision-machined using advanced CNC and ultrasonic processing to ensure micron-level accuracy. Each unit undergoes rigorous quality checks, including helium leak testing, spectroscopy, and surface integrity analysis, guaranteeing airtight seals and flawless performance.
| Materials | Single Quartz Blanks (both Piezo / Optical grade) |
| Materials | Both Pure Z and Y Bar available |
| Synthetic Q-Value | Min 1.8x10^6, 2.4x10^6 to 3.0x10^6 IEC standards |
| ECD | Max 100/c㎡, Max 300/c㎡; or per Customer’s request |
| Inclusions Density | I, II, III Grades |
| Cuts Type ( orientation) | AT, BT, CT, ET ,DT, GT, NT, FC, SC, IT, AC ,BC ,ST .TS MT ,NT RT …, etc per requested |
| Angle Tolerance(±) | Theta Angle: ±5″, ±10″, ±15″, ±30″, ±1′, ±2′, … , etc |
| Phi Angle:±5′, ±10′, ±15′, ±30′, … , etc | |
| Size For Round endcaps | From 10.0mm to 15.00mm (with flat) , 13.80mm as typical one |
| Height / Thickness | 5.00-7.00 mm per requested |
| Flat | Per requested the flat shall be perpendicular to X axis within ±10 deg |
| Surface Finishing | #1000(9u); #2000(7u); #3000(5u); #4000(3u) (Sic); Polished(Cerium oxide)& etched Std |
Packing and Shipping:
Our Piezoelectric Quartz Endcaps are carefully packed in a sealed and secure container with an anti-static layer and moisture barrier to ensure that it arrives securely and undamaged.
The container is then sealed and labeled with a unique identification number for tracking purposes.
We offer both domestic and international shipping options, with the latter requiring additional paperwork. We also provide a tracking number for all domestic shipments.
For further inquiries about our packaging and shipping services, please contact our customer service team.
