Product Details:

Place of Origin: China
Brand Name: CSIMC
Certification: ISO:9001, ISO:14001
Model Number: Fused Silica, Fused Quartz

Payment & Shipping Terms:

Minimum Order Quantity: 5 pcs
Price: Negotiable

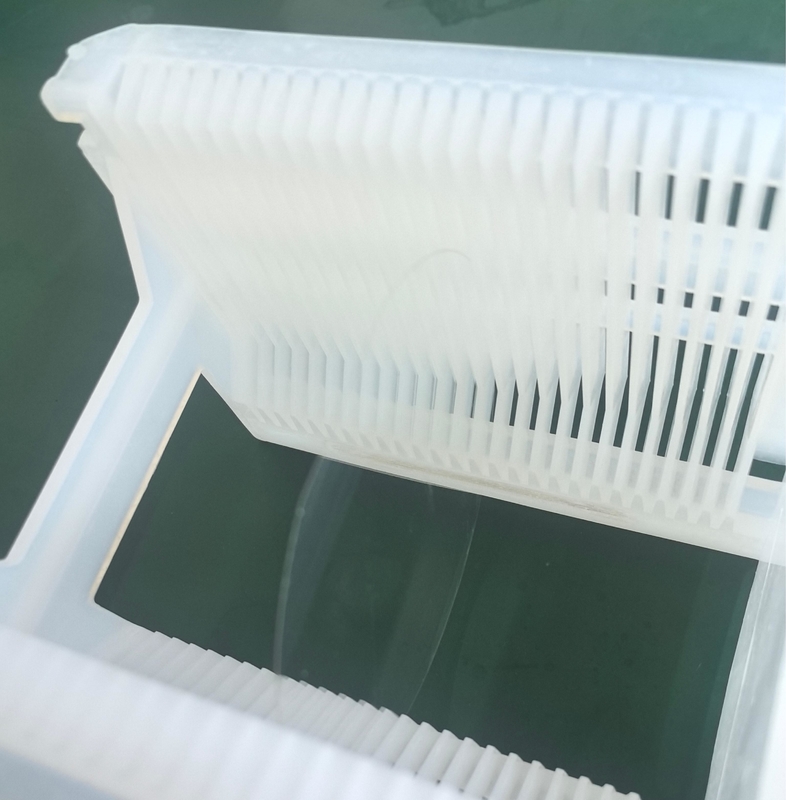

Packaging Details: Cassette/ Jar package, vaccum sealed
Delivery Time: 1-4 weeks
Payment Terms: T/T
Supply Ability: 20000 pcs/Month
Get Best Price Contact Now

Detail Information

Material: Fused Silica, Fused Quartz Wafer Brand: JGS2 JGS1
Diameter: 50.8mm,76.2mm, 100mm, 150mm, 200mm Thickness: 350um, 500um, 1000um
TTV: <5µm Ra Roughness: <1nm / GC#1000
Surface: Double Side Polish, Single Side Polish, Lap Application: Semiconductor, MEMS
Highlight:

Thermal Stability Fused Silica Wafers

,

Precision Lap Surface Fused Silica Wafers

,

Unmatched Optical Clarity Fused Silica Wafers

Product Description

Unmatched Optical Clarity and Thermal Stability with Our Fused Silica Wafers for Advanced Applications



our premium Fused Silica, the ultimate material for demanding optical and high-temperature applications. Renowned for its exceptional clarity, low thermal expansion, and ultra-high purity, our Fused Silica sets the benchmark for performance in a wide range of industries.

Whether you're developing cutting-edge optics for aerospace, precision lenses for medical equipment, or components for high-energy laser systems, our Fused Silica delivers unmatched optical transmission, low absorption, and resistance to thermal shock. Its exceptional mechanical stability and chemical inertness ensure long-lasting reliability in the most challenging environments.

Choose our Fused Silica to elevate your projects to new levels of precision and performance. Our rigorous quality control and advanced manufacturing techniques guarantee the highest standards. Contact us today to discover how our Fused Silica can revolutionize your applications and drive innovation in your field.

Parameter Description
Material Fused Quartz JGS2
Composition SiO<sub>2</sub> (Silicon Dioxide)
Transmission Excellent transparency in the ultraviolet (UV) to infrared (IR) range
Refractive Index 1.4585 (at 587.6 nm)
Density 2.203 g/cm<sup>3</sup>
Thermal Expansion Coefficient 5.5 x 10<sup>-7</sup> K<sup>-1</sup>
Operating Temperature Range Up to 1,200°C
Chemical Resistance Resistant to most acids, alkalis, and organic solvents
Surface Finish Single or double-sided polished
Surface Quality Typically specified as per industry standards (e.g., MIL-O-13830)
Dimensional Tolerance Customizable as per customer requirements
Wafer Sizes Available in various diameters: 2", 3", 4", 6", 8", and larger
Wafer Thickness Typically ranges from a few millimeters to several millimeters
Applications Optics, lasers, semiconductors, scientific instruments, etc.



Unmatched Optical Clarity And Thermal Stability With Our Fused Silica Wafers For Advanced Applications 0Unmatched Optical Clarity And Thermal Stability With Our Fused Silica Wafers For Advanced Applications 1Unmatched Optical Clarity And Thermal Stability With Our Fused Silica Wafers For Advanced Applications 2





Fused Quartz Fabrication Specifications

Parameter

JGS1

JGS2

JGS3

Maximum Size

<Φ200mm

<Φ300mm

<Φ200mm

Transmission Range (Medium transmission ratio)

0.17~2.10um (Tavg>90%)

0.26~2.10um (Tavg>85%)

0.185~3.50um (Tavg>85%)

OH- Content

1200 ppm

150 ppm

5 ppm

Fluorescence

(ex 254nm)

Virtually Free

Strong v-b

Strong V-B

Impurity Content

5 ppm

20-40 ppm

40-50 ppm

Birefringence Constant

2-4 nm/cm

4-6 nm/cm

4-10 nm/cm

Melting Method

Synthetic CVD

Oxy-hydrogen melting

Electrical melting

Applications

Laser substrate: Window, lens, prism, mirror...

Semiconductor and high temperature window

IR & UV
substrate





Unmatched Optical Clarity And Thermal Stability With Our Fused Silica Wafers For Advanced Applications 3



Unmatched Optical Clarity And Thermal Stability With Our Fused Silica Wafers For Advanced Applications 4

FAQs:



  1. Q: What are the products you mainly work on?

A: We look at ourselves as the piezo wafer specialist. We are the very first to work with Single Crystal Quartz in China about 30 years ago. Then gradually we step in the field of LiNbO3, LiTaO3, Quartz glass, LGS, CTGS etc. Especially, if you are looking for a piezo quartz supplier, we are the ultimate choice! We export millions of quartz blanks each year because we master the AT, SC and IT cuts with superior angle precision.



  1. Q: Can you accept product customization?

A: Yes, of course. We can fabricate as per your request. In addition, we are so experienced with piezo wafers that we can provide you relevant suggestions if you are not 100% sure about your choice. Besides, we do have some standard wafers in stock, please check with us.



  1. Q: Can you deliver the goods via our courier agent?

A: Yes, we would suggest you go with the courier agent you are most familiar with (DHL, FedEX, UPS etc.). We can ship via your account. And, of course, we will pack the products safely in acceptable size to help you save the shipping cost. If you need us to take care of the freight, it’s also not a problem. We also have good discount with the international courier companies.



  1. Q: How can you guarantee we get what we want safely?

A: The wafer products are fragile and sometimes expensive. The last thing, as the manufacturer, we want to see is the products we make were damaged during courier. As a result, we will pack the wafers adequately and put them in a proper carton filled with buffer sponge. However, accidents are inevitable sometimes. So, please follow the “Acceptance check” steps shown in the drawings below. If the unwanted happened, we will either give the replenishment or refund if you follow the checking steps.



  1. Q: Can we visit your factory?

A: Sure. Factory inspection is important for large quantity purchase and long-term cooperation. Face to face discussion is what we mostly confident with. During the past years, big names around the world have witnessed our progress in factory build-up. These days, due to the Covid-19 pandemic, we also had the experience of videoconferencing with global buyers.





Acceptance Check

  • The product is fragile. We have adequately packed it and labeled it fragile. We deliver through excellent domestic and international express companies to ensure transportation quality.
  • After receiving the goods, please handle with care and check whether the outer carton is in good condition. Carefully open the outer carton and check whether the packing boxes are in alignment. Take a picture before you take them out.
  • Please open the vacuum package in a clean room when the products are to be applied.
  • If the products are found damaged during courier, please take a picture or record a video immediately. DO NOT take the damaged products out of the packaging box! Contact us immediately and we will solve the problem well.
