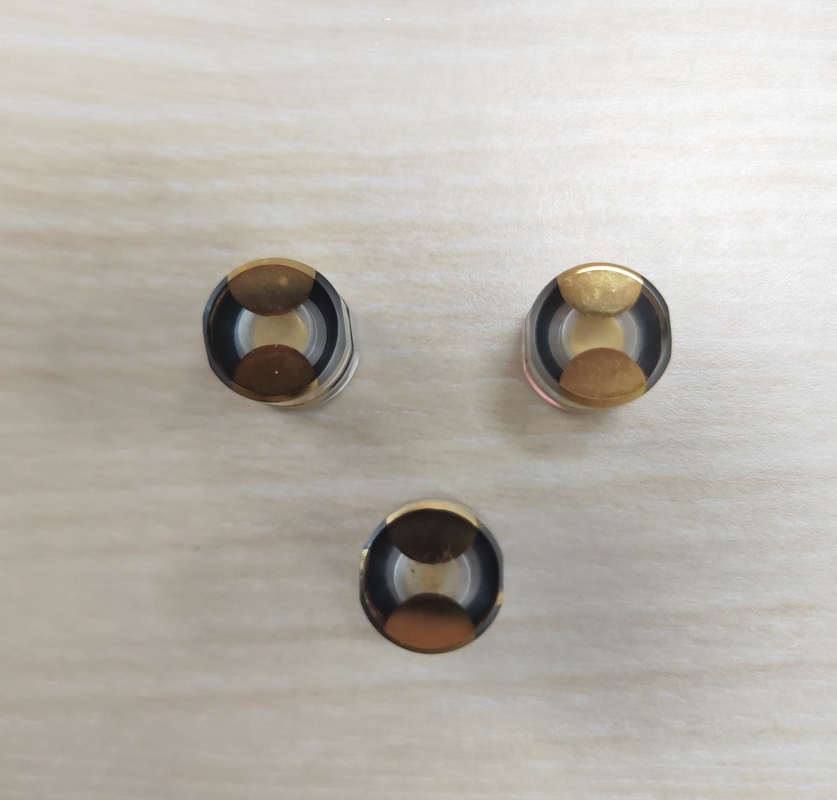

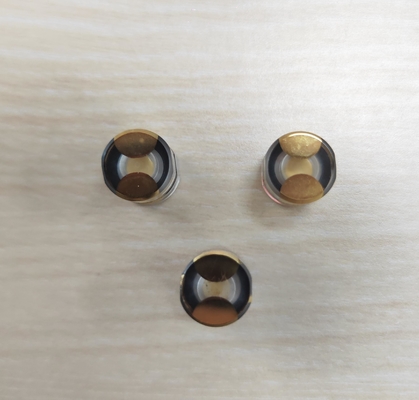

Unmatched Thermal Stability And Chemical Resistance Piezoelectric Wafer With Quartz End Caps For High-Temperature And High-Pressure Applications
Product Details:
| Place of Origin: | China |
| Brand Name: | CSIMC |
| Certification: | ISO:9001, ISO:14001 |
| Model Number: | Quartz Sensor |
Payment & Shipping Terms:
| Minimum Order Quantity: | 20 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Cassette/ Jar package, vaccum sealed |
| Delivery Time: | 1-4 weeks |
| Payment Terms: | T/T |
| Supply Ability: | 50000 pcs/Month |
|
Detail Information |
|||
| Product: | Quartz Endcap | Material: | Single Crystal Quartz |
|---|---|---|---|
| Orientation: | AT Quartz Blank | Coating: | Au And Cr |
| Sealing: | Glass Frit | Applications: | Quartz Pressure Sensor |
| Highlight: | Chemical Resistance Piezoelectric Wafer,Quartz End Caps Piezoelectric Wafer |
||
Product Description
Unmatched Thermal Stability and Chemical Resistance with Quartz End Caps for High-Temperature and High-Pressure Applications
our state-of-the-art Quartz End Caps, the ultimate solution for sealing and protecting your sensitive devices with elegance and efficiency. Crafted from high-purity quartz, these end caps offer unmatched chemical resistance, thermal stability, and optical clarity, making them ideal for a myriad of applications in the electronics, photonics, and medical industries.
Our Quartz End Caps feature precision machining and seamless integration capabilities, ensuring a perfect fit and optimal performance in your systems. Whether you're safeguarding delicate sensors, enhancing the performance of optical fibers, or developing cutting-edge medical instruments, our end caps provide unparalleled reliability and durability.
Choose our Quartz End Caps for uncompromising quality and innovative design. Elevate your sealing solutions to new standards and experience the difference that precision engineering can make. Contact us today to learn more about how our Quartz End Caps can meet and exceed your expectations.
| Materials | Single Quartz Blanks (both Piezo / Optical grade) |
| Materials | Both Pure Z and Y Bar available |
| Synthetic Q-Value | Min 1.8x10^6, 2.4x10^6 to 3.0x10^6 IEC standards |
| ECD | Max 100/c㎡, Max 300/c㎡; or per Customer’s request |
| Inclusions Density | I, II, III Grades |
| Cuts Type ( orientation) | AT, BT, CT, ET ,DT, GT, NT, FC, SC, IT, AC ,BC ,ST .TS MT ,NT RT …, etc per requested |
| Angle Tolerance(±) | Theta Angle: ±5″, ±10″, ±15″, ±30″, ±1′, ±2′, … , etc |
| Phi Angle:±5′, ±10′, ±15′, ±30′, … , etc | |
| Size For Round endcaps | From 10.0mm to 15.00mm (with flat) , 13.80mm as typical one |
| Height / Thickness | 5.00-7.00 mm per requested |
| Flat | Per requested the flat shall be perpendicular to X axis within ±10 deg |
| Surface Finishing | #1000(9u); #2000(7u); #3000(5u); #4000(3u) (Sic); Polished(Cerium oxide)& etched Std |
Packing and Shipping:
Our Piezoelectric Quartz Endcaps are carefully packed in a sealed and secure container with an anti-static layer and moisture barrier to ensure that it arrives securely and undamaged.
The container is then sealed and labeled with a unique identification number for tracking purposes.
We offer both domestic and international shipping options, with the latter requiring additional paperwork. We also provide a tracking number for all domestic shipments.
For further inquiries about our packaging and shipping services, please contact our customer service team.
