• 2" 3" 4" 6" 8" High Performance Fused Silica Wafer for Semiconductor Manufacturing
2" 3" 4" 6" 8" High Performance Fused Silica Wafer for Semiconductor Manufacturing

2" 3" 4" 6" 8" High Performance Fused Silica Wafer for Semiconductor Manufacturing

Product Details:

Place of Origin: China
Brand Name: CSIMC
Certification: ISO:9001, ISO:14001
Model Number: Fused Silica, Fused Quartz

Payment & Shipping Terms:

Minimum Order Quantity: 10 pcs
Price: Negotiable
Packaging Details: Cassette/ Jar package, vaccum sealed
Delivery Time: 1-4 weeks
Payment Terms: T/T
Supply Ability: 20000 pcs/Month
Get Best Price Contact Now

Detail Information

Material: Fused Silica, Fused Quartz Brand: JGS1 JGS2 JGS3
Diameter: 50.8mm,76.2mm, 100mm, 150mm, 200mm Thickness: 200um 350um, 500um, 1000um
PLTV(<0.5um): ≥95%(5mm*5mm) Ra Roughness: <1nm / GC#1000
Surface: DSP SSP Application: Semiconductor, MEMS
Highlight:

Semiconductor Manufacturing Fused Silica Wafer

,

8'' Fused Silica Wafer

,

High Performance Fused Silica Wafer

Product Description

2" 3" 4" 6" 8"High-Performance Fused Silica Wafer for Semiconductor Manufacturing



our Fused Silica Wafers, the epitome of precision and performance for cutting-edge applications in photonics, semiconductors, and beyond. Crafted from high-purity fused silica, these wafers offer unparalleled optical clarity, thermal stability, and mechanical robustness.

Our Fused Silica Wafers exhibit excellent transmission across a broad spectral range, making them ideal for high-precision optical components and systems. Their low coefficient of thermal expansion ensures dimensional stability under extreme temperature conditions, while their high resistance to mechanical stress and chemical attack guarantees long-term reliability.

Discover the innovation and versatility of our Fused Silica Wafers. Contact us today to explore how these superior materials can elevate your projects, driving optical performance, precision, and durability to new heights in your industry.

Parameter Description
Material Fused Quartz JGS2
Composition SiO<sub>2</sub> (Silicon Dioxide)
Transmission Excellent transparency in the ultraviolet (UV) to infrared (IR) range
Refractive Index 1.4585 (at 587.6 nm)
Density 2.203 g/cm<sup>3</sup>
Thermal Expansion Coefficient 5.5 x 10<sup>-7</sup> K<sup>-1</sup>
Operating Temperature Range Up to 1,200°C
Chemical Resistance Resistant to most acids, alkalis, and organic solvents
Surface Finish Single or double-sided polished
Surface Quality Typically specified as per industry standards (e.g., MIL-O-13830)
Dimensional Tolerance Customizable as per customer requirements
Wafer Sizes Available in various diameters: 2", 3", 4", 6", 8", and larger
Wafer Thickness Typically ranges from a few millimeters to several millimeters
Applications Optics, lasers, semiconductors, scientific instruments, etc.

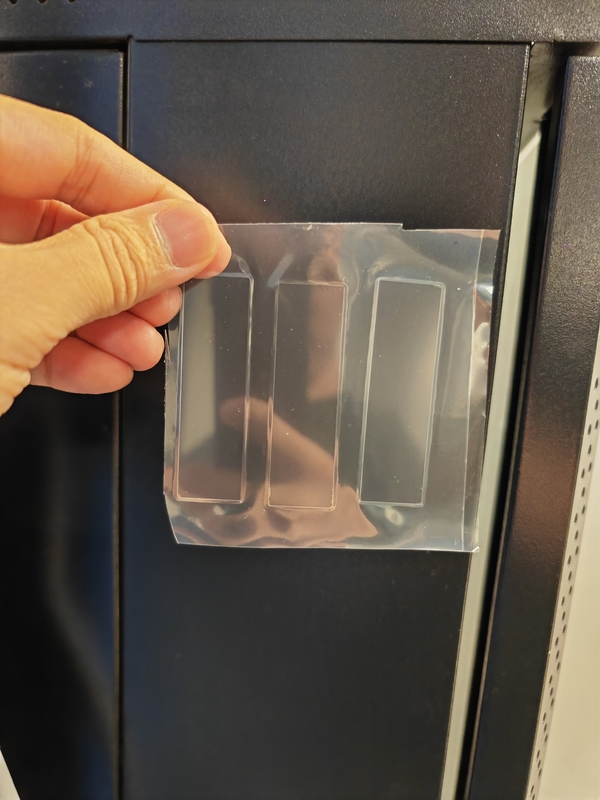

2" 3" 4" 6" 8" High Performance Fused Silica Wafer for Semiconductor Manufacturing 02" 3" 4" 6" 8" High Performance Fused Silica Wafer for Semiconductor Manufacturing 12" 3" 4" 6" 8" High Performance Fused Silica Wafer for Semiconductor Manufacturing 2





Fused Quartz Fabrication Specifications

Parameter

JGS1

JGS2

JGS3

Maximum Size

<Φ200mm

<Φ300mm

<Φ200mm

Transmission Range (Medium transmission ratio)

0.17~2.10um (Tavg>90%)

0.26~2.10um (Tavg>85%)

0.185~3.50um (Tavg>85%)

OH- Content

1200 ppm

150 ppm

5 ppm

Fluorescence

(ex 254nm)

Virtually Free

Strong v-b

Strong V-B

Impurity Content

5 ppm

20-40 ppm

40-50 ppm

Birefringence Constant

2-4 nm/cm

4-6 nm/cm

4-10 nm/cm

Melting Method

Synthetic CVD

Oxy-hydrogen melting

Electrical melting

Applications

Laser substrate: Window, lens, prism, mirror...

Semiconductor and high temperature window

IR & UV
substrate





2" 3" 4" 6" 8" High Performance Fused Silica Wafer for Semiconductor Manufacturing 3



2" 3" 4" 6" 8" High Performance Fused Silica Wafer for Semiconductor Manufacturing 4

FAQs:



  1. Q: What are the products you mainly work on?

A: We look at ourselves as the piezo wafer specialist. We are the very first to work with Single Crystal Quartz in China about 30 years ago. Then gradually we step in the field of LiNbO3, LiTaO3, Quartz glass, LGS, CTGS etc. Especially, if you are looking for a piezo quartz supplier, we are the ultimate choice! We export millions of quartz blanks each year because we master the AT, SC and IT cuts with superior angle precision.



  1. Q: Can you accept product customization?

A: Yes, of course. We can fabricate as per your request. In addition, we are so experienced with piezo wafers that we can provide you relevant suggestions if you are not 100% sure about your choice. Besides, we do have some standard wafers in stock, please check with us.



  1. Q: Can you deliver the goods via our courier agent?

A: Yes, we would suggest you go with the courier agent you are most familiar with (DHL, FedEX, UPS etc.). We can ship via your account. And, of course, we will pack the products safely in acceptable size to help you save the shipping cost. If you need us to take care of the freight, it’s also not a problem. We also have good discount with the international courier companies.



  1. Q: How can you guarantee we get what we want safely?

A: The wafer products are fragile and sometimes expensive. The last thing, as the manufacturer, we want to see is the products we make were damaged during courier. As a result, we will pack the wafers adequately and put them in a proper carton filled with buffer sponge. However, accidents are inevitable sometimes. So, please follow the “Acceptance check” steps shown in the drawings below. If the unwanted happened, we will either give the replenishment or refund if you follow the checking steps.



  1. Q: Can we visit your factory?

A: Sure. Factory inspection is important for large quantity purchase and long-term cooperation. Face to face discussion is what we mostly confident with. During the past years, big names around the world have witnessed our progress in factory build-up. These days, due to the Covid-19 pandemic, we also had the experience of videoconferencing with global buyers.





Acceptance Check

  • The product is fragile. We have adequately packed it and labeled it fragile. We deliver through excellent domestic and international express companies to ensure transportation quality.
  • After receiving the goods, please handle with care and check whether the outer carton is in good condition. Carefully open the outer carton and check whether the packing boxes are in alignment. Take a picture before you take them out.
  • Please open the vacuum package in a clean room when the products are to be applied.
  • If the products are found damaged during courier, please take a picture or record a video immediately. DO NOT take the damaged products out of the packaging box! Contact us immediately and we will solve the problem well.
