Borofloat 33 Glass Substrate For High-Temperature Applications And Precision Operations Epitome Of Precision Durability In Glass Solutions
Product Details:
| Place of Origin: | China |
| Brand Name: | CSIMC |
| Certification: | ISO:9001, ISO:14001 |
| Model Number: | Fused Silica, Fused Quartz |
Payment & Shipping Terms:
| Minimum Order Quantity: | 5 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Cassette/ Jar package, vaccum sealed |
| Delivery Time: | 1-4 weeks |
| Payment Terms: | T/T |
| Supply Ability: | 20000 pcs/Month |
|
Detail Information |
|||
| Material Name: | Borofloat Glass | Brand: | Schott Brorofloat 33 |
|---|---|---|---|
| Diameter: | 76.2mm 100mm 150mm 200mm | Thickness: | 200um 350um 500um 1000um |
| Edge: | C Shape | Surface: | DSP SSP |
| Use: | Semiconductor, MEMS | ApSemiconductor, MEMSplication: | Electronics, Optics, And Semiconductors |
| Highlight: | High Temperature Glass Substrate,100mm Borofloat 33 Glass Substrate,Precision Glass Substrate |
||
Product Description
Borofloat 33 Glass Substrate for High-Temperature Applications and Precision Operations The Epitome of Precision Durability in Glass Solutions
Borofloat 33 Glass Substrate, the cornerstone of innovation in high-tech applications demanding unparalleled optical clarity, thermal stability, and chemical resistance. This premium glass substrate is engineered to excel in diverse fields, from flat panel displays and semiconductor processing to scientific instrumentation and aerospace technology.
Borofloat 33 Glass Substrate boasts exceptional flatness and parallelism, ensuring precise alignment and optical performance in your most demanding applications. Its ultra-low coefficient of thermal expansion provides outstanding dimensional stability across a wide temperature range, while its high chemical durability shields against corrosive environments.
Unlock the full potential of your projects with Borofloat 33 Glass Substrate. Contact us today to discover how this superior material can enhance your designs, driving precision, reliability, and optical clarity to new limits in your industry.
Borofloat 33 Glass Wafer Parameters
| Material | BOROFLOAT 33 |
| Density (@ 25°C/77°F) | 2.23 g/cm3 |
| Modulus of Elasticity | 63 kN/mm2 |
| Knoop Hardness HK 0.1/20 | 480 |
| Poisson’s Ratio | 0.2 |
| Dielectric Constant (@ 1 MHz & 25°C) | 4.6 |
| Loss Tangent (@ 1 MHz & 25°C) | 37 x 10-4 |
| Dielectric Strength(@ 50 Hz & 25°C) | 16 kV/mm |
| Refractive Index (nd) | 1.472 |
| Dispersion (nF - nC) | 71.9 x 10-4 |
Borofloat 33 Glass Wafer Specifications
| Specification | 3” | 4” | 5" | 6" | 8" |
| Diameter | 76.2mm | 100mm | 125mm | 150mm | 200mm |
| Tol(±) | <0.1~0.25 mm | ||||
| Thickness | >0.10mm | >0.10mm | >0.30mm | >0.30mm | >0.30mm |
| Primary Flat | 22mm | 32.5mm | 42.5mm | 57.5mm | Notch |
| Notch | |||||
| TTV | <8um | <10um | <15um | <20um | <30um |
| Bow | ±20um | ±25um | ±40um | ±40um | ±60um |
| Warp | <30um | <40um | <50um | <50um | <60um |
| PLTV(<0.5um) | ≥95%(5mm*5mm) | ||||
| Transmittance | UV, Optical, IR or Custom option | ||||
| Edge Rounding | Compliant with SEMI M1.2 Standard/refer to IEC62276 | ||||
| Surface Type | Single Side Polished /Double Sides Polished | ||||
| Polished side Ra | <1.0nm or specific per requested | ||||
| Back Side Criteria | General is 0.2-0.5µm or as customized | ||||
| Appearance | Contamination | None | |||
| Particles>0.3µm | <=30 | ||||
| Saw Marks, striations | None | ||||
| Scratch | None | ||||
| Cracks, saw marks, stains | None | ||||

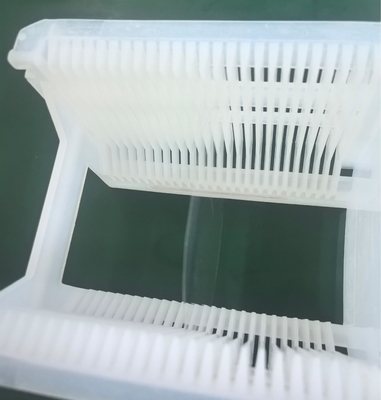

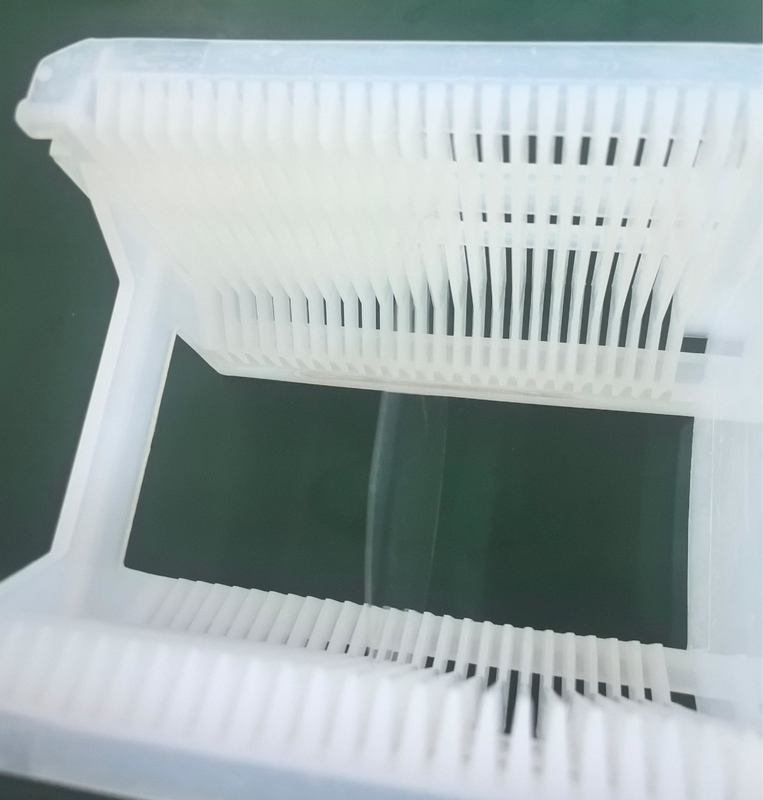

Glass Wafer Photos
FAQs:
- Q: What are the products you mainly work on?
A: We look at ourselves as the piezo wafer specialist. We are the very first to work with Single Crystal Quartz in China about 30 years ago. Then gradually we step in the field of LiNbO3, LiTaO3, Quartz glass, LGS, CTGS etc. Especially, if you are looking for a piezo quartz supplier, we are the ultimate choice! We export millions of quartz blanks each year because we master the AT, SC and IT cuts with superior angle precision.
- Q: Can you accept product customization?
A: Yes, of course. We can fabricate as per your request. In addition, we are so experienced with piezo wafers that we can provide you relevant suggestions if you are not 100% sure about your choice. Besides, we do have some standard wafers in stock, please check with us.
- Q: Can you deliver the goods via our courier agent?
A: Yes, we would suggest you go with the courier agent you are most familiar with (DHL, FedEX, UPS etc.). We can ship via your account. And, of course, we will pack the products safely in acceptable size to help you save the shipping cost. If you need us to take care of the freight, it’s also not a problem. We also have good discount with the international courier companies.
- Q: How can you guarantee we get what we want safely?
A: The wafer products are fragile and sometimes expensive. The last thing, as the manufacturer, we want to see is the products we make were damaged during courier. As a result, we will pack the wafers adequately and put them in a proper carton filled with buffer sponge. However, accidents are inevitable sometimes. So, please follow the “Acceptance check” steps shown in the drawings below. If the unwanted happened, we will either give the replenishment or refund if you follow the checking steps.
- Q: Can we visit your factory?
A: Sure. Factory inspection is important for large quantity purchase and long-term cooperation. Face to face discussion is what we mostly confident with. During the past years, big names around the world have witnessed our progress in factory build-up. These days, due to the Covid-19 pandemic, we also had the experience of videoconferencing with global buyers.
Acceptance Check
- The product is fragile. We have adequately packed it and labeled it fragile. We deliver through excellent domestic and international express companies to ensure transportation quality.
- After receiving the goods, please handle with care and check whether the outer carton is in good condition. Carefully open the outer carton and check whether the packing boxes are in alignment. Take a picture before you take them out.
- Please open the vacuum package in a clean room when the products are to be applied.
- If the products are found damaged during courier, please take a picture or record a video immediately. DO NOT take the damaged products out of the packaging box! Contact us immediately and we will solve the problem well.
