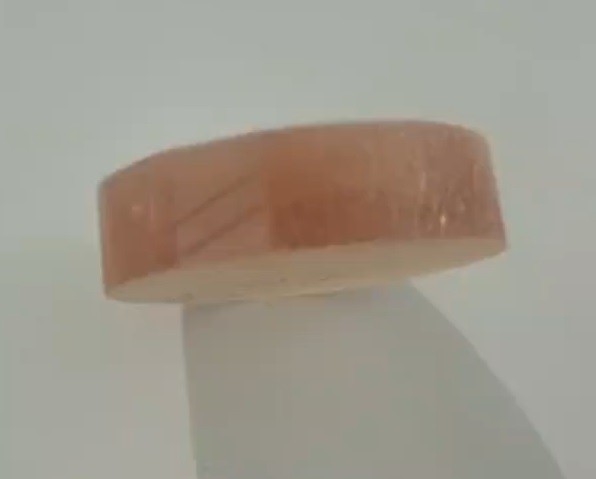

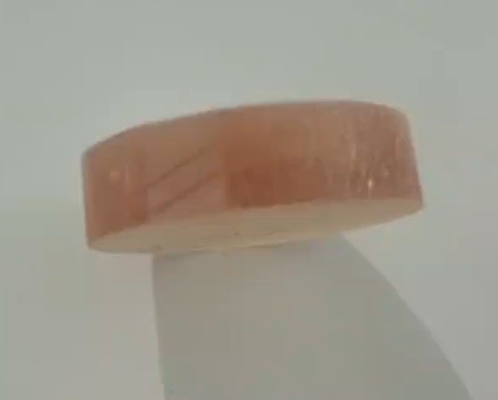

2" 3" Revolutionize Your Applications With High-Performance Stoichiometric Lithium Tantalate Wafers
Product Details:
| Place of Origin: | China |
| Brand Name: | CSIMC |
| Certification: | ISO:9001, ISO:14001 |
| Model Number: | Lithium Tantalate (LiTaO3) |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Cassette/ Jar package, vaccum sealed |
| Delivery Time: | 1-4 weeks |
| Payment Terms: | T/T |
| Supply Ability: | 10000 pcs/Month |
|
Detail Information |
|||
| Product: | Stoichiometric LiTaO3 Wafer | Grade: | Optical |
|---|---|---|---|
| Orientation: | X-CUT Z-CUT | Diameter: | 50.8mm 76.2mm |
| Thickness: | 0.35mm, 0.5mm As Required | Surface Type: | DSP, SSP, Lap |
| Primary Flat: | 22±2mm, 32.5±2mm | Application: | Optical Devices |
| Highlight: | High Performance Lithium Tantalate Wafers,3" Stoichiometric Lithium Tantalate Wafers |
||
Product Description
2" 3" Revolutionize Your Applications with High-Performance Stoichiometric Lithium Tantalate Wafers
our Stoichiometric Lithium Tantalate Wafers, the ultimate solution for demanding applications requiring exceptional piezoelectric, ferroelectric, and optical properties. These wafers, crafted from the highest purity stoichiometric lithium tantalate, offer unparalleled performance in sectors ranging from photonics to ultrasound imaging.
Our Stoichiometric Lithium Tantalate Wafers exhibit impeccable crystalline quality and uniformity, ensuring optimal electro-optic modulation, high frequency stability, and low loss in photonic devices. Their robust piezoelectric effect makes them ideal for high-precision sensors and actuators, while their ferroelectric properties enable efficient energy storage and conversion.
Discover the innovation and performance of our Stoichiometric Lithium Tantalate Wafers. Contact us today to explore how these superior materials can transform your projects, driving reliability, efficiency, and precision to new heights in your industry.
|
Diameter |
76.2±0.2mm |
100±0.2mm |
150±0.2mm |
||||
|
Primary Flat |
22±1mm |
32±1mm |
47.5mm, 57.5mm, Notch |
||||
|
Orientation |
36°Y, 42°Y, X-112°Y, Y, Z |
||||||
|
Thickness |
0.07mm~1.0mm |
0.1mm~1.0mm |
0.35mm~1.0mm |
||||
|
Surface finish |
Single / Double side polish / Double side lapped |
||||||
|
TTV |
< 1~5µm |
||||||
|
BOW |
± (20µm ~40um ) |
||||||
|
Warp |
<= 20µm ~ 50µm |
||||||
|
LTV (5mmx5mm) |
<1.5 um |
||||||
|
PLTV(<0.5um) |
≥98% (5mm*5mm) with 2mm edge excluded |
||||||
|
Polished side Ra |
Roughness Ra<=5A |
||||||
|
Back Side Criteria |
Roughness Ra:0.5-1.0µm, GC#1000 |
||||||
|
Scratch & Dig (S/D) |
20/10, 40/20, 60/40 |
||||||
|
Edge Profile |
Compl't with SEMI M1.2@with GC800# .regular at C typed |
||||||
|
Cracks, saw marks, stains |
None |
||||||
|
Crystal Structure |
Trigonal, Space group R3c, Point group 3m |
|
Cell Parameters |
a=5.154Å, c=13.781Å |
|
Melting Point |
1650℃ |
|
Curie Temperature |
607℃ |
|
Mohs Hardness |
5.5 |
|
Density |
7.46g/cm3 |
|
Dielectric Constants |
ε11/ε0:51.7 |
|
ε33/ε0:44.5 |
FAQs:
- Q: What are the products you mainly work on?
A: We look at ourselves as the piezo wafer specialist. We are the very first to work with Single Crystal Quartz in China about 30 years ago. Then gradually we step in the field of LiNbO3, LiTaO3, Quartz glass, LGS, CTGS etc. Especially, if you are looking for a piezo quartz supplier, we are the ultimate choice! We export millions of quartz blanks each year because we master the AT, SC and IT cuts with superior angle precision.
- Q: Can you accept product customization?
A: Yes, of course. We can fabricate as per your request. In addition, we are so experienced with piezo wafers that we can provide you relevant suggestions if you are not 100% sure about your choice. Besides, we do have some standard wafers in stock, please check with us.
- Q: Can you deliver the goods via our courier agent?
A: Yes, we would suggest you go with the courier agent you are most familiar with (DHL, FedEX, UPS etc.). We can ship via your account. And, of course, we will pack the products safely in acceptable size to help you save the shipping cost. If you need us to take care of the freight, it’s also not a problem. We also have good discount with the international courier companies.
- Q: How can you guarantee we get what we want safely?
A: The wafer products are fragile and sometimes expensive. The last thing, as the manufacturer, we want to see is the products we make were damaged during courier. As a result, we will pack the wafers adequately and put them in a proper carton filled with buffer sponge. However, accidents are inevitable sometimes. So, please follow the “Acceptance check” steps shown in the drawings below. If the unwanted happened, we will either give the replenishment or refund if you follow the checking steps.
- Q: Can we visit your factory?
A: Sure. Factory inspection is important for large quantity purchase and long-term cooperation. Face to face discussion is what we mostly confident with. During the past years, big names around the world have witnessed our progress in factory build-up. These days, due to the Covid-19 pandemic, we also had the experience of videoconferencing with global buyers.
Acceptance Check
- The product is fragile. We have adequately packed it and labeled it fragile. We deliver through excellent domestic and international express companies to ensure transportation quality.
- After receiving the goods, please handle with care and check whether the outer carton is in good condition. Carefully open the outer carton and check whether the packing boxes are in alignment. Take a picture before you take them out.
- Please open the vacuum package in a clean room when the products are to be applied.
- If the products are found damaged during courier, please take a picture or record a video immediately. DO NOT take the damaged products out of the packaging box! Contact us immediately and we will solve the problem well.
