3" 4" 6"Single Crystal Quartz Wafers For High Temperature Applications Customized Orientation Options With 3 Inch And 4 Inch Sizes
Product Details:
| Place of Origin: | China |
| Brand Name: | CSIMC |
| Certification: | ISO:9001 |
| Model Number: | Single Crystal Quartz |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Cassette / Jar, put in a carton with PE foam. |
| Delivery Time: | 1-4 weeks |
| Payment Terms: | T/T |
| Supply Ability: | 100000 pcs / Month |
|
Detail Information |
|||
| Product: | Single Crystal Quartz | Diameter: | 3" 4" 6" |
|---|---|---|---|
| Cut Angle: | AT-cut, ST-cut, Z-cut, X-cut | Thickness: | 0.2mm 0.25mm 0.35mm, 0.5mm,1.0mm |
| Surface: | SSP DSP | Application: | MEMS, SAW Application |
| Inclusion: | Ia, Ib, I, II, III | Growth: | Hydrothermal Growth |
| Highlight: | 3 Inch Single Crystal Quartz Wafers,Customized Orientation Single Crystal Quartz Wafers,High Temperature Single Crystal Quartz Wafers |
||
Product Description

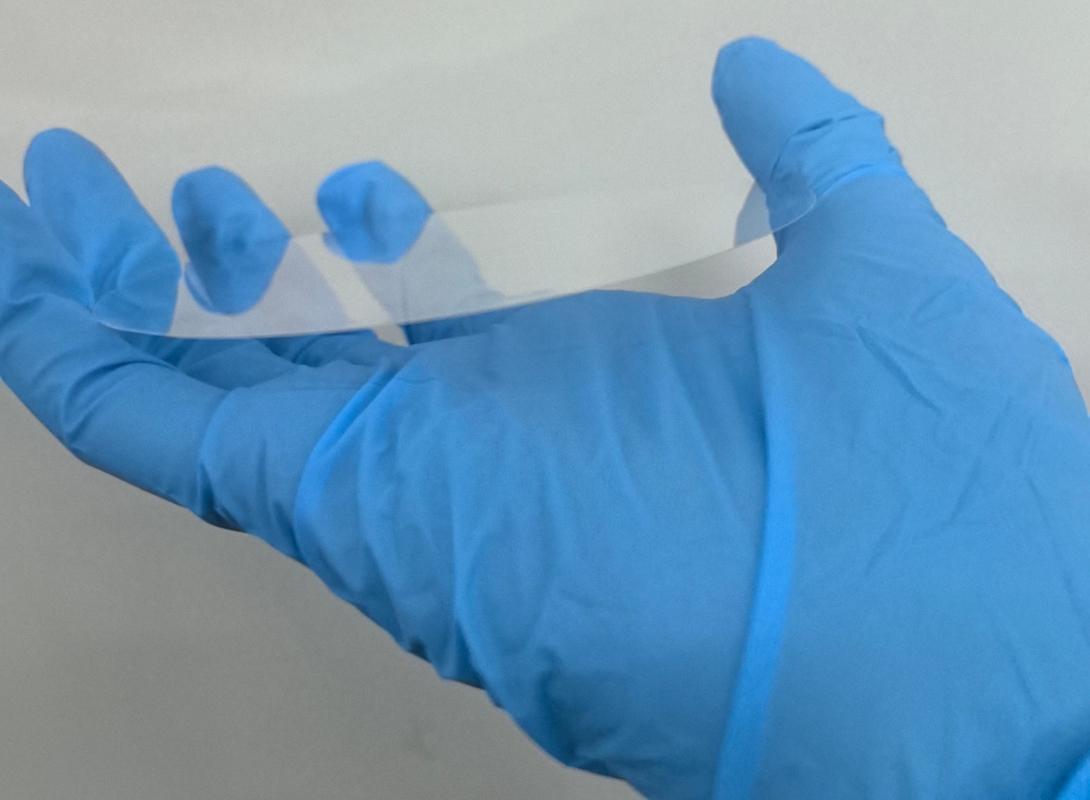

3" 4" 6"Single Crystal Quartz Wafers for High Temperature Applications Customized Orientation Options with 3 Inch and 4 Inch Sizes
our Single Crystal Quartz Wafers, the benchmark for precision, stability, and reliability in high-tech applications. These wafers leverage the exceptional properties of single crystal quartz, including its outstanding piezoelectricity, low thermal expansion coefficient, and excellent optical transparency, to deliver unparalleled performance in sectors like electronics, optics, and oscillators.
Crafted with meticulous attention to detail, our Single Crystal Quartz Wafers exhibit impeccable crystalline quality and surface perfection, ensuring minimal scatter and maximum efficiency in optical devices. Their piezoelectric effect enables precision timing and sensing in electronics, while their low thermal expansion makes them ideal for applications requiring extreme stability.
Experience the innovation and precision of our Single Crystal Quartz Wafers. Contact us today to learn how these superior materials can elevate your projects, driving performance and reliability to new levels in your industry.
| Single Crystal Quartz Material Properties | |
| Purity | Optical grade: 99.99% |
| Crystal Structure and lattice parameters |
Hexagonal a= 4.914 Å c = 5.405 Å |
| Growth Method | Hydrothermal method |
| Hardness | 7.0 Mohs |
| Density | 2.684 g/cm3 |
| Melt Point | 1610 deg C (phase transition point: 573.1 °C) |
| Specific heat | 0.18 cal/g |
| Thermoelectric Constant | 1200 mV / °C @ 300 °C |
| Thermal conductivity | 0.0033 cal/cm/ °C |
| Thermal expansion coefficient, (CTE) (x10^-6/ K) |
perpendicular to Z axis: 13.71 parallel to Z axis: 7.48 |
| Refractive Index | 1.544 |
|
Q value Acoustic velocity, SAW Frequency constant, BAW Piezoelectric coupling, |
1.8 x 10^6; 2.4 x 10^6, 3.0 x 10^6 3160 ( m/sec ) 1661 ( kHz/mm ) K2 (%) BAW: 0.65 SAW: 0.14 |
| Inclusion | IEC Grade II |
| Diameter | 3”(76.2mm) | 4”(100mm) | 6”(150mm) | 8”(200mm) |
| Thickness | 0.08mm Min-up | 0.10mm Min-up | 0.20mm Min -up | 0.35mm Min- |
| Primary Flat | 22mm | 32mm | 42.5mm | 57.5mm or notch |
| Surface | LTV (5mmx5mm) | <1.5µm | TTV | <1.5~3 µm |
| Bow | -30<bow<30 | Warp | <40µm | |
| Surface Type | SSP / DSP | Edge Criteria | R=0.2mm or Bullnose | |
| Polished side Ra | <0.5nm or per requested | Back Side Criteria | 0.2-0.5µm or as customized |
