Enhance Your Optical And Electronic Devices With High Performance Piezoelectric Wafer End Caps
Product Details:
| Place of Origin: | China |
| Brand Name: | CSIMC |
| Certification: | ISO:9001, ISO:14001 |
| Model Number: | Quartz Sensor |
Payment & Shipping Terms:
| Minimum Order Quantity: | 20 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Cassette/ Jar package, vaccum sealed |
| Delivery Time: | 1-4 weeks |
| Payment Terms: | T/T |
| Supply Ability: | 50000 pcs/Month |
|
Detail Information |
|||
| Product Name: | Quartz Endcap | Material: | α Quartz |
|---|---|---|---|
| Orientation: | AT-Cut | Coating: | Au And Cr |
| Sealing: | Glass Frit | Applications: | Quartz Pressure Sensor |
| Highlight: | Optical Piezoelectric Wafer End Caps,Electronic Devices Piezoelectric Wafer End Caps,High Performance Piezoelectric Wafer End Caps |
||
Product Description
Enhance Your Optical and Electronic Devices with Our High-Performance Piezoelectric Wafer End Caps
our cutting-edge Quartz Endcaps, the ultimate solution for sealing and protecting critical components in high-performance applications. Crafted from the purest quartz, these endcaps offer unmatched thermal stability, chemical resistance, and optical clarity, making them indispensable in industries ranging from semiconductors to aerospace.
Our Quartz Endcaps are designed to withstand extreme temperatures and harsh environments, ensuring long-term reliability and performance in even the most demanding scenarios. Their precision engineering guarantees a perfect fit and seal, minimizing leakage and maximizing efficiency.
Upgrade your system’s integrity and performance with Quartz Endcaps – where excellence in material science meets precision manufacturing. Contact us today to learn more about how our endcaps can enhance your products and take your applications to new heights of reliability and performance.
| Materials | Single Quartz Blanks (both Piezo / Optical grade) |
| Materials | Both Pure Z and Y Bar available |
| Synthetic Q-Value | Min 1.8x10^6, 2.4x10^6 to 3.0x10^6 IEC standards |
| ECD | Max 100/c㎡, Max 300/c㎡; or per Customer’s request |
| Inclusions Density | I, II, III Grades |
| Cuts Type ( orientation) | AT, BT, CT, ET ,DT, GT, NT, FC, SC, IT, AC ,BC ,ST .TS MT ,NT RT …, etc per requested |
| Angle Tolerance(±) | Theta Angle: ±5″, ±10″, ±15″, ±30″, ±1′, ±2′, … , etc |
| Phi Angle:±5′, ±10′, ±15′, ±30′, … , etc | |
| Size For Round endcaps | From 10.0mm to 15.00mm (with flat) , 13.80mm as typical one |
| Height / Thickness | 5.00-7.00 mm per requested |
| Flat | Per requested the flat shall be perpendicular to X axis within ±10 deg |
| Surface Finishing | #1000(9u); #2000(7u); #3000(5u); #4000(3u) (Sic); Polished(Cerium oxide)& etched Std |
Packing and Shipping:

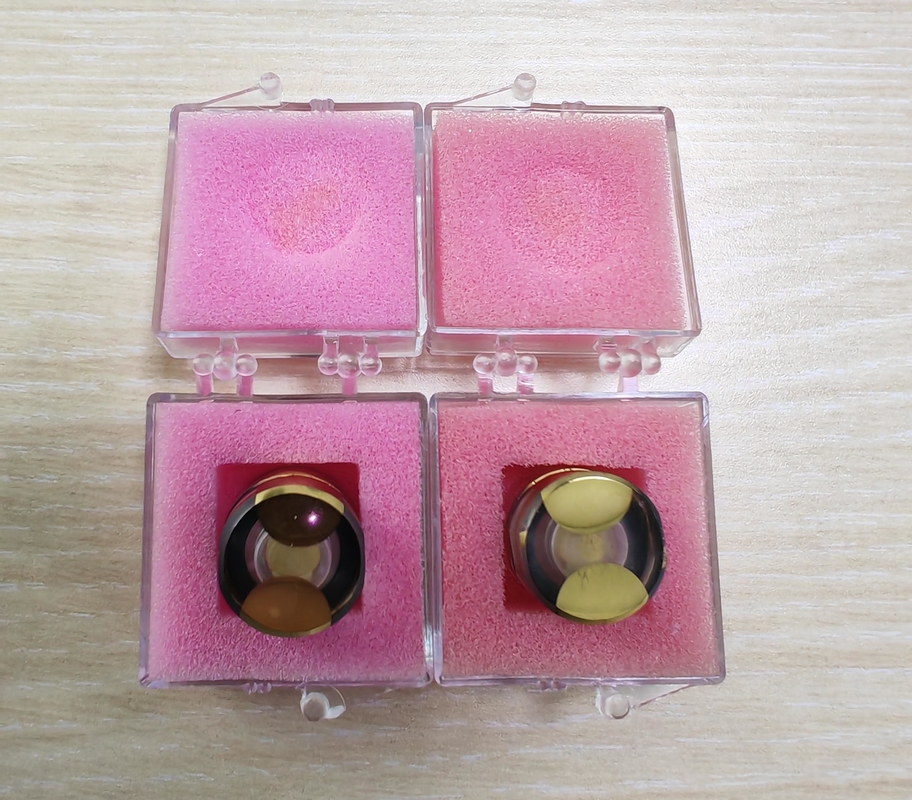

Our Piezoelectric Quartz Endcaps are carefully packed in a sealed and secure container with an anti-static layer and moisture barrier to ensure that it arrives securely and undamaged.
The container is then sealed and labeled with a unique identification number for tracking purposes.
We offer both domestic and international shipping options, with the latter requiring additional paperwork. We also provide a tracking number for all domestic shipments.
For further inquiries about our packaging and shipping services, please contact our customer service team.
