3 Inch And 4 InchCustomized Orientation Options For Single Crystal Quartz Wafer High Temperature
Product Details:
| Place of Origin: | China |
| Brand Name: | CSIMC |
| Certification: | ISO:9001 |
| Model Number: | Single Crystal Quartz |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Cassette / Jar, put in a carton with PE foam. |
| Delivery Time: | 1-4 weeks |
| Payment Terms: | T/T |
| Supply Ability: | 100000 pcs / Month |
|
Detail Information |
|||
| Product: | Single Crystal Quartz | Diameter: | 3inch, 4inch |
|---|---|---|---|
| Cut Angle: | AT-cut, ST-cut, Z-cut, X-cut | Thickness: | 200um, 350um, 500um，1000um |
| Surface: | Single Side Polish, Double Side Polish | Application: | MEMS, SAW Application |
| Seed: | Seedless / Withseed | Growth: | Hydrothermal Growth |
| Highlight: | High Temperature Applications Quartz Wafer,Customized Orientation Options Quartz Wafer,Single Crystal Quartz Wafer |
||
Product Description

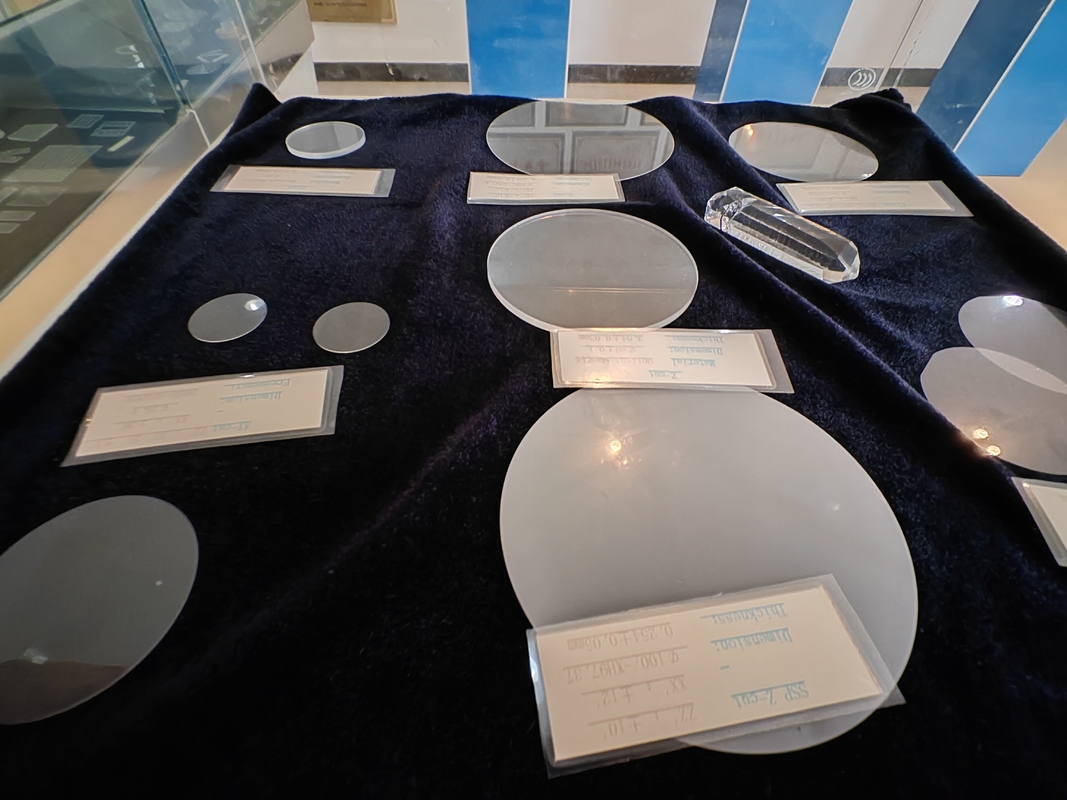

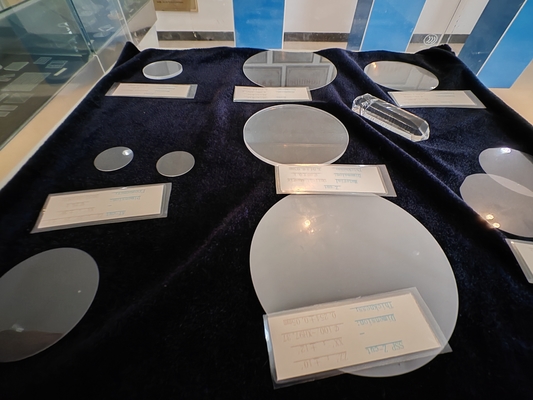

3 Inch and 4 InchCustomized Orientation Options for Single Crystal Quartz Wafer for High Temperature Applications
Discover the remarkable versatility and precision of Single Crystal Quartz, a material that has stood the test of time in the fields of electronics, optics, and horology. Renowned for its exceptional piezoelectric properties, Single Crystal Quartz is the cornerstone of high-precision oscillators and resonators, ensuring unmatched accuracy and stability in timekeeping and frequency control applications. Its unique optical transparency and low thermal expansion coefficients make it an ideal choice for optical components and precision instruments. Furthermore, the material's hardness and durability ensure it stands up to rigorous use, maintaining its exceptional performance over time. From state-of-the-art electronics to elegant timepieces, Single Crystal Quartz offers unparalleled reliability and elegance. Embrace the precision and beauty of Single Crystal Quartz and elevate your projects to new heights of performance and aesthetics.
| Single Crystal Quartz Material Properties | |
| Purity | Optical grade: 99.99% |
| Crystal Structure and lattice parameters |
Hexagonal a= 4.914 Å c = 5.405 Å |
| Growth Method | Hydrothermal method |
| Hardness | 7.0 Mohs |
| Density | 2.684 g/cm3 |
| Melt Point | 1610 deg C (phase transition point: 573.1 °C) |
| Specific heat | 0.18 cal/g |
| Thermoelectric Constant | 1200 mV / °C @ 300 °C |
| Thermal conductivity | 0.0033 cal/cm/ °C |
| Thermal expansion coefficient, (CTE) (x10^-6/ K) |
perpendicular to Z axis: 13.71 parallel to Z axis: 7.48 |
| Refractive Index | 1.544 |
|
Q value Acoustic velocity, SAW Frequency constant, BAW Piezoelectric coupling, |
1.8 x 10^6; 2.4 x 10^6, 3.0 x 10^6 3160 ( m/sec ) 1661 ( kHz/mm ) K2 (%) BAW: 0.65 SAW: 0.14 |
| Inclusion | IEC Grade II |
| Diameter | 3”(76.2mm) | 4”(100mm) | 6”(150mm) | 8”(200mm) |
| Thickness | 0.08mm Min-up | 0.10mm Min-up | 0.20mm Min -up | 0.35mm Min- |
| Primary Flat | 22mm | 32mm | 42.5mm | 57.5mm or notch |
| Surface | LTV (5mmx5mm) | <1.5µm | TTV | <1.5~3 µm |
| Bow | -30<bow<30 | Warp | <40µm | |
| Surface Type | SSP / DSP | Edge Criteria | R=0.2mm or Bullnose | |
| Polished side Ra | <0.5nm or per requested | Back Side Criteria | 0.2-0.5µm or as customized |
