Product Details:

Place of Origin: China
Brand Name: CSIMC
Certification: ISO:9001, ISO:14001
Model Number: ZnO wafer

Payment & Shipping Terms:

Minimum Order Quantity: 10pcs
Price: Negotiable
Packaging Details: Cassette/ Jar package, vaccum sealed
Delivery Time: 1-4 weeks
Payment Terms: T/T
Supply Ability: 10000 pcs/Month
Get Best Price Contact Now

Detail Information

Materials: ZnO Wafer Size: 25×25mm,10x10mm,5x5mm
Thickness: 0.5mm Surface Finish: DSP SSP
Crystal Orientation: <0001>、<11-20>、<10-10>±0.5o Surface Roug: ≤5Å
Highlight:

High Purity ZnO Crystal Substrate

,

Energy Harvesting Solutions ZnO Crystal Substrate

,

UV Optoelectronics ZnO Crystal Substrate

Product Description

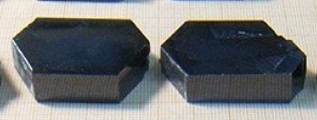

High Purity ZnO Crystal Substrate for UV Optoelectronics and Energy Harvesting Solutions

Discover the remarkable qualities of ZnO Crystal, a versatile and innovative material with superior electrical, optical, and piezoelectric properties. ZnO Crystal is revolutionizing a wide range of applications, from electronics and photonics to energy harvesting and sensing technologies.

Our ZnO Crystal is meticulously grown and polished to ensure high crystal quality and purity. Its unique properties, including a high exciton binding energy and wide bandgap, make it an ideal choice for developing high-performance devices such as LEDs, lasers, and UV detectors.

Elevate your research and development with ZnO Crystal. Its unmatched performance and reliability make it the perfect foundation for your cutting-edge projects. Contact us today to learn more about ZnO Crystal and how it can enhance your applications. With our commitment to quality and innovation, you can trust that our ZnO Crystal will meet and exceed your expectations, driving the future of high-performance materials.



High Purity ZnO Crystal Substrate For UV Optoelectronics And Energy Harvesting Solutions 0

Crystal structure Hexagonal crystal(a=3.252Å,c=5.313Å)
purity 99.99%
Coefficient of thermal expansion 6.5 x 10-6 /℃ at A axis, 3.7 x 10-6 /℃ at A axis
Crystal orientation <0001>,<11-20>,<10-10>±0.5o
dimension 25×25×0.5mm,10×10×0.5mm,10×5×0.5mm,5×5×0.5mm
Surface Finish DSP SSP
Surface roughness ≤5Å
Packing 100 clean bags, 1000 super clean room


High Purity ZnO Crystal Substrate For UV Optoelectronics And Energy Harvesting Solutions 1

High Purity ZnO Crystal Substrate For UV Optoelectronics And Energy Harvesting Solutions 2




FAQs:



  1. Q: What are the products you mainly work on?

A: We look at ourselves as the piezo wafer specialist. We are the very first to work with Single Crystal Quartz in China about 30 years ago. Then gradually we step in the field of LiNbO3, LiTaO3, Quartz glass, LGS, CTGS etc. Especially, if you are looking for a piezo quartz supplier, we are the ultimate choice! We export millions of quartz blanks each year because we master the AT, SC and IT cuts with superior angle precision.



  1. Q: Can you accept product customization?

A: Yes, of course. We can fabricate as per your request. In addition, we are so experienced with piezo wafers that we can provide you relevant suggestions if you are not 100% sure about your choice. Besides, we do have some standard wafers in stock, please check with us.



  1. Q: Can you deliver the goods via our courier agent?

A: Yes, we would suggest you go with the courier agent you are most familiar with (DHL, FedEX, UPS etc.). We can ship via your account. And, of course, we will pack the products safely in acceptable size to help you save the shipping cost. If you need us to take care of the freight, it’s also not a problem. We also have good discount with the international courier companies.



  1. Q: How can you guarantee we get what we want safely?

A: The wafer products are fragile and sometimes expensive. The last thing, as the manufacturer, we want to see is the products we make were damaged during courier. As a result, we will pack the wafers adequately and put them in a proper carton filled with buffer sponge. However, accidents are inevitable sometimes. So, please follow the “Acceptance check” steps shown in the drawings below. If the unwanted happened, we will either give the replenishment or refund if you follow the checking steps.



Acceptance Check
High Purity ZnO Crystal Substrate For UV Optoelectronics And Energy Harvesting Solutions 3


  • The product is fragile. We have adequately packed it and labeled it fragile. We deliver through excellent domestic and international express companies to ensure transportation quality.



  • After receiving the goods, please handle with care and check whether the outer carton is in good condition. Carefully open the outer carton and check whether the packing boxes are in alignment. Take a picture before you take them out.

  • Please open the vacuum package in a clean room when the products are to be applied.



  • If the products are found damaged during courier, please take a picture or record a video immediately. DO NOT take the damaged products out of the packaging box! Contact us immediately and we will solve the problem well.
