Quartz End Caps The Ultimate Solution For High Temperature High Pressure Environments
Product Details:
| Place of Origin: | China |
| Brand Name: | CSIMC |
| Certification: | ISO:9001, ISO:14001 |
| Model Number: | Quartz Sensor |
Payment & Shipping Terms:
| Minimum Order Quantity: | 20 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Cassette/ Jar package, vaccum sealed |
| Delivery Time: | 1-4 weeks |
| Payment Terms: | T/T |
| Supply Ability: | 50000 pcs/Month |
|
Detail Information |
|||
| Product Name: | Quartz Endcap | Material: | Single Crystal Quartz |
|---|---|---|---|
| Orientation: | AT-Cut | Coating: | Au And Cr |
| Mode: | Dual-mode Thickness-Shear | Applications: | Quartz Pressure Sensor |
| Highlight: | High Pressure Quartz End Caps,High Temperature Quartz End Caps |
||
Product Description

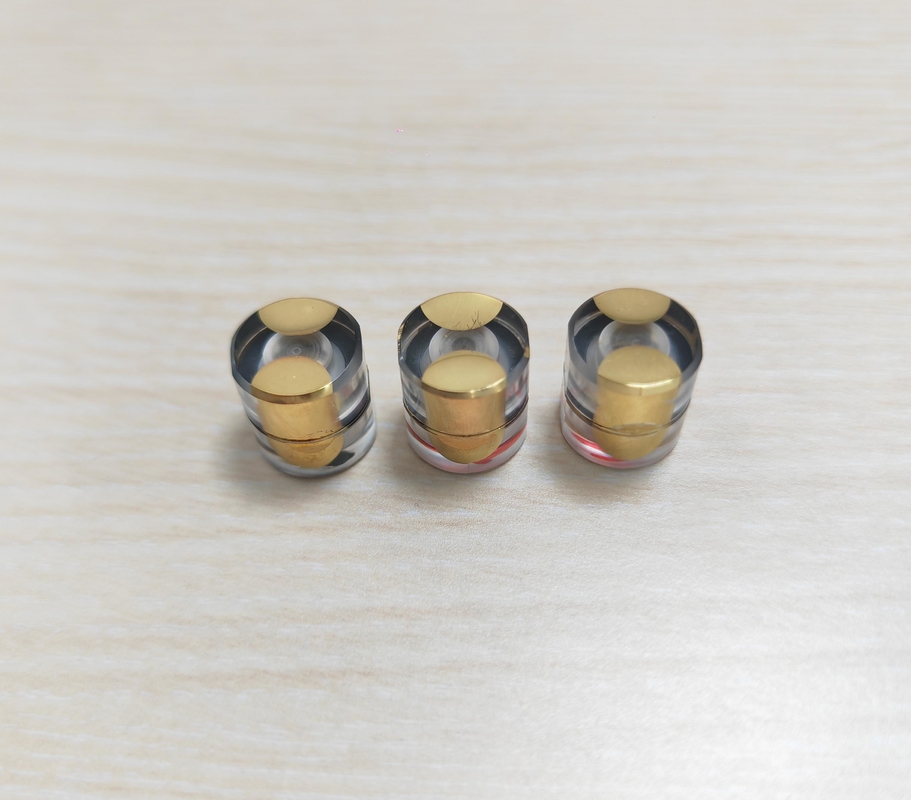

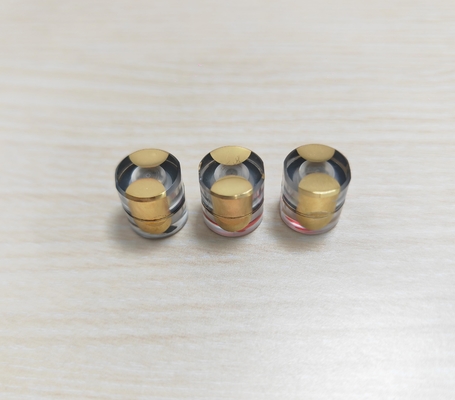

Quartz End Caps The Ultimate Solution for High-Temperature and High-Pressure Environments
our premium Quartz End Caps, the ultimate solution for enhancing the performance and reliability of your optical and electronic devices. Crafted from high-purity quartz, renowned for its exceptional optical clarity, thermal stability, and chemical inertness, our end caps are designed to meet the rigorous demands of modern technology.
Our Quartz End Caps feature a precision-polished surface, ensuring minimal light loss and maximum optical efficiency. They also offer superior electrical insulation and resistance to harsh environments, making them ideal for applications ranging from fiber-optic connectors and laser diodes to high-voltage electronics and medical instrumentation.
Experience the pinnacle of optical and electronic performance with our Quartz End Caps. Elevate your devices to new heights of reliability and precision. Discover the future of technology with our superior Quartz End Caps – order yours today and unlock the full potential of your optical and electronic systems.
| Materials | Single Quartz Blanks (both Piezo / Optical grade) |
| Materials | Both Pure Z and Y Bar available |
| Synthetic Q-Value | Min 1.8x10^6, 2.4x10^6 to 3.0x10^6 IEC standards |
| ECD | Max 100/c㎡, Max 300/c㎡; or per Customer’s request |
| Inclusions Density | I, II, III Grades |
| Cuts Type ( orientation) | AT, BT, CT, ET ,DT, GT, NT, FC, SC, IT, AC ,BC ,ST .TS MT ,NT RT …, etc per requested |
| Angle Tolerance(±) | Theta Angle: ±5″, ±10″, ±15″, ±30″, ±1′, ±2′, … , etc |
| Phi Angle:±5′, ±10′, ±15′, ±30′, … , etc | |
| Size For Round endcaps | From 10.0mm to 15.00mm (with flat) , 13.80mm as typical one |
| Height / Thickness | 5.00-7.00 mm per requested |
| Flat | Per requested the flat shall be perpendicular to X axis within ±10 deg |
| Surface Finishing | #1000(9u); #2000(7u); #3000(5u); #4000(3u) (Sic); Polished(Cerium oxide)& etched Std |
Packing and Shipping:
Our Piezoelectric Quartz Endcaps are carefully packed in a sealed and secure container with an anti-static layer and moisture barrier to ensure that it arrives securely and undamaged.
The container is then sealed and labeled with a unique identification number for tracking purposes.
We offer both domestic and international shipping options, with the latter requiring additional paperwork. We also provide a tracking number for all domestic shipments.
For further inquiries about our packaging and shipping services, please contact our customer service team.
