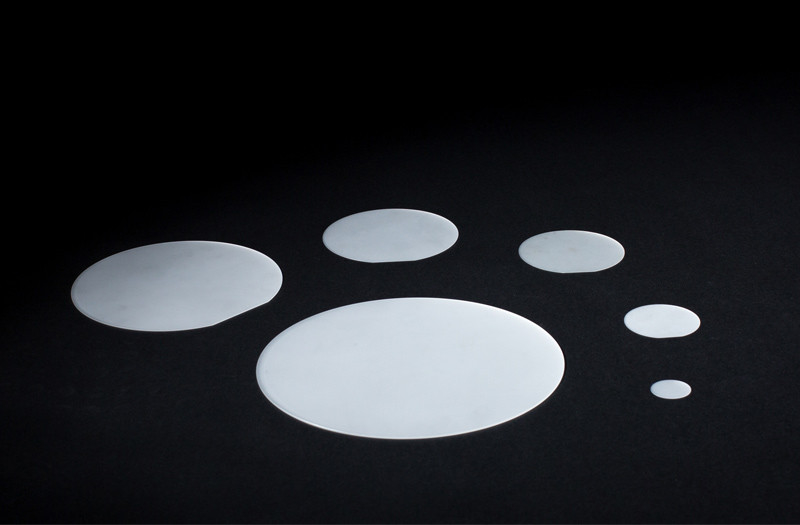

ALKALINE FREE GLASS WAFERS For Unbeatable Performance 4'' 6'' 8'' Wafer
Product Details:
| Place of Origin: | China |
| Brand Name: | CSIMC |
| Certification: | ISO:9001, ISO:14001 |
| Model Number: | alkaline free glass |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Cassette/ Jar package, vaccum sealed |
| Delivery Time: | 1-4 weeks |
| Payment Terms: | T/T |
| Supply Ability: | 20000 pcs/Month |
|
Detail Information |
|||
| Material: | Alkaline Free Glass | Diameter: | 100mm, 150mm, 200mm |
|---|---|---|---|
| Thickness: | 500um,725um 1000um | TTV: | < 10 μm |
| Ra Roughness: | <1nm / GC#1000 | Surface: | DSP SSP |
| Cte: | 3.17 Ppm/K | ||
| Highlight: | 6 Glass Wafers,8 Glass Wafers,Unbeatable Performance Glass Wafers |
||
Product Description
ALKALINE FREE GLASS WAFERS For Unbeatable Performance 4'' 6'' 8'' Wafer
Alkaline-free glass wafers stand out in the realm of advanced materials due to their unique properties and versatility. Their coefficient of thermal expansion (CTE) is specifically tailored to match that of silicon, ensuring seamless integration and compatibility with CMOS technology. This makes them indispensable in the manufacturing of electronic devices that require precision and reliability.
Remarkably, these wafers can withstand temperatures as high as 600°C without compromising their mechanical stability. This robustness allows them to be used in a variety of demanding processes, further expanding their potential applications.
In sensor technology, alkaline-free glass wafers provide a stable and reliable platform for precision sensors. Their clarity and durability also make them an excellent choice for display cover glass, enhancing the visual experience of electronic devices. Additionally, their thin-glass form factor enables them to be used in innovative applications, such as flexible displays and wearable technology.
In summary, alkaline-free glass wafers are a versatile and reliable material that is well-suited for a wide range of electronic applications, from sensors and displays to thin-glass innovations.
| material: alkaline free glass | surface roughness (Ra): < 1 nm |
| cte: 3.17 ppm/K | ttv: < 10 μm |
| diameter: 150 mm 200mm | bow: < 60 μm |
| diameter tolerance: ± 0.3 mm | flat: according to SEMI (57.5 mm) |
| thickness tolerance: ± 10 μm | surface: scratch-dig 60-40 according MIL-PRF-13830 |
| polishing: double side polished | edge exclusion: 6 mm |
| surface roughness (Ra): < 1 nm | packing: clean room packed |
| ttv: < 10 μm | packing units: 10 pcs, 25 pcs |
FAQs:
- Q: What are the products you mainly work on?
A: We look at ourselves as the piezo wafer specialist. We are the very first to work with Single Crystal Quartz in China about 30 years ago. Then gradually we step in the field of LiNbO3, LiTaO3, Quartz glass, LGS, CTGS etc. Especially, if you are looking for a piezo quartz supplier, we are the ultimate choice! We export millions of quartz blanks each year because we master the AT, SC and IT cuts with superior angle precision.
- Q: Can you accept product customization?
A: Yes, of course. We can fabricate as per your request. In addition, we are so experienced with piezo wafers that we can provide you relevant suggestions if you are not 100% sure about your choice. Besides, we do have some standard wafers in stock, please check with us.
- Q: Can you deliver the goods via our courier agent?
A: Yes, we would suggest you go with the courier agent you are most familiar with (DHL, FedEX, UPS etc.). We can ship via your account. And, of course, we will pack the products safely in acceptable size to help you save the shipping cost. If you need us to take care of the freight, it’s also not a problem. We also have good discount with the international courier companies.
- Q: How can you guarantee we get what we want safely?
A: The wafer products are fragile and sometimes expensive. The last thing, as the manufacturer, we want to see is the products we make were damaged during courier. As a result, we will pack the wafers adequately and put them in a proper carton filled with buffer sponge. However, accidents are inevitable sometimes. So, please follow the “Acceptance check” steps shown in the drawings below. If the unwanted happened, we will either give the replenishment or refund if you follow the checking steps.
- Q: Can we visit your factory?
A: Sure. Factory inspection is important for large quantity purchase and long-term cooperation. Face to face discussion is what we mostly confident with. During the past years, big names around the world have witnessed our progress in factory build-up. These days, due to the Covid-19 pandemic, we also had the experience of videoconferencing with global buyers.
Acceptance Check
- The product is fragile. We have adequately packed it and labeled it fragile. We deliver through excellent domestic and international express companies to ensure transportation quality.
- After receiving the goods, please handle with care and check whether the outer carton is in good condition. Carefully open the outer carton and check whether the packing boxes are in alignment. Take a picture before you take them out.
- Please open the vacuum package in a clean room when the products are to be applied.
- If the products are found damaged during courier, please take a picture or record a video immediately. DO NOT take the damaged products out of the packaging box! Contact us immediately and we will solve the problem well.
