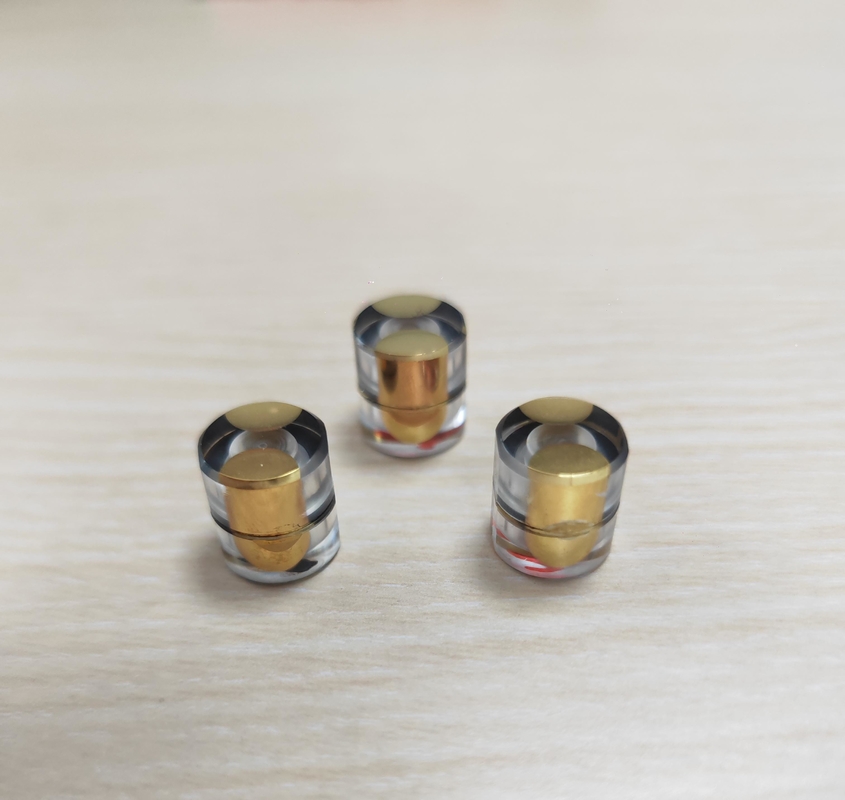

Enhance Your Devices With Quartz End Caps For High-Temperature And High-Pressure Applications
Product Details:
| Place of Origin: | China |
| Brand Name: | CSIMC |
| Certification: | ISO:9001, ISO:14001 |
| Model Number: | Quartz Sensor |
Payment & Shipping Terms:
| Minimum Order Quantity: | 20 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Cassette/ Jar package, vaccum sealed |
| Delivery Time: | 1-4 weeks |
| Payment Terms: | T/T |
| Supply Ability: | 50000 pcs/Month |
|
Detail Information |
|||
| Product Name: | Quartz Endcap | Material: | Single Crystal Quartz |
|---|---|---|---|
| Orientation: | Coated AT Quartz Blank | Mode: | Dual-mode Thickness-Shear |
| Sealing: | Glass Frit | Applications: | Downhole Detection |
| Highlight: | High-Pressure Quartz End Caps,High-Temperature Quartz End Caps,Quartz End Caps |
||
Product Description
Enhance Your Devices with Quartz End Caps for High-Temperature and High-Pressure Applications
our premium Quartz End Caps, the ultimate solution for sealing and protecting your sensitive electronic and optical components. Crafted from high-purity quartz, our end caps offer exceptional chemical stability, thermal resistance, and electrical insulation properties.
Designed for applications requiring rigorous durability and reliability, our Quartz End Caps provide a robust barrier against moisture, contaminants, and temperature fluctuations. Their superior optical transparency and low coefficient of thermal expansion ensure minimal distortion and maximum performance across a wide range of operating conditions.
Precision-machined to ensure a perfect fit, our end caps offer seamless integration into your existing designs, minimizing assembly time and maximizing overall system efficiency. Elevate the performance and longevity of your devices with our Quartz End Caps – experience unmatched quality, precision, and protection. Order now and safeguard your technology with the best in quartz sealing solutions.
| Materials | Single Quartz Blanks (both Piezo / Optical grade) |
| Materials | Both Pure Z and Y Bar available |
| Synthetic Q-Value | Min 1.8x10^6, 2.4x10^6 to 3.0x10^6 IEC standards |
| ECD | Max 100/c㎡, Max 300/c㎡; or per Customer’s request |
| Inclusions Density | I, II, III Grades |
| Cuts Type ( orientation) | AT, BT, CT, ET ,DT, GT, NT, FC, SC, IT, AC ,BC ,ST .TS MT ,NT RT …, etc per requested |
| Angle Tolerance(±) | Theta Angle: ±5″, ±10″, ±15″, ±30″, ±1′, ±2′, … , etc |
| Phi Angle:±5′, ±10′, ±15′, ±30′, … , etc | |
| Size For Round endcaps | From 10.0mm to 15.00mm (with flat) , 13.80mm as typical one |
| Height / Thickness | 5.00-7.00 mm per requested |
| Flat | Per requested the flat shall be perpendicular to X axis within ±10 deg |
| Surface Finishing | #1000(9u); #2000(7u); #3000(5u); #4000(3u) (Sic); Polished(Cerium oxide)& etched Std |
Packing and Shipping:
Our Piezoelectric Quartz Endcaps are carefully packed in a sealed and secure container with an anti-static layer and moisture barrier to ensure that it arrives securely and undamaged.
The container is then sealed and labeled with a unique identification number for tracking purposes.
We offer both domestic and international shipping options, with the latter requiring additional paperwork. We also provide a tracking number for all domestic shipments.
For further inquiries about our packaging and shipping services, please contact our customer service team.
