Customized 5mol% MgO Doped Lithium Niobate Wafer For Optical Applications
Product Details:
| Place of Origin: | China |
| Brand Name: | CSIMC |
| Certification: | ISO:9001, ISO:14001 |
| Model Number: | Lithium Niobate (LiNbO3) |
Payment & Shipping Terms:
| Minimum Order Quantity: | 5 pcs |
|---|---|
| Price: | Negotiable |

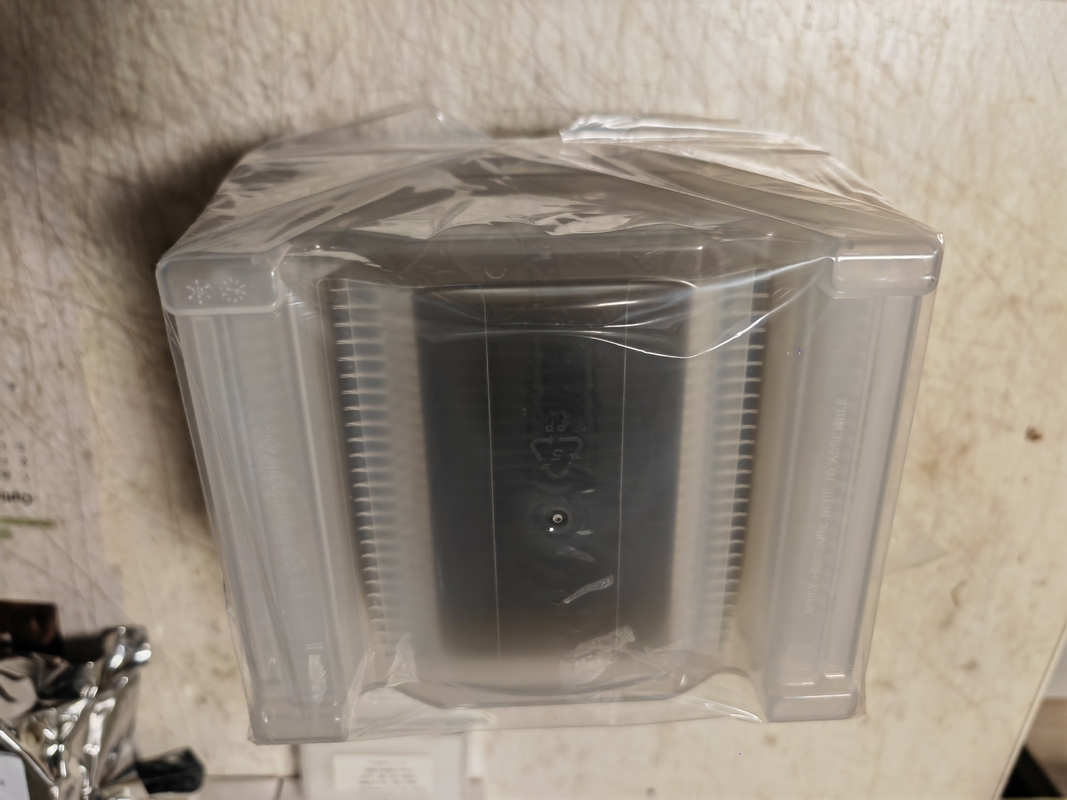

| Packaging Details: | Cassette/ Jar package, vaccum sealed |
| Delivery Time: | 1-4 weeks |
| Payment Terms: | T/T |
| Supply Ability: | 20000 pcs/Month |
|
Detail Information |
|||
| Material: | LiNbO3 Wafer | Out Diameter: | 3'', 4'' |
|---|---|---|---|
| Type: | Optical Grade | Dope With: | MgO:LN |
| Thickness: | 0.25mm - 3mm | Surface Finish: | DSP, SSP, Lap, Etching |
| Ra Roughness: | Ra <1nm, Ra <0.5nm | Application: | SAW Filter, Ultrasonic Transducer |
| Highlight: | 5mol% MgO Doped Lithium Niobate Wafer,Customized Lithium Niobate Wafer,Optical Lithium Niobate Wafer |
||
Product Description
Customized 5mol% MgO Doped Lithium Niobate Wafer for Optical Applications
our cutting-edge 5mol% MgO Doped LN Wafer, a revolutionary product tailored for advanced material science and electronic applications. This wafer boasts a precise doping of 5 molar percent magnesium oxide (MgO), enhancing its piezoelectric properties and thermal stability. Ideal for high-frequency devices, sensors, and surface acoustic wave (SAW) filters, our MgO-doped lithium niobate (LN) wafer offers superior performance and reliability.
Experience unparalleled crystal quality and consistency, ensuring your projects meet the most demanding specifications. Our state-of-the-art manufacturing processes guarantee low defect density and excellent electrical characteristics. Whether you're developing next-gen telecommunication systems or pushing the boundaries of medical diagnostics, this wafer is your key to innovation.
Order now and take a step forward in your technological journey with our 5mol% MgO Doped LN Wafer – where precision meets performance.
|
Material |
3" 4" 6" 8" LN wafer (Saw/Optical grade) |
|
Orientation Cut |
Y64°, Y128°, YZ or Customized |
|
Surface finish |
single or double sides polish (DLP/SLP/ SSP/DSP all available ) |
|
Thickness |
0.18/0.25/0.35/0.50/1.00 + mm |
|
TTV |
< 1~5µm |
|
BOW |
± (25µm ~40um ) |
|
Warp |
<= 35µm |
|
LTV (5mmx5mm) |
<1.5 um |
|
PLTV(<0.5um) |
≥98% (5mm*5mm) with 2mm edge excluded |
|
Curie Temp |
1142°C±3°C |
|
Edge Rouding |
Compl't with SEMI M1.2@with GC800# .regular at C typed |
|
Orientation flats |
available, per request |
|
Polished side Ra |
Roughness Ra<=5A |
|
Back Side Criteria |
Roughness Ra:0.5-1.0µm GC#1000 |
|
Cracks, saw marks, stains |
None |
|
Single Domain |
Completed Polarization/Reduced |
FAQs:
- Q: Can you accept product customization?
A: Yes, of course. We can fabricate as per your request. In addition, we are so experienced with piezo wafers that we can provide you relevant suggestions if you are not 100% sure about your choice. Besides, we do have some standard wafers in stock, please check with us.
- Q: Can you deliver the goods via our courier agent?
A: Yes, we would suggest you go with the courier agent you are most familiar with (DHL, FedEX, UPS etc.). We can ship via your account. And, of course, we will pack the products safely in acceptable size to help you save the shipping cost. If you need us to take care of the freight, it’s also not a problem. We also have good discount with the international courier companies.
Acceptance Check
- The product is fragile. We have adequately packed it and labeled it fragile. We deliver through excellent domestic and international express companies to ensure transportation quality.
- After receiving the goods, please handle with care and check whether the outer carton is in good condition. Carefully open the outer carton and check whether the packing boxes are in alignment. Take a picture before you take them out.
- Please open the vacuum package in a clean room when the products are to be applied.
- If the products are found damaged during courier, please take a picture or record a video immediately. DO NOT take the damaged products out of the packaging box! Contact us immediately and we will solve the problem well.
