Stoichiometric LiTaO3 Wafers The Ultimate Choice for High-Frequency Electronics
Product Details:
| Place of Origin: | China |
| Brand Name: | CSIMC |
| Certification: | ISO:9001, ISO:14001 |
| Model Number: | Lithium Tantalate (LiTaO3) |
Payment & Shipping Terms:
| Minimum Order Quantity: | 5 pcs |
|---|---|
| Price: | Negotiable |

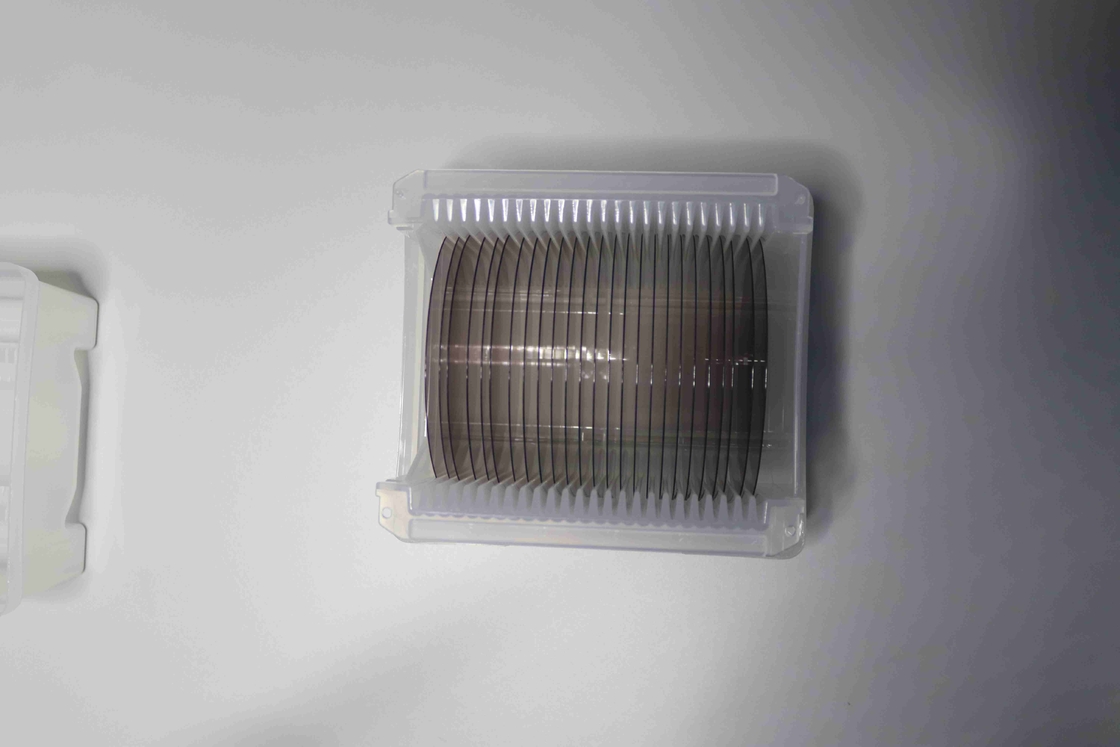

| Packaging Details: | Cassette/ Jar package, vaccum sealed |
| Delivery Time: | 1-4 weeks |
| Payment Terms: | T/T |
| Supply Ability: | 10000 pcs/Month |
|
Detail Information |
|||
| Product: | Stoichiometric LiTaO3 Wafer | Grade: | Optical |
|---|---|---|---|
| Orientation: | X-CUT | Diameter: | Φ76.2mm |
| Thickness: | 0.5mm, 1mm | Surface: | DSP, SSP, Lapping |
| Flat: | 22±2mm | Application: | Optical Devices |
| Highlight: | High Frequency Electronics LiTaO3 Wafers,Stoichiometric LiTaO3 Wafers,High Frequency Electronics Wafers |
||
Product Description
Stoichiometric LiTaO3 Wafers The Ultimate Choice for High-Frequency Electronics
our high-performance Stoichiometric LiTaO3 Wafers, the epitome of precision and reliability in photonic and optoelectronic applications. Stoichiometric LiTaO3, renowned for its exceptional ferroelectric, piezoelectric, and electro-optic properties, is the go-to material for cutting-edge technology in telecommunications, sensors, and more.
Our LiTaO3 Wafers are meticulously crafted to maintain precise stoichiometric ratios, ensuring unparalleled crystal quality and performance. They offer superior optical transparency, low optical loss, and high thermal stability, making them ideal for applications ranging from optical modulators and frequency converters to integrated photonic circuits and high-speed switches.
Elevate your technology with our top-tier LiTaO3 Wafers. Their precision, reliability, and versatility promise to deliver unparalleled performance across a wide range of applications. Discover the future of photonic and optoelectronic innovation with our Stoichiometric LiTaO3 Wafers – order yours today and unlock the full potential of your cutting-edge devices and systems.
| Diameter | Orientation | Thickness | Primary Flat | Material | Brand /Grade |
| 76.2±0.2mm | 36°Y Cut | 30±2um | 22±2mm | LiTaO3 | SAW |
| 76.2±0.2mm | 36°Y Cut | 50±2um | 22±2mm | Black LiTaO3 | SAW |
| 76.2±0.2mm | 42°Y Cut | 30±2um | 22±2mm | LiTaO3 | SAW |
| 76.2±0.2mm | 42°Y Cut | 50±2um | 22±2mm | Black LiTaO3 | SAW |
| 76.2±0.2mm | X-112°Y Cut | 30±2um | 22±2mm | LiTaO3 | SAW |
| 76.2±0.2mm | X-112°Y Cut | 50±2um | 22±2mm | Black LiTaO3 | SAW |
| 76.2±0.2mm | X Cut | 30±2um | 22±2mm | LiTaO3 | Optical |
| 76.2±0.2mm | Z Cut | 30±2um | 22±2mm | LiTaO3 | Optical |
| 100±0.2mm | 36°Y Cut | 30±2um | 32±2mm | LiTaO3 | SAW |
| 100±0.2mm | 36°Y Cut | 50±2um | 32±2mm | Black LiTaO3 | SAW |
| 100±0.2mm | 42°Y Cut | 30±2um | 32±2mm | LiTaO3 | SAW |
| 100±0.2mm | 42°Y Cut | 50±2um | 32±2mm | Black LiTaO3 | SAW |
| 100±0.2mm | X-112°Y Cut | 30±2um | 32±2mm | LiTaO3 | SAW |
| 100±0.2mm | X-112°Y Cut | 50±2um | 32±2mm | Black LiTaO3 | SAW |
| 100±0.2mm | X Cut | 30±2um | 32±2mm | LiTaO3 | Optical |
| 100±0.2mm | Z Cut | 30±2um | 32±2mm | LiTaO3 | Optical |
| Chemical formula | LiTaO3 |
| Molar mass | 235.887 g/mol |
| Density | 7.46 g/cm3, solid |
| Melting point | 1,650°C (3,000°F; 1,920K) |
| Solubility in water | Insoluble in water |
| Crystal structure | Space group R3c |
| Lattice constant |
a = 515.43 pm, c = 1378.35 pm |
FAQs:
- Q: What are the products you mainly work on?
A: We look at ourselves as the piezo wafer specialist. We are the very first to work with Single Crystal Quartz in China about 30 years ago. Then gradually we step in the field of LiNbO3, LiTaO3, Quartz glass, LGS, CTGS etc. Especially, if you are looking for a piezo quartz supplier, we are the ultimate choice! We export millions of quartz blanks each year because we master the AT, SC and IT cuts with superior angle precision.
- Q: Can you accept product customization?
A: Yes, of course. We can fabricate as per your request. In addition, we are so experienced with piezo wafers that we can provide you relevant suggestions if you are not 100% sure about your choice. Besides, we do have some standard wafers in stock, please check with us.
- Q: Can you deliver the goods via our courier agent?
A: Yes, we would suggest you go with the courier agent you are most familiar with (DHL, FedEX, UPS etc.). We can ship via your account. And, of course, we will pack the products safely in acceptable size to help you save the shipping cost. If you need us to take care of the freight, it’s also not a problem. We also have good discount with the international courier companies.
- Q: How can you guarantee we get what we want safely?
A: The wafer products are fragile and sometimes expensive. The last thing, as the manufacturer, we want to see is the products we make were damaged during courier. As a result, we will pack the wafers adequately and put them in a proper carton filled with buffer sponge. However, accidents are inevitable sometimes. So, please follow the “Acceptance check” steps shown in the drawings below. If the unwanted happened, we will either give the replenishment or refund if you follow the checking steps.
- Q: Can we visit your factory?
A: Sure. Factory inspection is important for large quantity purchase and long-term cooperation. Face to face discussion is what we mostly confident with. During the past years, big names around the world have witnessed our progress in factory build-up. These days, due to the Covid-19 pandemic, we also had the experience of videoconferencing with global buyers.
Acceptance Check
- The product is fragile. We have adequately packed it and labeled it fragile. We deliver through excellent domestic and international express companies to ensure transportation quality.
- After receiving the goods, please handle with care and check whether the outer carton is in good condition. Carefully open the outer carton and check whether the packing boxes are in alignment. Take a picture before you take them out.
- Please open the vacuum package in a clean room when the products are to be applied.
- If the products are found damaged during courier, please take a picture or record a video immediately. DO NOT take the damaged products out of the packaging box! Contact us immediately and we will solve the problem well.
