Product Details:

Place of Origin: China
Brand Name: CSIMC
Certification: ISO:9001, ISO:14001
Model Number: ZnO wafer

Payment & Shipping Terms:

Minimum Order Quantity: 10pcs
Price: Negotiable
Packaging Details: Cassette/ Jar package, vaccum sealed
Delivery Time: 1-4 weeks
Payment Terms: T/T
Supply Ability: 10000 pcs/Month
Get Best Price Contact Now

Detail Information

Materials: ZnO Wafer Size: 25×25mm,10x10mm,5x5mm
Purity: 99.99% Surface Finish: DSP SSP
Orientation: <0001>、<11-20>、<10-10>±0.5o Surface Roughness: ≤5Å
Highlight:

Wide Band Connection Devices

,

ZnO Crystal Substrate

,

GaN Epitaxial Substrate

Product Description

ZnO Crystal Substrate Is Used In GaN(blue LED) Epitaxial Substrate Wide Band Connection Devices And Other Fields



the cutting-edge of material science with our premium ZnO (Zinc Oxide) crystals, designed to revolutionize your technological endeavors. Renowned for their exceptional electrical, optical, and piezoelectric properties, ZnO crystals are the cornerstone of modern innovation, driving advancements in electronics, optoelectronics, and beyond.

Our ZnO crystals are meticulously crafted through advanced synthesis techniques and rigorous quality control, ensuring unparalleled purity, structural integrity, and reproducibility. Their unique combination of properties makes them indispensable for applications ranging from high-efficiency solar cells and LEDs to advanced sensors and energy harvesting devices.

Elevate your technology with our top-tier ZnO crystals. Ideal for both academic research and industrial applications, they promise to deliver unparalleled performance and reliability. Unlock the full potential of ZnO with our superior crystals – experience the future of electronics and optoelectronics today.

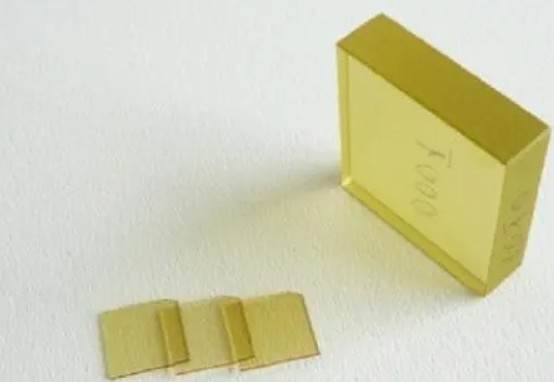

ZnO Crystal Substrate In GaN(blue LED) Epitaxial Substrate Wide Band Connection Devices And Other Fields 0

Crystal structure Hexagonal crystal(a=3.252Å,c=5.313Å)
purity 99.99%
Coefficient of thermal expansion 6.5 x 10-6 /℃ at A axis, 3.7 x 10-6 /℃ at A axis
Crystal orientation <0001>,<11-20>,<10-10>±0.5o
dimension 25×25×0.5mm,10×10×0.5mm,10×5×0.5mm,5×5×0.5mm
Surface Finish DSP SSP
Surface roughness ≤5Å
Packing 100 clean bags, 1000 super clean room


ZnO Crystal Substrate In GaN(blue LED) Epitaxial Substrate Wide Band Connection Devices And Other Fields 1

ZnO Crystal Substrate In GaN(blue LED) Epitaxial Substrate Wide Band Connection Devices And Other Fields 2




FAQs:



  1. Q: What are the products you mainly work on?

A: We look at ourselves as the piezo wafer specialist. We are the very first to work with Single Crystal Quartz in China about 30 years ago. Then gradually we step in the field of LiNbO3, LiTaO3, Quartz glass, LGS, CTGS etc. Especially, if you are looking for a piezo quartz supplier, we are the ultimate choice! We export millions of quartz blanks each year because we master the AT, SC and IT cuts with superior angle precision.



  1. Q: Can you accept product customization?

A: Yes, of course. We can fabricate as per your request. In addition, we are so experienced with piezo wafers that we can provide you relevant suggestions if you are not 100% sure about your choice. Besides, we do have some standard wafers in stock, please check with us.



  1. Q: Can you deliver the goods via our courier agent?

A: Yes, we would suggest you go with the courier agent you are most familiar with (DHL, FedEX, UPS etc.). We can ship via your account. And, of course, we will pack the products safely in acceptable size to help you save the shipping cost. If you need us to take care of the freight, it’s also not a problem. We also have good discount with the international courier companies.



  1. Q: How can you guarantee we get what we want safely?

A: The wafer products are fragile and sometimes expensive. The last thing, as the manufacturer, we want to see is the products we make were damaged during courier. As a result, we will pack the wafers adequately and put them in a proper carton filled with buffer sponge. However, accidents are inevitable sometimes. So, please follow the “Acceptance check” steps shown in the drawings below. If the unwanted happened, we will either give the replenishment or refund if you follow the checking steps.



Acceptance Check
ZnO Crystal Substrate In GaN(blue LED) Epitaxial Substrate Wide Band Connection Devices And Other Fields 3


  • The product is fragile. We have adequately packed it and labeled it fragile. We deliver through excellent domestic and international express companies to ensure transportation quality.



  • After receiving the goods, please handle with care and check whether the outer carton is in good condition. Carefully open the outer carton and check whether the packing boxes are in alignment. Take a picture before you take them out.

  • Please open the vacuum package in a clean room when the products are to be applied.



  • If the products are found damaged during courier, please take a picture or record a video immediately. DO NOT take the damaged products out of the packaging box! Contact us immediately and we will solve the problem well.
