SrTiO3 Single Crystal For Epitaxial Growth And Most Oxide Films
Product Details:
| Place of Origin: | China |
| Brand Name: | CSIMC |
| Certification: | ISO:9001, ISO:14001 |
| Model Number: | SrTiO3 wafer |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Cassette/ Jar package, vaccum sealed |
| Delivery Time: | 1-4 weeks |
| Payment Terms: | T/T |
| Supply Ability: | 10000 pcs/Month |
|
Detail Information |
|||
| Materials: | SrTiO3 Wafer | Size: | 10x10mm,5x5mm |
|---|---|---|---|
| Thickness: | 0.5mm | Surface Finish: | Single Side Polish |
| Orientation: | <100>、<110>、<111>±0.5o | Growing Directions: | Flame Method |
| Highlight: | SrTiO3 single crystal,Epitaxial Growth SrTiO3 single crystal,Oxide Films SrTiO3 single crystal |
||
Product Description

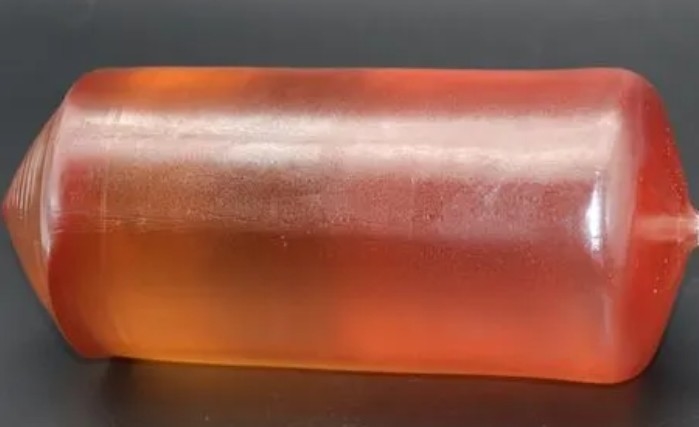

SrTiO3 single crystal is used for epitaxial growth and most oxide films
SrTiO3 (Strontium Titanate), a perovskite oxide with exceptional physical properties, is a cornerstone material in the field of solid-state physics and electronics. Its single-crystal wafers exhibit remarkable dielectric, ferroelectric, and superconducting characteristics, depending on the temperature and doping conditions. These wafers, meticulously grown through techniques such as flux growth or pulsed laser deposition, offer unparalleled crystallinity and surface smoothness, essential for high-performance devices.
SrTiO3 wafers are highly sought after for their applications in advanced electronics, including gate dielectrics in field-effect transistors, capacitors in dynamic random-access memory, and even as substrates for the growth of complex oxide heterostructures. Their tunable properties and compatibility with various deposition techniques make them versatile building blocks for the next generation of microelectronics and quantum technologies. The pursuit of perfecting SrTiO3 wafers continues to drive innovation in materials science and solid-state engineering.
| SrTiO3Crystals and substrates | |
| growing directions | flame method |
| crystal texture | cube(a=3.905Å) |
| Density | 5.175g/cm3 |
| purity | Intrinsic, light doping, heavy doping |
| Thermal expansion coefficient | 10.4ppm/℃ |
| Dielectric constant | 9.8 |
| Crystal orientation | <100>,<110>,<111>±0.5o |
| Dimensions | Dia30×0.5mm, 20×20×0.5mm, 15×15×0.5mm 10×10×0.5mm, 10×5×0.5mm, 5×5×0.5mm |
| Surface Finish | Polishing Single or double side polishing |
| Surface roughness | ≤5Å |
| Package | 100-level ultra-clean bag, single chip or multi-chip chip box |
FAQs:
- Q: What are the products you mainly work on?
A: We look at ourselves as the piezo wafer specialist. We are the very first to work with Single Crystal Quartz in China about 30 years ago. Then gradually we step in the field of LiNbO3, LiTaO3, Quartz glass, LGS, CTGS etc. Especially, if you are looking for a piezo quartz supplier, we are the ultimate choice! We export millions of quartz blanks each year because we master the AT, SC and IT cuts with superior angle precision.
- Q: Can you accept product customization?
A: Yes, of course. We can fabricate as per your request. In addition, we are so experienced with piezo wafers that we can provide you relevant suggestions if you are not 100% sure about your choice. Besides, we do have some standard wafers in stock, please check with us.
- Q: Can you deliver the goods via our courier agent?
A: Yes, we would suggest you go with the courier agent you are most familiar with (DHL, FedEX, UPS etc.). We can ship via your account. And, of course, we will pack the products safely in acceptable size to help you save the shipping cost. If you need us to take care of the freight, it’s also not a problem. We also have good discount with the international courier companies.
- Q: How can you guarantee we get what we want safely?
A: The wafer products are fragile and sometimes expensive. The last thing, as the manufacturer, we want to see is the products we make were damaged during courier. As a result, we will pack the wafers adequately and put them in a proper carton filled with buffer sponge. However, accidents are inevitable sometimes. So, please follow the “Acceptance check” steps shown in the drawings below. If the unwanted happened, we will either give the replenishment or refund if you follow the checking steps.
Acceptance Check
- The product is fragile. We have adequately packed it and labeled it fragile. We deliver through excellent domestic and international express companies to ensure transportation quality.
- After receiving the goods, please handle with care and check whether the outer carton is in good condition. Carefully open the outer carton and check whether the packing boxes are in alignment. Take a picture before you take them out.
- Please open the vacuum package in a clean room when the products are to be applied.
- If the products are found damaged during courier, please take a picture or record a video immediately. DO NOT take the damaged products out of the packaging box! Contact us immediately and we will solve the problem well.
