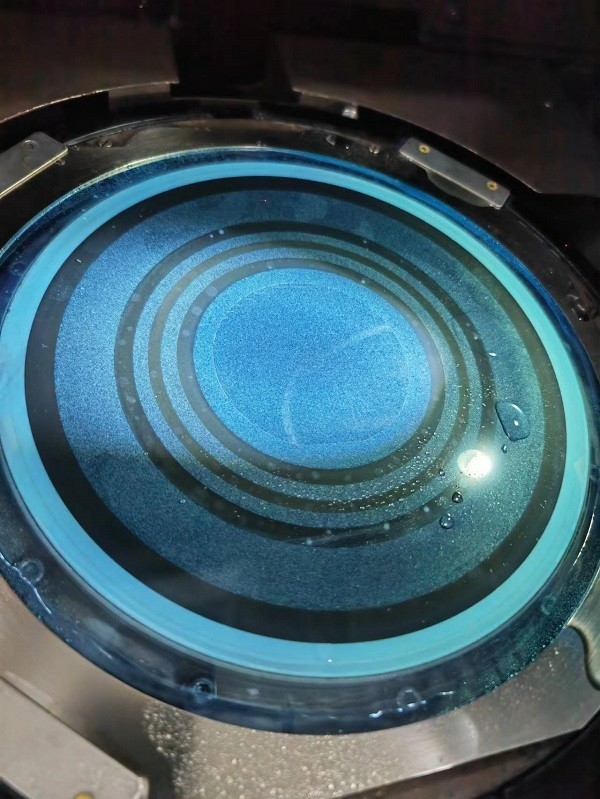

2" 3" 4" 6" Lithium Tantalate Wafers Ultimate Solution For Piezoelectric Applications
Product Details:
| Place of Origin: | China |
| Brand Name: | CSIMC |
| Certification: | ISO:9001, ISO:14001 |
| Model Number: | Lithium Tantalate (LiTaO3) |
Payment & Shipping Terms:
| Minimum Order Quantity: | 25 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Cassette/ Jar package, vaccum sealed |
| Delivery Time: | 1-4 weeks |
| Payment Terms: | T/T |
| Supply Ability: | 10000 pcs/Month |
|
Detail Information |
|||
| Material: | LiTaO3 Single Crystal | Industry: | Semiconductor Wafer, SAW Wafer, Optical Wafer |
|---|---|---|---|
| Cut Angle: | 42Y-Cut | Surface Type: | DSP, SSP, Lapping |
| Diameter: | 2" 3" 4" 6" | Thickness: | 0.25 0.35 0.5 1.0mm |
| Application: | SAW, BAW | Package: | 25pcs Cassette Case |
| Highlight: | 2'' Lithium Tantalate Wafers,4'' Lithium Tantalate Wafers,6'' Lithium Tantalate Wafers |
||
Product Description
2" 3" 4" 6" Lithium Tantalate Wafers The Ultimate Solution for Piezoelectric Applications
the precision-engineered heart of advanced technology. These wafers, crafted from the exceptional material of Lithium Tantalate, offer unparalleled performance in a wide range of applications.
Known for their exceptional piezoelectric, pyroelectric, and optical properties, Lithium Tantalate Wafers are the go-to choice for high-frequency electronics, optical modulators, and sensors. Their stability and reliability ensure consistent performance, even under extreme conditions.
Ideal for industries seeking cutting-edge solutions, these wafers enable the development of innovative products that push the boundaries of what's possible. From telecommunications to medical devices, Lithium Tantalate Wafers are the key to unlocking new possibilities.
Experience the power of precision and performance with Lithium Tantalate Wafers. Invest in the future of technology – choose Lithium Tantalate Wafers today.
|
Diameter |
76.2±0.2mm |
100±0.2mm |
150±0.2mm |
||||
|
Primary Flat |
22±1mm |
32±1mm |
47.5mm, 57.5mm, Notch |
||||
|
Orientation |
36°Y, 42°Y, X-112°Y, Y, Z |
||||||
|
Thickness |
0.07mm~1.0mm |
0.1mm~1.0mm |
0.35mm~1.0mm |
||||
|
Surface finish |
Single / Double side polish / Double side lapped |
||||||
|
TTV |
< 1~5µm |
||||||
|
BOW |
± (20µm ~40um ) |
||||||
|
Warp |
<= 20µm ~ 50µm |
||||||
|
LTV (5mmx5mm) |
<1.5 um |
||||||
|
PLTV(<0.5um) |
≥98% (5mm*5mm) with 2mm edge excluded |
||||||
|
Polished side Ra |
Roughness Ra<=5A |
||||||
|
Back Side Criteria |
Roughness Ra:0.5-1.0µm, GC#1000 |
||||||
|
Scratch & Dig (S/D) |
20/10, 40/20, 60/40 |
||||||
|
Edge Profile |
Compl't with SEMI M1.2@with GC800# .regular at C typed |
||||||
|
Cracks, saw marks, stains |
None |
||||||
|
Crystal Structure |
Trigonal, Space group R3c, Point group 3m |
|
Cell Parameters |
a=5.154Å, c=13.781Å |
|
Melting Point |
1650℃ |
|
Curie Temperature |
607℃ |
|
Mohs Hardness |
5.5 |
|
Density |
7.46g/cm3 |
|
Dielectric Constants |
ε11/ε0:51.7 |
|
ε33/ε0:44.5 |
FAQs:
- Q: What are the products you mainly work on?
A: We look at ourselves as the piezo wafer specialist. We are the very first to work with Single Crystal Quartz in China about 30 years ago. Then gradually we step in the field of LiNbO3, LiTaO3, Quartz glass, LGS, CTGS etc. Especially, if you are looking for a piezo quartz supplier, we are the ultimate choice! We export millions of quartz blanks each year because we master the AT, SC and IT cuts with superior angle precision.
- Q: Can you accept product customization?
A: Yes, of course. We can fabricate as per your request. In addition, we are so experienced with piezo wafers that we can provide you relevant suggestions if you are not 100% sure about your choice. Besides, we do have some standard wafers in stock, please check with us.
- Q: Can you deliver the goods via our courier agent?
A: Yes, we would suggest you go with the courier agent you are most familiar with (DHL, FedEX, UPS etc.). We can ship via your account. And, of course, we will pack the products safely in acceptable size to help you save the shipping cost. If you need us to take care of the freight, it’s also not a problem. We also have good discount with the international courier companies.
- Q: How can you guarantee we get what we want safely?
A: The wafer products are fragile and sometimes expensive. The last thing, as the manufacturer, we want to see is the products we make were damaged during courier. As a result, we will pack the wafers adequately and put them in a proper carton filled with buffer sponge. However, accidents are inevitable sometimes. So, please follow the “Acceptance check” steps shown in the drawings below. If the unwanted happened, we will either give the replenishment or refund if you follow the checking steps.
Acceptance Check
