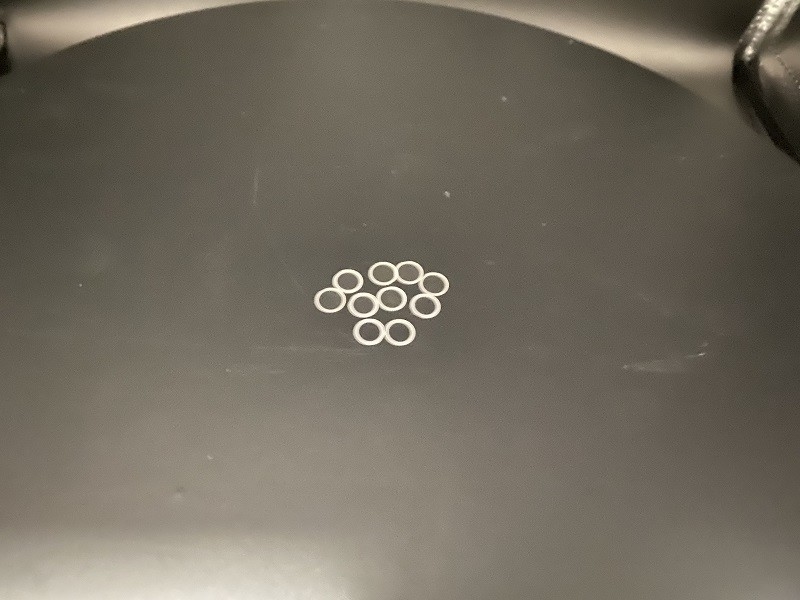

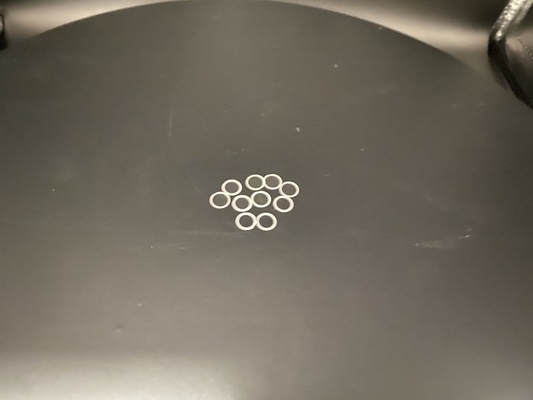

Single Crystal Quartz Ring With Low Inclusion Density For Pressure Sensing
Product Details:
| Place of Origin: | China |
| Brand Name: | CSIMC |
| Certification: | ISO:14001 |
| Model Number: | Single Crystal Quartz |
Payment & Shipping Terms:
| Minimum Order Quantity: | 50 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Film package, vaccum sealed |
| Delivery Time: | 1-4 weeks |
| Payment Terms: | T/T |
| Supply Ability: | 50000 pcs / Month |
|
Detail Information |
|||
| Material: | Quartz Crystal Ring | Size: | Ring Shape |
|---|---|---|---|
| Cut Type: | X-cut, Y-cut, Z-cut | Surface: | Polish, Lap, Etch |
| Inner Dia.: | 1.5mm Up | Q-value: | 1.8M, 2.0M, 2.4M, 3.0M |
| ECD: | 10cm2, 30cm2, 100cm2, 300cm2 | Eetch Channel Density: | 10cm2, 30cm2, 100cm2, 300cm2 |
| Highlight: | Pressure Sensing Quartz Ring,Single Crystal Quartz Ring,Low Inclusion Density Quartz Ring |
||
Product Description
Single Crystal Quartz Ring with Low Inclusion Density for Pressure Sensing
the epitome of precision and durability for critical applications in electronics, optics, and timekeeping. Crafted from the purest form of quartz, our rings offer unparalleled performance and stability, making them the go-to choice for industries that demand the highest standards of accuracy and reliability.
Our Single Crystal Quartz Rings are renowned for their exceptional piezoelectric properties, enabling them to convert mechanical energy into electrical signals with remarkable efficiency and precision. This makes them ideal for use in oscillators, resonators, and filters, where precise frequency control is essential for maintaining signal integrity and system stability.
The inherent stability of quartz crystal, combined with our meticulous manufacturing process, ensures that our rings exhibit minimal temperature drift and aging effects, maintaining their accuracy over extended periods of time. This reliability is crucial for applications such as precision timing devices, frequency control circuits, and scientific instruments.
Moreover, our Single Crystal Quartz Rings are available in various sizes, shapes, and specifications to cater to a wide range of requirements. Whether you're designing a high-precision oscillator for telecommunications, optimizing the performance of a scientific instrument, or ensuring accurate timekeeping in a critical infrastructure, we have the solution that fits your needs.
Backed by our commitment to quality and innovation, our Single Crystal Quartz Rings undergo rigorous testing and inspection to ensure they meet the highest standards of the industry. We understand the importance of precision and reliability in your applications, and we strive to deliver products that exceed your expectations.
Experience the precision, durability, and reliability of our premium Single Crystal Quartz Rings. Contact us today to learn more about how our rings can enhance the performance of your products and empower your technological pursuits.
|
Material |
Single Crystal Quartz Blanks (Piezo / Optical grade) |
|
Synthetic Q-Value |
Min 1.8×10^6, 2.4×10^6, 3.0×10^6 (IEC standards) |
|
Etch Channel Density (ECD) |
2/cm2,10/ cm2,30/ cm2,100/ cm2,300/cm2；Swept Quartz (IEC standards) |
|
Inclusions Density |
Ia,Ib,I, II,III Grades (IEC standards) |
|
Cutting Angle |
X / Y / Z / AT / BT / ST etc. |
|
Outter Diameter |
3mm ~ 200mm |
|
Inner Diameter |
1.5mm ~ 100mm |
|
Thickness |
0.1mm ~ 5mm |
|
Orientation Flat |
As required, or Pencil marked |
|
Surface Finish |
Double side lapped, Double side polished |
|
Polished side Ra |
<1nm or specific per requested |
|
Back Side Criteria |
General is 0.2-0.5µm or as customized |
FAQs:
- Q: What are the products you mainly work on?
A: We look at ourselves as the piezo wafer specialist. We are the very first to work with Single Crystal Quartz in China about 30 years ago. Then gradually we step in the field of LiNbO3, LiTaO3, Quartz glass, LGS, CTGS etc. Especially, if you are looking for a piezo quartz supplier, we are the ultimate choice! We export millions of quartz blanks each year because we master the AT, SC and IT cuts with superior angle precision.
- Q: Can you accept product customization?
A: Yes, of course. We can fabricate as per your request. In addition, we are so experienced with piezo wafers that we can provide you relevant suggestions if you are not 100% sure about your choice. Besides, we do have some standard wafers in stock, please check with us.
- Q: Can you deliver the goods via our courier agent?
A: Yes, we would suggest you go with the courier agent you are most familiar with (DHL, FedEX, UPS etc.). We can ship via your account. And, of course, we will pack the products safely in acceptable size to help you save the shipping cost. If you need us to take care of the freight, it’s also not a problem. We also have good discount with the international courier companies.
- Q: How can you guarantee we get what we want safely?
A: The wafer products are fragile and sometimes expensive. The last thing, as the manufacturer, we want to see is the products we make were damaged during courier. As a result, we will pack the wafers adequately and put them in a proper carton filled with buffer sponge. However, accidents are inevitable sometimes. So, please follow the “Acceptance check” steps shown in the drawings below. If the unwanted happened, we will either give the replenishment or refund if you follow the checking steps.
- Q: Can we visit your factory?
A: Sure. Factory inspection is important for large quantity purchase and long-term cooperation. Face to face discussion is what we mostly confident with. During the past years, big names around the world have witnessed our progress in factory build-up. These days, due to the Covid-19 pandemic, we also had the experience of videoconferencing with global buyers.
Acceptance Check
