High-Capacity Holographic Information Solution Stoichiometric LiTaO3 Wafer
Product Details:
| Place of Origin: | China |
| Brand Name: | CSIMC |
| Certification: | ISO:9001, ISO:14001 |
| Model Number: | Lithium Tantalate (LiTaO3) |
Payment & Shipping Terms:
| Minimum Order Quantity: | 5 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Cassette/ Jar package, vaccum sealed |
| Delivery Time: | 1-4 weeks |
| Payment Terms: | T/T |
| Supply Ability: | 10000 pcs/Month |
|
Detail Information |
|||
| Product: | Lithium Tantalate (LiTaO3) Crystal | Material: | Stoichiometric LiTaO3 |
|---|---|---|---|
| Orientation: | X-cut | Surface: | DSP, SSP |
| Size: | 4" | Thickness: | 0.25mm, 0.35mm, 0.5mm, 1mm |
| Primary Flat: | 22±2mm, 32±2mm | Application: | Holographic Information Storage |
| Highlight: | Stoichiometric LiTaO3 Wafer,High Capacity Holographic Information Solution Wafer |
||
Product Description

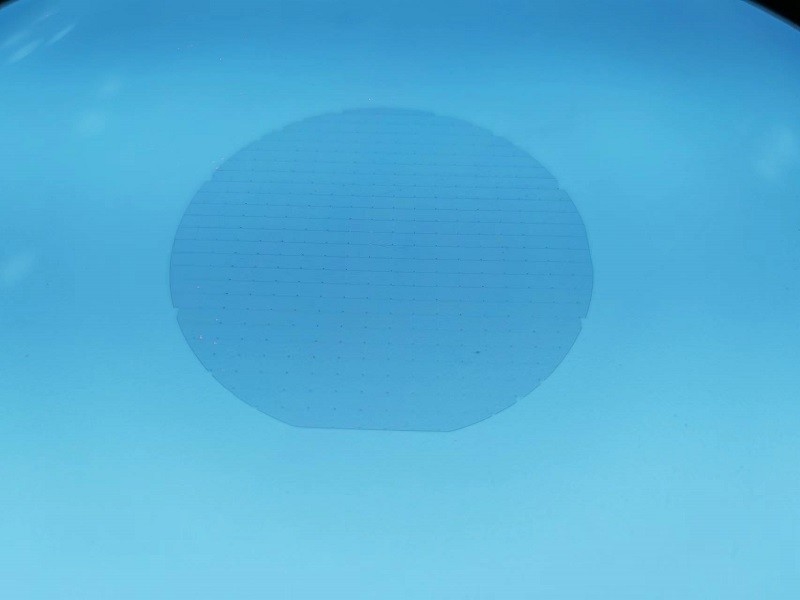

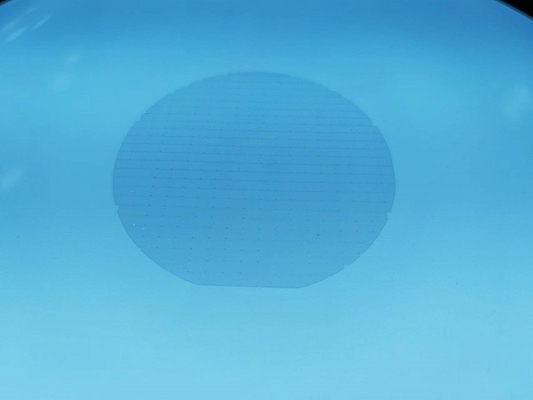

High-Capacity Holographic Information Solution Stoichiometric LiTaO3 Wafer
Lstoichiometric LiTaO3 wafers, the epitome of precision and performance for optoelectronic and microwave applications. Carefully crafted to meet the strictest stoichiometric ratios, these wafers offer unparalleled quality and reliability for a wide range of cutting-edge technologies.
Our LiTaO3 wafers boast exceptional optical and electro-optic properties, making them the ideal choice for devices requiring high-speed modulation, frequency conversion, and optical switching. Their low loss and high nonlinearity enable efficient signal processing and manipulation, critical for applications in telecommunications, sensors, and laser systems.
The precise stoichiometric control during the manufacturing process ensures that our wafers exhibit minimal defects and impurities, guaranteeing optimal performance in even the most demanding environments. This attention to detail is reflected in their exceptional uniformity and repeatability, making them the preferred material for research and development as well as high-volume production.
Moreover, the unique properties of LiTaO3, such as its wide transparency window and high birefringence, make it an ideal candidate for applications in nonlinear optics, acousto-optics, and quantum optics. Its high piezoelectric coefficient also renders it useful in ultrasonic transducers and other devices that require efficient energy conversion.
The durability and stability of our stoichiometric LiTaO3 wafers ensure long-term reliability and consistent performance, reducing maintenance costs and increasing overall system efficiency. Whether you're developing next-generation optical devices or enhancing existing ones, our wafers offer the performance you need to stay ahead of the curve.
Experience the precision and performance of our premium stoichiometric LiTaO3 wafers firsthand. Contact us today to learn more about how our wafers can transform your product offerings and empower your business with the latest in optoelectronic and microwave technology.
|
Diameter |
76.2±0.2mm |
100±0.2mm |
150±0.2mm |
||||
|
Primary Flat |
22±1mm |
32±1mm |
47.5mm, 57.5mm, Notch |
||||
|
Orientation |
36°Y, 42°Y, X-112°Y, Y, Z |
||||||
|
Thickness |
0.07mm~1.0mm |
0.1mm~1.0mm |
0.35mm~1.0mm |
||||
|
Surface finish |
Single / Double side polish / Double side lapped |
||||||
|
TTV |
< 1~5µm |
||||||
|
BOW |
± (20µm ~40um ) |
||||||
|
Warp |
<= 20µm ~ 50µm |
||||||
|
LTV (5mmx5mm) |
<1.5 um |
||||||
|
PLTV(<0.5um) |
≥98% (5mm*5mm) with 2mm edge excluded |
||||||
|
Polished side Ra |
Roughness Ra<=5A |
||||||
|
Back Side Criteria |
Roughness Ra:0.5-1.0µm, GC#1000 |
||||||
|
Scratch & Dig (S/D) |
20/10, 40/20, 60/40 |
||||||
|
Edge Profile |
Compl't with SEMI M1.2@with GC800# .regular at C typed |
||||||
|
Cracks, saw marks, stains |
None |
||||||
|
Properties |
LiTaO3 (LT) |
|
Type of Material |
Single Crystal |
|
Crystal Structure |
Trigonal,a = 5.154, c = 13.784Å |
|
Melting Point |
1650℃ |
|
Curie Temperature |
607℃ |
|
Transmission Range |
400 – 5000 nm |
|
Absorption edge |
270nm |
|
Absorption loss |
< 0.15 %/cm @ 1064 nm |
|
Refractive Index |
no=2.176,ne=2.180(at 0.633 µm) |
|
no=2.131,ne=2.134(at 1.2 µm) |
|
|
Density |
7.45g/cm3 |
|
Thermal Conductivity |
8.78x 10-7 m2/sec |
|
Optical homogeneity |
~10-5 |
|
Hardness (Mohs) |
5 |
|
Elastic Coefficient |
CE11 2.33(X 1011 N/m2) |
|
CE33 2.77(X 1011 N/m2) |
|
|
Dielectric Constant |
ε11/ε0 52.7 |
|
ε33/ε0 44.5 |
|
|
Solubility in Water |
insoluble in water |
|
NLO Coefficients |
d33 = 13.8 pm/V |
|
d22= 2.4 pm/V |
|
|
d11= 0.85 pm/V |
|
|
Electro-Optic Coefficients |
r31 =8.4 pm/V, @633nm |
|
r22 =20 pm/V, @633nm |
|
|
r33 =30.5 pm/V, @633nm |
|
|
Damage Threshold |
2 MW/cm2@532nm |
