Highly Accurate Single Crystal Quartz Wafer For TCXO And VCXO Applications
Product Details:
| Place of Origin: | China |
| Brand Name: | CSIMC |
| Certification: | ISO:14001 |
| Model Number: | Single Crystal Quartz |
Payment & Shipping Terms:
| Minimum Order Quantity: | 50 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Cassette / Jar, put in a carton with PE foam. |
| Delivery Time: | 1-4 weeks |
| Payment Terms: | T/T |
| Supply Ability: | 200000 pcs / Month |
|
Detail Information |
|||
| Product: | Crystal Quartz Blank | Frequency: | 1MHz~70MHz By Etching |
|---|---|---|---|
| Rotation: | AT-cut, BT-cut,CT-cut Etc. | θ Tolerance: | ±10″, ±15″, ±30″, ±1′, ±2′, …, Etc. |
| Dia: | Φ5mm,6mm,8mm, 10mm；20×20mm Etc. | Overtone: | Fundamental; 3rd Overtone; 5th Overtone |
| Surface Finish: | #1000(9u); #2000(7u); #3000(5u); #4000(3u) (SiC); Polished(Cerium Oxide）& Etched Std | Dioptric: | Plano-Plano, Plano-Convex, Bi-Convex |
| Highlight: | VCXO Single Crystal Quartz Wafer,TCXO Single Crystal Quartz Wafer,Highly Accurate Single Crystal Quartz Wafer |
||
Product Description

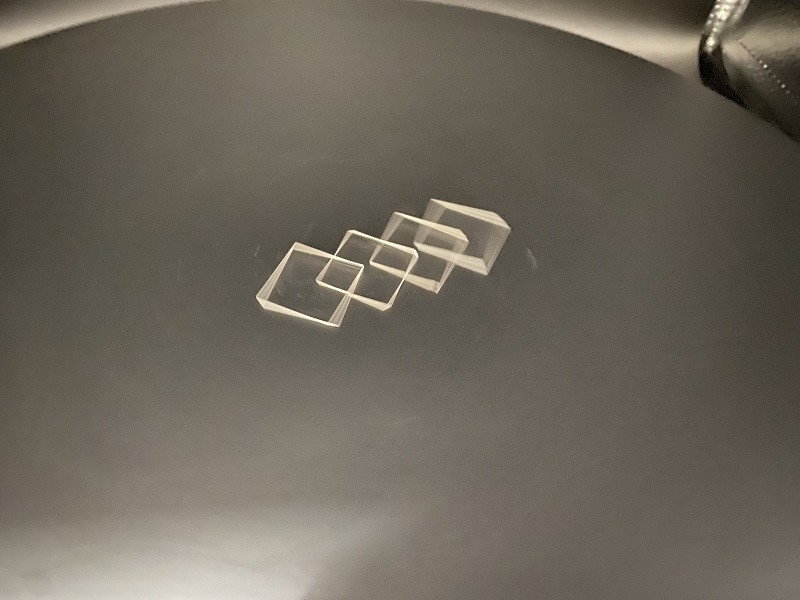

Highly Accurate Single Crystal Quartz Wafer for TCXO and VCXO Applications
timekeeping in modern electronics. Crafted from the purest quartz crystals, these frequency discs embody the essence of accuracy and stability, setting the standard for high-performance oscillators and resonators.
At the heart of every electronic device that requires precise timing, our single-crystal quartz frequency discs thrive. Their innate piezoelectric properties allow them to convert mechanical vibrations into electrical signals with unparalleled precision, ensuring that clocks, watches, radios, computers, and more stay synchronized to the millisecond.
Designed for long-term reliability and durability, our frequency discs undergo rigorous quality control measures to eliminate any imperfections or impurities. This attention to detail guarantees consistent performance over extended periods, even under harsh environmental conditions.
The superior temperature stability of our quartz crystals ensures that frequency variations remain minimal, safeguarding against time drift and maintaining accuracy across a wide range of operating temperatures. This feature is particularly crucial in critical applications such as telecommunications, navigation systems, and medical equipment.
Furthermore, our single-crystal quartz frequency discs offer exceptional aging characteristics, ensuring that their performance remains consistent over the years. This makes them the preferred choice for devices that require long-term accuracy and reliability.
Experience the precision and reliability that only our premium single-crystal quartz frequency discs can deliver. Upgrade your products with the latest in timekeeping technology and give your customers the confidence that comes with knowing their devices are powered by the finest materials available. Contact us now to learn more about how our frequency discs can enhance your product offerings and boost your brand's reputation for excellence.
|
Orientation |
AT-Cut, etc |
|
Angle Tolerance |
Theta Angle: ±5″, ±10″, ±15″, ±30″, ±1′, ±2′, …, etc. |
|
Phi Angle: ±5′, ±10′, ±15′, ±30′, …, etc. |
|
|
Size |
Round (3.0mm～8”)/ Square (1.6x1.6mm～48x48mm or larger)/ SMD (1.2x2.4mm Above) |
|
Size Tolerance |
±0.01mm,+/-0.005mm, +/-0.0005mm, according to size |
|
Frequency |
1 Mhz up to 54Mhz for AT-Cut Fundamental; Up to 70Mhz by Etching |
|
Flat |
Per requested: the flat shall be perpendicular to X axis within ±10 deg |
|
Surface |
#1000(9u); #2000(7u); #3000(5u); #4000(3u) (SiC); Polished(Cerium Oxide)& etched Std |
|
Overtone |
Fundamental; Third Overtone (3rd); Fifth Overtone (5th) |
|
Dioptric |
Plano-Convex: 0.5 dioptric～10 dioptric Bi-Convex: 10 dioptric～15 dioptric |
|
Material |
Cultured Quartz Crystal |
|
Q-Value |
Min 1.8x10^6, 2.4x10^6 to 3.0x10^6 IEC standards |
|
ECD |
Max 2 /c㎡, 10/c㎡, Max 30/c㎡, Max 100/c㎡, Max 300/c㎡; Swept Quartz |
|
Inclusions |
Ia, Ib, I, II, III Grades |
|
Grade |
Z bar, Y bar, Or Swept quartz |
