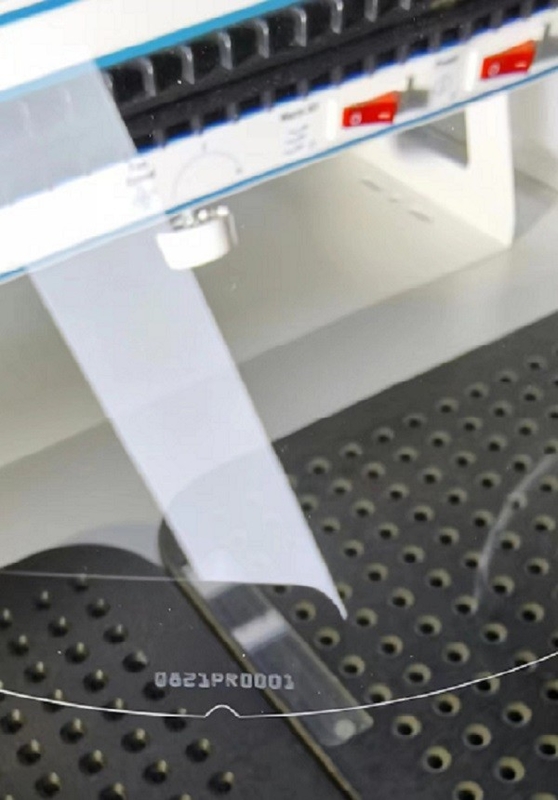

Highly Durable Single Crystal Quartz Wafer With Superior Thermal And Optical Properties
Product Details:
| Place of Origin: | China |
| Brand Name: | CSIMC |
| Certification: | ISO:14001 |
| Model Number: | Single Crystal Quartz |
Payment & Shipping Terms:
| Minimum Order Quantity: | 5 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Cassette / Jar, put in a carton with PE foam. |
| Delivery Time: | 1-4 weeks |
| Payment Terms: | T/T |
| Supply Ability: | 100000 pcs / Month |
|
Detail Information |
|||
| Material: | Single Crystal Quartz | Dia: | 2inch 3inch 4inch 6inch |
|---|---|---|---|
| Orientation: | AT-cut, ST-cut, Z-cut, X-cut | Thickness: | 200um, 350um, 500um 1000um |
| Surface: | Polish, Lap, Etch | Usage: | Surface Acoustic Wave |
| Ra: | <1nm | Growth: | Hydrothermal Growth |
| Highlight: | Highly Durable Quartz Wafer,Single Crystal Quartz Wafer,Superior Thermal Quartz Wafer |
||
Product Description
Highly Durable Single Crystal Quartz Wafer with Superior Thermal and Optical Properties
semiconductor and optical industries. Crafted from the purest quartz minerals, our wafers boast unparalleled crystalline structure, ensuring superior performance and stability in even the most demanding applications.
Each wafer undergoes rigorous purification processes to eliminate impurities, resulting in a flawless surface finish that enhances optical transparency and minimizes scattering. This makes them ideal for use in high-precision optical components, sensors, and windows, where clarity and precision are paramount.
Our advanced manufacturing techniques guarantee consistent dimensional accuracy and flatness, vital for seamless integration into complex systems. Whether you're developing cutting-edge semiconductor devices, advanced photonics equipment, or high-resolution imaging solutions, our single-crystal quartz wafers are the reliable foundation you need.
Moreover, quartz's inherent properties of high thermal conductivity, low coefficient of thermal expansion, and resistance to radiation damage make it an ideal material for extreme environments. This versatility sets our wafers apart, enabling them to excel in aerospace, defense, and scientific research applications where durability and performance under extreme conditions are essential.
Experience the precision and reliability of our single-crystal quartz wafers and elevate your product's performance to new heights. Contact us today to learn more about how our wafers can transform your projects and propel your business forward.
| Material | Single Crystal Quartz Wafer | ||||
| Q-Value | Min 1.8×10^6, 2.4×10^6, 3.0×10^6 (IEC standards) | ||||
| ECD |
2/cm2,10/ cm2,30/ cm2,100/ cm2,300/cm2； Swept Quartz (IEC standards) |
||||
| Inclusions | Ia,Ib,I, II,III Grades (IEC standards) | ||||
| Orientation | X, Y, Z, AT, ST, BT, CT, ET ,DT, GT, NT, FC, SC, IT, etc. | ||||
| Diameter | 2 inch 50.8mm |
3 inch 76.2mm |
4 inch 100mm |
6 inch 150mm |
8 inch 200mm |
| Tolerance | ±0.2mm | ±0.2mm | ±0.2mm | ±0.2mm | ±0.2mm |
| Thickness Tolerance |
±0.025mm | ±0.025mm | ±0.025mm | ±0.025mm | ±0.025mm |
| Seed | seedless for any cut Or with seed |
seedless for Z-cut Other cut with seed |
|||
| Primary Flat | 16±2mm | 22±2mm | 32±2mm | 47.5±2mm 57.5±2mm |
57.5±2mm |
| Notch | - | - | - | 1~1.25mm 89~95° |
1~1.25mm 89~95° |
| S/D | 40/20 | 60/40 | 60/40 | 60/40 | 60/40 |
| TTV | <1.5um | <5um | <5um | <5um | <5um |
| PLTV | >95% | >95% | >95% | >95% | >95% |
| Warp | <9um | <15um | <30um | <50um | <70um |
| Bow | <9um | <15um | <30um | <40um | <60um |
| Ra | <0.5nm | <1nm | <1nm | <1nm | <1nm |
FAQs:
- Q: What are the products you mainly work on?
A: We look at ourselves as the piezo wafer specialist. We are the very first to work with Single Crystal Quartz in China about 30 years ago. Then gradually we step in the field of LiNbO3, LiTaO3, Quartz glass, LGS, CTGS etc. Especially, if you are looking for a piezo quartz supplier, we are the ultimate choice! We export millions of quartz blanks each year because we master the AT, SC and IT cuts with superior angle precision.
- Q: Can you accept product customization?
A: Yes, of course. We can fabricate as per your request. In addition, we are so experienced with piezo wafers that we can provide you relevant suggestions if you are not 100% sure about your choice. Besides, we do have some standard wafers in stock, please check with us.
- Q: Can you deliver the goods via our courier agent?
A: Yes, we would suggest you go with the courier agent you are most familiar with (DHL, FedEX, UPS etc.). We can ship via your account. And, of course, we will pack the products safely in acceptable size to help you save the shipping cost. If you need us to take care of the freight, it’s also not a problem. We also have good discount with the international courier companies.
- Q: How can you guarantee we get what we want safely?
A: The wafer products are fragile and sometimes expensive. The last thing, as the manufacturer, we want to see is the products we make were damaged during courier. As a result, we will pack the wafers adequately and put them in a proper carton filled with buffer sponge. However, accidents are inevitable sometimes. So, please follow the “Acceptance check” steps shown in the drawings below. If the unwanted happened, we will either give the replenishment or refund if you follow the checking steps.
- Q: Can we visit your factory?
A: Sure. Factory inspection is important for large quantity purchase and long-term cooperation. Face to face discussion is what we mostly confident with. During the past years, big names around the world have witnessed our progress in factory build-up. These days, due to the Covid-19 pandemic, we also had the experience of videoconferencing with global buyers.
Acceptance Check
