High Thermal Conductivity LiTaO3 Wafer For High-Power-Frequency Converters
Product Details:
| Place of Origin: | China |
| Brand Name: | CSIMC |
| Certification: | ISO:9001, ISO:14001 |
| Model Number: | Lithium Tantalate (LiTaO3) |
Payment & Shipping Terms:
| Minimum Order Quantity: | 5 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Cassette/ Jar package, vaccum sealed |
| Delivery Time: | 1-4 weeks |
| Payment Terms: | T/T |
| Supply Ability: | 20000 pcs/Month |
|
Detail Information |
|||
| Material: | Lithium Tantalate Wafer | Grade: | SAW Grade, Optical Grade |
|---|---|---|---|
| Diameter: | 3inch, 4inch | Cut Type: | 42Y-cut, 36Y-cut, 28Y-cut, Etc. |
| Thickness: | 0.35mm, 0.5mm As Required | Surface Finish: | DSP, SSP, Lap As Required |
| Roughness: | Ra<10A, Ra<5A | Application: | Telecom Mobile Phone Market |
| Highlight: | High Power Frequency LiTaO3 Wafer,High Thermal Conductivity LiTaO3 Wafer,High Power LiTaO3 Wafer |
||
Product Description

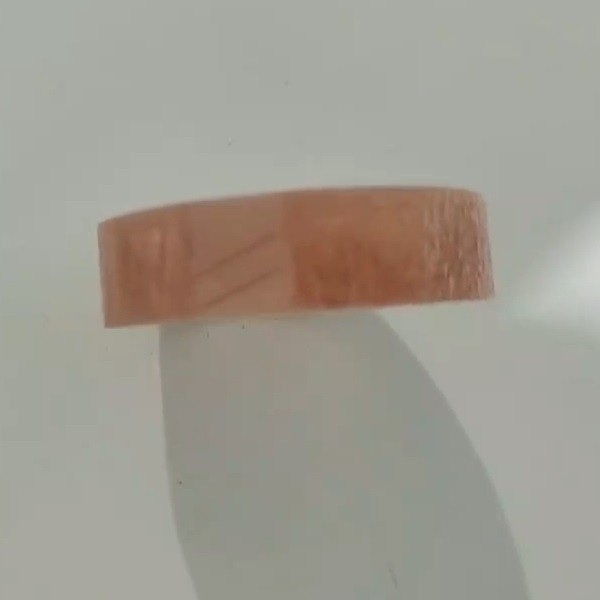

High Thermal Conductivity LiTaO3 Wafer for High-Power-Frequency Converters
Push the boundaries of technology with our cutting-edge LiTaO3 Wafers. As a premier material for high-frequency electronic devices, our wafers offer unparalleled performance and versatility.
LiTaO3, also known as Lithium Tantalate, is renowned for its exceptional piezoelectric, pyroelectric, and nonlinear optical properties. These unique characteristics make our wafers ideal for a wide range of applications, including surface acoustic wave (SAW) filters, optical modulators, and frequency converters.
Our LiTaO3 Wafers are crafted from the finest raw materials using advanced manufacturing techniques. This ensures high crystal quality, low defect density, and precise dimensional control. The result is a wafer that delivers outstanding performance and reliability in even the most demanding applications.
In the field of high-frequency electronics, our LiTaO3 Wafers enable the development of SAW filters with superior selectivity, insertion loss, and temperature stability. These filters are essential for communication systems, radar, and other advanced electronic devices.
For optical applications, our wafers exhibit strong nonlinear optical effects, making them ideal for optical modulators and frequency converters. This enables efficient manipulation of light signals, paving the way for faster, more efficient optical communication systems.
Trust our expertise in LiTaO3 wafer manufacturing to bring your projects to the forefront of technological innovation. Contact us today to learn more about how our wafers can enhance the performance of your electronic and optical devices.
|
Transmission Range |
0.275 - 5.25 µm (thickness 8 mm); High transmittance from 0.4 – 4um |
|
Refractive Index |
no = 2.139, ne = 2.139 @633 nm |
|
Reflection Loss |
13.17%@0.633 µm |
|
Density |
7.4564 g/cm3 |
|
Melting point |
1650°C |
|
Molecular Weight |
235.89 |
|
Thermal Conductivity |
4.6 W/m·K ; 8.78 W/m·K |
|
Spec. Heat Capacity |
424 J/(K·kg) |
|
Hardness (Mohs) |
750 |
|
Application |
electro optic Q-switch, integrated optical substrate, sensor, frequency converter |
|
Material |
3" 4" 6" Lithium Tantalate wafer Saw/Optical grade |
||
|
Curie Temp |
605°C±3°C |
||
|
Doped with |
Fe |
||
|
Single Domain |
Completed Polarization / Reduced |
||
|
Orientation |
36°Y, 42°Y, X-112°Y, Y, Z |
||
|
Diameter |
76.2±0.2mm |
100±0.2mm |
150±0.2mm |
|
Primary Flat |
22±1mm |
32±1mm |
47.5mm, 57.5mm, Notch |
|
Thickness |
0.07mm~1.0mm |
0.1mm~1.0mm |
0.35mm~1.0mm |
|
Surface finish |
Single / Double side polish / Double side lapped |
||
|
TTV |
< 1~5µm |
||
|
BOW |
± (20µm ~40um ) |
||
|
Warp |
<= 20µm ~ 50µm |
||
|
LTV (5mmx5mm) |
<1.5 um |
||
|
PLTV(<0.5um) |
≥98% (5mm*5mm) with 2mm edge excluded |
||
|
Polished side Ra |
Roughness Ra<=5A |
||
|
Back Side Criteria |
Roughness Ra:0.5-1.0µm, GC#1000 |
||
|
Scratch & Dig (S/D) |
20/10, 40/20, 60/40 |
||
|
Edge Profile |
Compl't with SEMI M1.2@with GC800# .regular at C typed |
||
|
Cracks, saw marks, stains |
None |
||
