C-plane 0001 Orientation C-plane Sapphire Wafer With A-plane 11-20 Primary Flat
Product Details:
| Place of Origin: | China |
| Brand Name: | CSIMC |
| Certification: | ISO:9001 |
| Model Number: | Sapphire (Al2O3) |
Payment & Shipping Terms:
| Minimum Order Quantity: | 5 Pieces |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Cassette, Jar, Film package |
| Delivery Time: | 1-4 weeks |
| Payment Terms: | T/T |
| Supply Ability: | 10000 pieces/Month |
|
Detail Information |
|||
| Material: | Al2O3 Crystal | Purity: | 99.999％ |
|---|---|---|---|
| Color: | White, Transparent | Diameter: | 2" 3" 4" |
| Melting Point: | 2040 Degrees C | Young's Modulus (E): | 335 GPa |
| Shear Modulus (G): | 148.1 GPa | Hardness: | Knoop 2000 Kg/mm 2 With 2000g Indenter |
| Highlight: | C-plane Sapphire Wafer,C-plane 0001 Orientation Sapphire Wafer |
||
Product Description

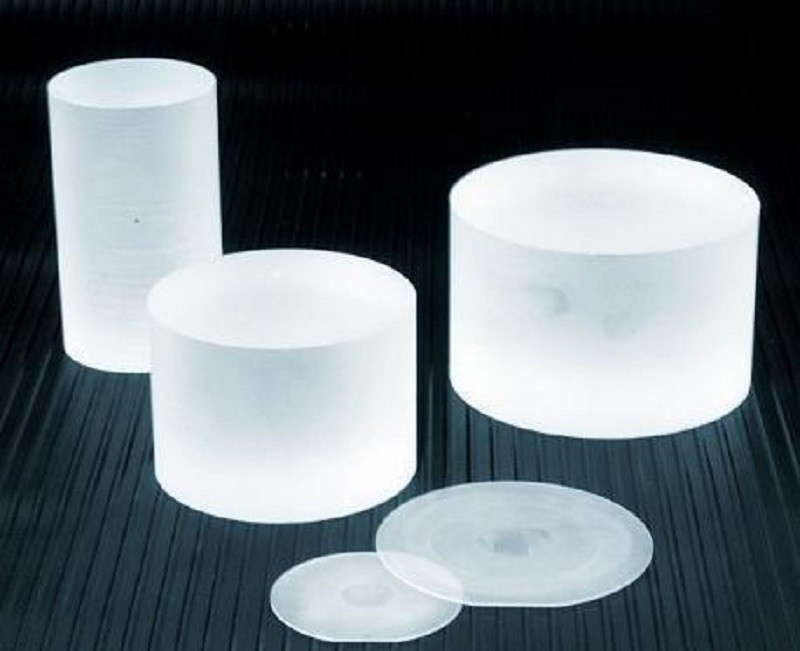

C-plane 0001 Orientation C-plane Sapphire Wafer with A-plane 11-20 Primary Flat
Unlock the full potential of your semiconductor, LED, and optical applications with our elite Sapphire Wafers. Crafted from the purest sapphire crystal, our wafers embody strength, durability, and optical excellence.
Our Sapphire Wafers are renowned for their exceptional thermal conductivity, ensuring efficient heat dissipation and enhanced device performance. Their unparalleled hardness and resistance to scratching, abrasion, and chemical attack make them the ideal substrate for high-end microelectronics, power devices, and high-brightness LEDs.
With superior optical clarity and wide transparency window, our wafers are perfect for optical components requiring maximum light transmission and resistance to harsh environments. From windows and lenses to filters and mirrors, our Sapphire Wafers deliver unparalleled performance.
We take pride in our commitment to quality, ensuring every wafer meets the highest standards of purity, flatness, and parallelism. Our state-of-the-art manufacturing processes and rigorous testing protocols guarantee consistent results and customer satisfaction.
Invest in the future of your technology with our Sapphire Wafers. Experience the benefits of sapphire's unique properties and elevate your products to new heights of performance and reliability. Contact us today to learn more about how our Sapphire Wafers can empower your next-generation innovations.
OPTICAL PROPERTIES
|
Transmission |
0.17 to 5.5 um |
|
Refractive Index |
1.75449 (o) 1.74663 (e) at 1.06 um |
|
Reflection Loss |
at 1.06 microns (2 surfaces) for o-ray - 11.7%; for e-ray - 14.2% |
|
Absorption Index |
0.3 x 10-3 cm-1 at 2.4 um |
|
dN/dT |
13.7 x 10-6 at 5.4 um |
|
dn/dm = 0 |
1.5 um |
|
Orientation |
R-plane, C-plane, A-plane, M-plane or a specified orientation |
|
Orientation Tolerance |
± 0.3° |
|
Diameter |
2 inches, 3 inches, 4 inches, 6 inches, 8 inches or others |
|
Diameter Tolerance |
0.1mm for 2 inches, 0.2mm for 3 inches, 0.3mm for 4 inches, 0.5mm for 6 inches |
|
Thickness |
0.25mm, 0.33mm, 0.43mm, 0.65mm, 1mm or others; |
|
Thickness Tolerance |
25μm |
|
Primary Flat Length |
16.0±1.0mm for 2 inches, 22.0±1.0mm for 3 inches, 30.0±1.5mm for 4 inches, 47.5/50.0±2.0mm for 6 inches |
|
Primary Flat Orientation |
A-plane (1 1-2 0 ) ± 0.2°; C-plane (0 0-0 1 ) ± 0.2°, Projected C-Axis 45 +/- 2° |
|
TTV |
≤10µm for 2 inches, ≤15µm for 3 inches, ≤20µm for 4 inches, ≤25µm for 6 inches |
|
BOW |
≤10µm for 2 inches, ≤15µm for 3 inches, ≤20µm for 4 inches, ≤25µm for 6 inches |
|
Front Surface |
Epi-Polished (Ra< 0.3nm for C-plane, 0.5nm for other orientations) |
|
Back Surface |
Fine ground (Ra=0.6μm~1.4μm) or Epi-polished |
|
Packaging |
Packaged in a class 100 clean room environment |
Acceptance Check
1. The product is fragile. We have adequately packed it and labeled it fragile. We deliver through excellent domestic and international express companies to ensure transportation quality.
2. After receiving the goods, please handle with care and check whether the outer carton is in good condition. Carefully open the outer carton and check whether the packing boxes are in alignment. Take a picture before you take them out.
3. Please open the vacuum package in a clean room when the products are to be applied.
4. If the products are found damaged during courier, please take a picture or record a video immediately. DO NOT take the damaged products out of the packaging box! Contact us immediately and we will solve the problem well.
