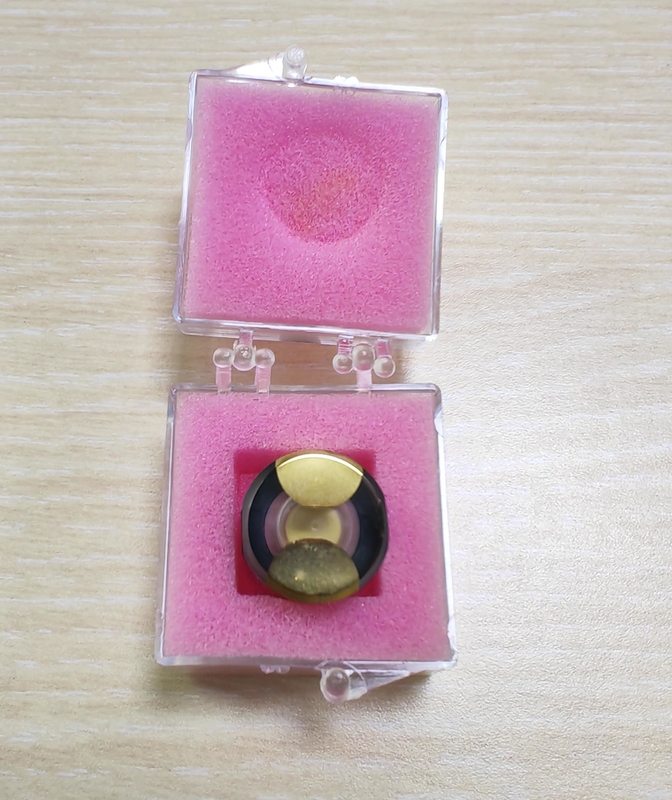

Quartz End Caps For High-Temperature And High-Pressure Applications
Product Details:
| Place of Origin: | China |
| Brand Name: | CSIMC |
| Certification: | ISO:9001, ISO:14001 |
| Model Number: | Quartz Sensor |
Payment & Shipping Terms:
| Minimum Order Quantity: | 20 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Cassette/ Jar package, vaccum sealed |
| Delivery Time: | 1-4 weeks |
| Payment Terms: | T/T |
| Supply Ability: | 50000 pcs/Month |
|
Detail Information |
|||
| Product: | Quartz Endcap | Material: | α Quartz |
|---|---|---|---|
| Orientation: | Coated AT Quartz Blank | Mode: | Dual-mode Thickness-Shear |
| Sealing: | Glass Frit | Applications: | Downhole Detection |
| Highlight: | High-Temperature Quartz End Caps,High-Pressure Quartz End Caps |
||
Product Description
Quartz End Caps The Ideal Choice for High-Temperature and High-Pressure Applications
Experience unparalleled precision and durability with our cutting-edge Quartz End Caps. Crafted from high-purity quartz, these end caps offer exceptional thermal stability and resistance to chemical corrosion, making them ideal for a wide range of applications.
Quartz End Caps are designed to provide a seamless and secure connection in your system, ensuring minimal signal loss and maximum performance. Their precision-machined surfaces and tight tolerances guarantee a reliable and consistent performance, even in the most demanding environments.
Our Quartz End Caps are available in various sizes and configurations to cater to your specific needs. Whether you're working on high-power RF systems, optical fiber assemblies, or other precision applications, our Quartz End Caps deliver the robustness and reliability you need to succeed.
Upgrade your system's performance and reliability with Quartz End Caps. Contact us today to learn more about our products and how they can enhance your applications. With our commitment to quality and innovation, you can trust that Quartz End Caps will meet and exceed your expectations.
| Materials | Single Quartz Blanks (both Piezo / Optical grade) |
| Materials | Both Pure Z and Y Bar available |
| Synthetic Q-Value | Min 1.8x10^6, 2.4x10^6 to 3.0x10^6 IEC standards |
| ECD | Max 100/c㎡, Max 300/c㎡; or per Customer’s request |
| Inclusions Density | I, II, III Grades |
| Cuts Type ( orientation) | AT, BT, CT, ET ,DT, GT, NT, FC, SC, IT, AC ,BC ,ST .TS MT ,NT RT …, etc per requested |
| Angle Tolerance(±) | Theta Angle: ±5″, ±10″, ±15″, ±30″, ±1′, ±2′, … , etc |
| Phi Angle:±5′, ±10′, ±15′, ±30′, … , etc | |
| Size For Round endcaps | From 10.0mm to 15.00mm (with flat) , 13.80mm as typical one |
| Height / Thickness | 5.00-7.00 mm per requested |
| Flat | Per requested the flat shall be perpendicular to X axis within ±10 deg |
| Surface Finishing | #1000(9u); #2000(7u); #3000(5u); #4000(3u) (Sic); Polished(Cerium oxide)& etched Std |
Packing and Shipping:
Our Piezoelectric Quartz Endcaps are carefully packed in a sealed and secure container with an anti-static layer and moisture barrier to ensure that it arrives securely and undamaged.
The container is then sealed and labeled with a unique identification number for tracking purposes.
We offer both domestic and international shipping options, with the latter requiring additional paperwork. We also provide a tracking number for all domestic shipments.
For further inquiries about our packaging and shipping services, please contact our customer service team.
