Quartz End Caps For High-Temperature And High-Pressure Applications
Product Details:
| Place of Origin: | China |
| Brand Name: | CSIMC |
| Certification: | ISO:9001, ISO:14001 |
| Model Number: | Quartz Sensor |
Payment & Shipping Terms:
| Minimum Order Quantity: | 20 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Cassette/ Jar package, vaccum sealed |
| Delivery Time: | 1-4 weeks |
| Payment Terms: | T/T |
| Supply Ability: | 50000 pcs/Month |
|
Detail Information |
|||
| Product: | Quartz Endcap | Material: | α Quartz |
|---|---|---|---|
| Orientation: | Coated AT Quartz Blank | Mode: | Dual-mode Thickness-Shear |
| Coating: | Au And Cr | Applications: | Downhole Detection |
| Highlight: | High Temperature Quartz End Caps,High Pressure Quartz End Caps |
||
Product Description

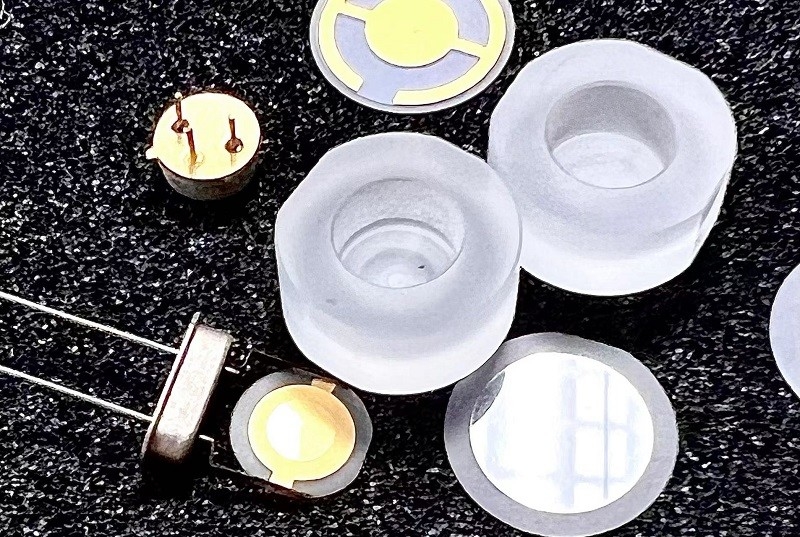

Quartz End Caps The Perfect Fit for High-Temperature and High-Pressure Applications
A Versatile Solution for Precision Applications
Quartz end caps, crafted from the purest form of silica, represent an exquisite blend of durability and precision engineering. These precision-made components find their niche in a myriad of high-tech industries, where their unique properties make them indispensable. Known for their exceptional resistance to thermal shock, quartz end caps can withstand extreme temperature fluctuations without cracking or deforming, ensuring stability and reliability in demanding environments.
Their inherent transparency to ultraviolet, visible, and infrared light makes them ideal for optical applications, allowing seamless transmission of light signals without distortion. In addition, quartz's low coefficient of thermal expansion ensures dimensional stability even under intense heat, making it a preferred material for scientific instruments, lasers, and semiconductor manufacturing equipment.
The use of quartz end caps also extends to the chemical industry, where their resistance to most acids and alkalis ensures long-term performance in corrosive environments. Furthermore, their non-porous surface prevents contamination, making them suitable for pharmaceutical and biotechnology processes requiring strict hygiene standards.
In summary, quartz end caps are a versatile and reliable solution, offering unmatched performance in a wide range of precision applications. Their unique combination of properties makes them an invaluable asset for industries pushing the boundaries of technology and innovation.
| Materials | Single Quartz Blanks (both Piezo / Optical grade) |
| Materials | Both Pure Z and Y Bar available |
| Synthetic Q-Value | Min 1.8x10^6, 2.4x10^6 to 3.0x10^6 IEC standards |
| ECD | Max 100/c㎡, Max 300/c㎡; or per Customer’s request |
| Inclusions Density | I, II, III Grades |
| Cuts Type ( orientation) | AT, BT, CT, ET ,DT, GT, NT, FC, SC, IT, AC ,BC ,ST .TS MT ,NT RT …, etc per requested |
| Angle Tolerance(±) | Theta Angle: ±5″, ±10″, ±15″, ±30″, ±1′, ±2′, … , etc |
| Phi Angle:±5′, ±10′, ±15′, ±30′, … , etc | |
| Size For Round endcaps | From 10.0mm to 15.00mm (with flat) , 13.80mm as typical one |
| Height / Thickness | 5.00-7.00 mm per requested |
| Flat | Per requested the flat shall be perpendicular to X axis within ±10 deg |
| Surface Finishing | #1000(9u); #2000(7u); #3000(5u); #4000(3u) (Sic); Polished(Cerium oxide)& etched Std |
Packing and Shipping:
Our Piezoelectric Quartz Endcaps are carefully packed in a sealed and secure container with an anti-static layer and moisture barrier to ensure that it arrives securely and undamaged.
The container is then sealed and labeled with a unique identification number for tracking purposes.
We offer both domestic and international shipping options, with the latter requiring additional paperwork. We also provide a tracking number for all domestic shipments.
For further inquiries about our packaging and shipping services, please contact our customer service team.
