Material: Borofloat 33 Glass Substrate Type: Borosilicate
Brand: Schott Brorofloat 33 Use: Semiconductor, MEMS
Diameter: 100mm 150mm 200mm Thickness: 0.35mm 0.5mm, 0.725mm, 1mm
ApSemiconductor, MEMSplication: Electronics, Optics, And Semiconductors Surface Finish: DSP SSP
Highlight:

Borofloat 33 Glass Substrate

,

High Temperature MEMS Glass Substrate

,

Semiconductor Applications Glass Substrate

Product Description

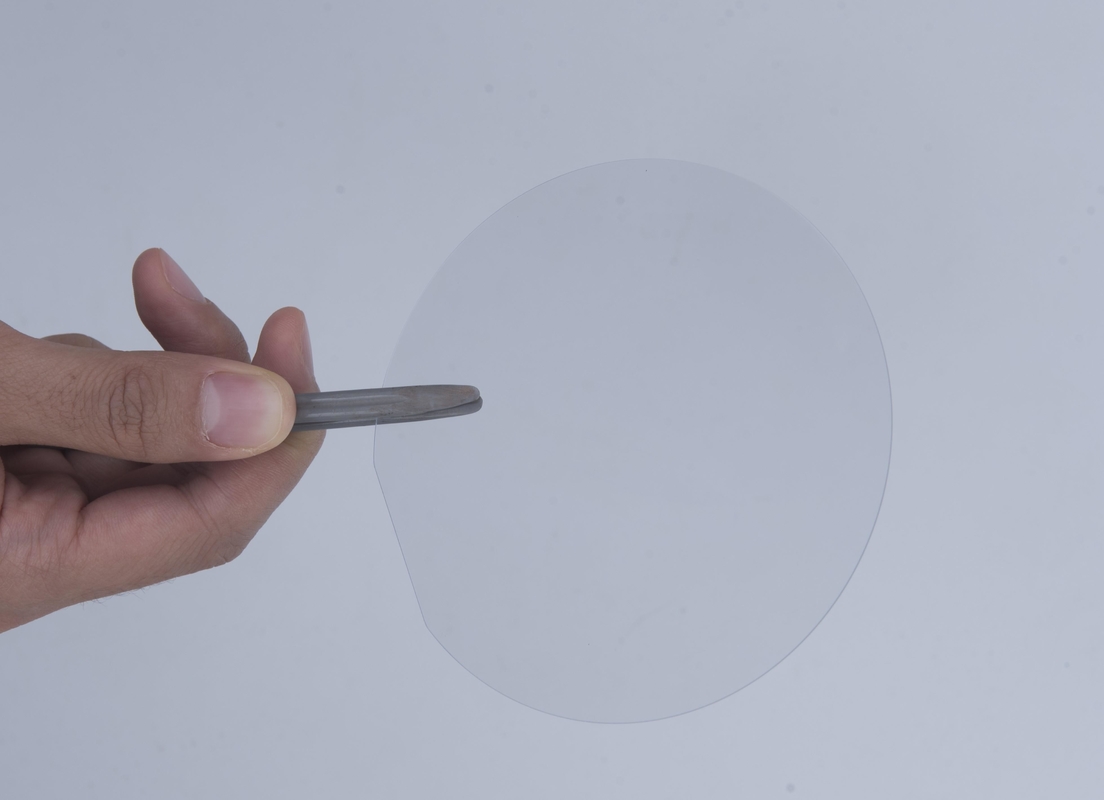

Borofloat 33 Glass Substrate for High-Temperature Applications and Precision Operations



The Epitome of Precision & Durability in Glass Solutions

Elevate your product designs to new heights with Borofloat 33 – the ultimate choice for demanding applications where clarity, thermal stability, and chemical resistance are paramount. Crafted from the finest borosilicate glass, Borofloat 33 boasts unparalleled optical clarity, ensuring pristine image quality and minimal distortion. Its exceptional thermal shock resistance makes it the go-to material for high-tech industries like semiconductors, optics, and flat panel displays.

Designed for durability, Borofloat 33 withstands extreme temperature fluctuations without cracking or warping, ensuring reliable performance in even the most challenging environments. Its chemical inertness protects against corrosive agents, extending product lifespan and reducing maintenance costs.

Innovate with confidence – Borofloat 33's precise surface flatness and low coefficient of thermal expansion guarantee tight tolerances and seamless integration into your advanced systems. From aerospace to medical devices, this versatile glass sets the standard for excellence.

Experience the future of glass technology today. Choose Borofloat 33 for your next project and unlock a world of possibilities.



High Temperature Borofloat 33 Glass Substrate For MEMS And Semiconductor Applications 0High Temperature Borofloat 33 Glass Substrate For MEMS And Semiconductor Applications 1High Temperature Borofloat 33 Glass Substrate For MEMS And Semiconductor Applications 2



Product

BOROFLOAT 33

Density

2.23 g/cm3

Modulus of Elasticity

63 kN/mm2

Knoop Hardness HK 0.1/20

480

Poisson’s Ratio

0.2

Dielectric Constant (@ 1 MHz & 25°C)

4.6

Loss Tangent (@ 1 MHz & 25°C)

37 x 10-4

Dielectric Strength(@ 50 Hz & 25°C)

16 kV/mm

Refractive Index

1.472

Dispersion (nF - nC)

71.9 x 10-4



Parameter

3”

4”

5"

6"

8"

Diameter

76.2mm

100mm

125mm

150mm

200mm

Tolerance

±0.2mm

Thickness

>0.08mm

>0.10mm

>0.30mm

>0.35mm

>0.35mm

Primary Flat

22mm

32.5mm

42.5mm

57.5mm

Notch

Notch

TTV

<5um

<5um

<5um

<10um

<10um

Bow

±20um

±25um

±40um

±40um

±60um

Warp

<30um

<40um

<50um

<50um

<60um

PLTV (<0.5um)

≥95% (5mm*5mm)

Transmittance

UV, Optical, IR or Custom option

Edge Rounding

Compliant with SEMI M1.2 Standard/refer to IEC62276

Surface Type

Single Side Polished /Double Sides Polished

Polished side

<1.0nm or specific per requested

Back Side

General is 0.2-0.5µm or as customized

Appearance

Contamination

None

Particles>0.3µm

<=30

Saw Marks, striations

None

Scratch

None

Cracks, saw marks, stains

None
