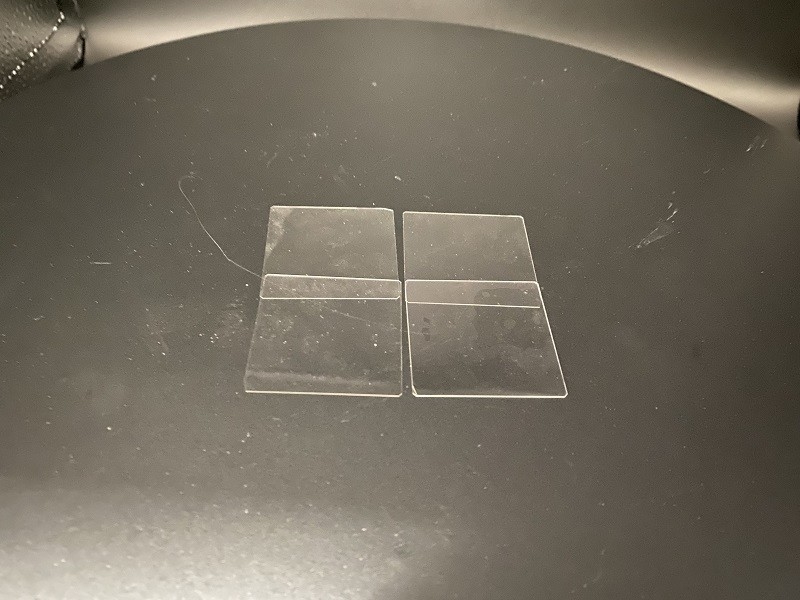

Precision Fused Silica Wafer TTV 20µm PLTV≥95% Diameter 50.8mm for Optimal Performance
Product Details:
| Place of Origin: | China |
| Brand Name: | CSIMC |
| Certification: | ISO:9001, ISO:14001 |
| Model Number: | Fused Silica, Fused Quartz |
Payment & Shipping Terms:
| Minimum Order Quantity: | 5 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Cassette/ Jar package, vaccum sealed |
| Delivery Time: | 1-4 weeks |
| Payment Terms: | T/T |
| Supply Ability: | 20000 pcs/Month |
|
Detail Information |
|||
| Product Name: | JGS1 JGS2 JGS3 Glass And Quartz Wafer For Superior Optical Clarity Chemical Stability | Bow: | ±20µm, ±25µm, ±40µm, ±40µm, ±60µm, ±60µm |
|---|---|---|---|
| PLTV(<0.5um): | ≥95%(5mm*5mm) | Edge Rounding: | Compliant With SEMI M1.2 Standard/refer To IEC62276 |
| Application: | Semiconductor, MEMS | Brand: | JGS1 JGS2 JGS3 |
| Surface: | DSP, SSP, DSL | TTV: | <8µm, <10µm, <15µm, <20µm, <30µm, <30µm |
| Highlight: | PLTV 95% Fused Silica Wafer,Precision Fused Silica Wafer,50.8mm Fused Silica Wafer |
||
Product Description
Product Description:
The Fused Silica Wafer is available in different sizes, thicknesses, and surface finishes. The polished side Ra is less than 1.0nm or can be specified per request. The product is available in JGS1, JGS2, and JGS3 types of glass and quartz wafers for superior optical clarity and chemical stability. The product is also available in different surface finishes, including DSP, SSP, and DSL, depending on the application requirements.
The Fused Silica Wafer is known for its excellent properties, including high temperature resistance, low thermal expansion, and chemical inertness. It also has a low coefficient of thermal expansion, which makes it suitable for use in high-temperature applications. The product has a TTV of less than 8µm, <10µm, <15µm, <20µm, <30µm, or <30µm, depending on the specifications.
The Fused Silica Wafer is widely used in the semiconductor industry, where it is used as a substrate for the manufacture of integrated circuits. It is also used in optics, where it is used as a substrate for the deposition of thin films. The product is also used in electronics, where it is used as a substrate for the manufacture of sensors and other electronic devices.
The Fused Silica Wafer is an essential component in the manufacturing process of various electronic and optical devices. It is a high-quality product that is known for its excellent properties, including high temperature resistance, low thermal expansion, and chemical inertness. The product is available in different types, sizes, thicknesses, and surface finishes, making it suitable for different applications. Whether you need a Quartz Wafer, Silica Crystal Wafer, or SiO2 Wafer, the Fused Silica Wafer is the perfect solution for your needs.
Features:
- Product Name: Fused Silica Wafer
- Primary Flat: 22mm, 32.5mm, 42.5mm, 57.5mm/notch, notch, notch
- Thickness: 350um, 500um, 1000um
- Type: Fused Silica, Fused Quartz
- TTV: <8µm, <10µm, <15µm, <20µm, <30µm, <30µm
- Material: UV Fused Silica, Fused Quartz (JGS1, JGS2, JGS3)
Looking for a Silica Crystal Wafer or Vitreous Silica Wafer? Our Fused Silica Wafer is the perfect solution for your needs. With a variety of Primary Flat options, Thicknesses, Types, TTVs, and Materials available, we can help you find the right product for your project.
Technical Parameters:
| Product Category | Crystalline Silica Wafer |
|---|---|
| Brand | JGS1 JGS2 JGS3 |
| Edge Rounding | Compliant with SEMI M1.2 Standard/refer to IEC62276 |
| Thickness | 350um, 500um, 1000um |
| Surface | DSP, SSP, DSL |
| Primary Flat | 22mm, 32.5mm, 42.5mm, 57.5mm/notch, notch, notch |
| Polished side Ra | <1.0nm or specific per requested |
| LTV (5mmx5mm) | <2µm |
| PLTV(<0.5um) | ≥95%(5mm*5mm) |
| Bow | ±20µm, ±25µm, ±40µm, ±40µm, ±60µm, ±60µm |
Applications:
The Fused Silica Wafer is ideal for use in scenarios that require high transmission of ultraviolet and visible light. The wafer is available in various diameters including 50.8mm, 76.2mm, 100mm, 150mm, and 200mm, making it suitable for a wide range of applications. The wafer has a low thickness variation (LTV) of <2µm, ensuring precision in the application.
The Fused Silica Wafer can be used in different application scenarios including microelectronics, MEMS, and nanotechnology. In microelectronics, the product is used in the manufacturing of integrated circuits, LCD displays, and solar cells. In MEMS, the product is used in the production of sensors, actuators, and microfluidic devices. In nanotechnology, the product is used in the production of nanodevices, nanosensors, and nanofluidic devices.
The Fused Silica Wafer is also suitable for applications that require superior optical clarity and chemical stability. The wafer has a TTV of <8µm, <10µm, <15µm, <20µm, <30µm, and <30µm, making it ideal for use in precision optics, spectroscopy, and laser optics. The product is also used in the manufacturing of lenses, prisms, mirrors, and filters.
In conclusion, the BonTek Fused Silica Wafer is a versatile and reliable product that is suitable for use in various industries and applications. With its high transmission of ultraviolet and visible light, low thickness variation, superior optical clarity, and chemical stability, this product is the ideal choice for anyone looking for a high-quality wafer.
