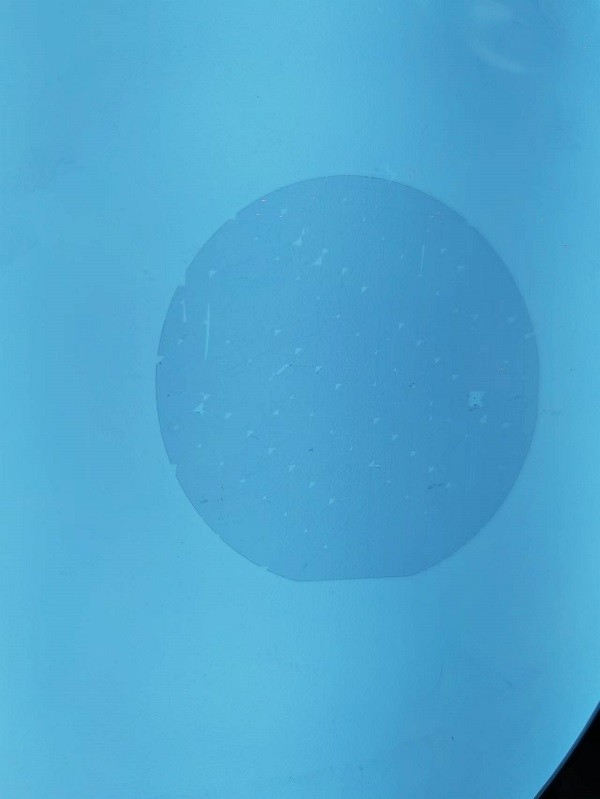

LTV 5mmx5mm 2µm Fused Silica Wafer TTV 20µm for Semiconductor Industry
Product Details:
| Place of Origin: | China |
| Brand Name: | CSIMC |
| Certification: | ISO:9001, ISO:14001 |
| Model Number: | Fused Silica, Fused Quartz |
Payment & Shipping Terms:
| Minimum Order Quantity: | 5 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Cassette/ Jar package, vaccum sealed |
| Delivery Time: | 1-4 weeks |
| Payment Terms: | T/T |
| Supply Ability: | 20000 pcs/Month |
|
Detail Information |
|||
| Product Name: | JGS1 JGS2 JGS3 Glass And Quartz Wafer For Superior Optical Clarity Chemical Stability | Polished Side Ra: | <1.0nm Or Specific Per Requested |
|---|---|---|---|
| PLTV(<0.5um): | ≥95%(5mm*5mm) | Transmission: | Ultraviolet And Visible |
| Bow: | ±20µm, ±25µm, ±40µm, ±40µm, ±60µm, ±60µm | Diameter: | 50.8mm,76.2mm, 100mm, 150mm, 200mm |
| Material: | UV Fused Silica, Fused Quartz (JGS1, JGS2, JGS3) | Surface: | DSP, SSP, DSL |
| Highlight: | 2um Fused Silica Wafer,5x5mm Fused Silica Wafer,Semiconductor Industry Fused Silica Wafer |
||
Product Description
Product Description:
Features:
- Product Name: JGS1 JGS2 JGS3 Glass and Quartz wafer for Superior Optical Clarity Chemical Stability
- Material: UV Fused Silica, Fused Quartz (JGS1, JGS2, JGS3)
- Edge Rounding: Compliant with SEMI M1.2 Standard/refer to IEC62276
- Diameter: 50.8mm,76.2mm, 100mm, 150mm, 200mm
- Warp: <30µm, <40µm, <50µm, <50µm, <60µm, <60µm
Our Vitreous Silica Wafer, also known as Silicon Dioxide Wafer or Quartz Wafer, is a top-quality product that features superior optical clarity and chemical stability. Made of UV Fused Silica and Fused Quartz (JGS1, JGS2, JGS3), this wafer complies with SEMI M1.2 standard for edge rounding and is available in diameters ranging from 50.8mm to 200mm. With a warp of less than 60µm, this wafer is a reliable choice for a variety of applications.
Technical Parameters:
| Product Category | Fused Silica Wafer |
| LTV (5mmx5mm) | <2µm |
| Transmission | Ultraviolet And Visible |
| Primary Flat | 22mm, 32.5mm, 42.5mm, 57.5mm/notch, notch, notch |
| PLTV(<0.5um) | ≥95%(5mm*5mm) |
| Thickness | 350um, 500um, 1000um |
| Edge Rounding | Compliant with SEMI M1.2 Standard/refer to IEC62276 |
| Type | Fused Silica, Fused Quartz |
| Material | UV Fused Silica, Fused Quartz (JGS1, JGS2, JGS3) |
| Surface | DSP, SSP, DSL |
This is the technical parameter table for SiO2 Wafer, Vitreous Silica Wafer, Fused Quartz Wafer.
Applications:
Our fused silica wafer has a PLTV (<0.5um) of ≥95% (5mm*5mm) and a polished side Ra of less than 1.0nm, or specific per requested. The surface options available are DSP (double-sided polished), SSP (single-sided polished), and DSL (double-sided lapped).
Our fused silica wafer is perfect for various semiconductor and MEMS applications. Its high purity and low coefficient of thermal expansion make it ideal for use in integrated circuits, photovoltaic cells, and micro-electromechanical systems. Our fused silica wafer also has excellent optical properties, making it suitable for use in optical fibers and lenses.
Our fused silica wafer is delivered in cassette/jar packaging and vacuum sealed to ensure product quality. With a supply ability of 20,000 pieces per month, your product needs will always be met in a timely manner. Delivery time ranges from 1-4 weeks depending on your location.
Choose BonTek Fused Silica Wafer for all your semiconductor and MEMS application needs. Contact us today to place your order.
Support and Services:
- Product installation support
- Product troubleshooting and repair
- Customization options
- On-site technical support
- Product training and education
- Warranty and post-warranty support
Packing and Shipping:
Product Packaging:
The Fused Silica Wafer product will be packaged in a protective plastic case to ensure it arrives at its destination undamaged. The case will be sealed to prevent any dust or debris from entering and damaging the wafer.
Shipping:
The Fused Silica Wafer product will be shipped via a secure and reliable courier service. The package will be labeled with the necessary information, including the recipient's address and contact information. The package will be handled with care to ensure it arrives at its destination in the same condition it was shipped.
FAQ:
A: The brand name is BonTek.
Q: What are the model numbers available for Fused Silica Wafer?
A: The model numbers available are Fused Silica and Fused Quartz.
Q: What certifications does the Fused Silica Wafer have?
A: The Fused Silica Wafer has ISO:9001 and ISO:14001 certifications.
Q: What is the place of origin for Fused Silica Wafer?
A: The place of origin for Fused Silica Wafer is China.
Q: What is the minimum order quantity for Fused Silica Wafer?
A: The minimum order quantity for Fused Silica Wafer is 5 pcs.
Q: What is the price of Fused Silica Wafer? Is it negotiable?
A: The price of Fused Silica Wafer is negotiable. Please contact us for more information.
Q: What are the payment terms for Fused Silica Wafer?
A: The payment terms for Fused Silica Wafer are T/T.
Q: What is the supply ability for Fused Silica Wafer?
A: The supply ability for Fused Silica Wafer is 20000 pcs/Month.
Q: What is the delivery time for Fused Silica Wafer?
A: The delivery time for Fused Silica Wafer is 1-4 weeks.
Q: What are the packaging details for Fused Silica Wafer?
A: The packaging details for Fused Silica Wafer are cassette/ jar package, vacuum sealed.
