Product Details:

Place of Origin: China
Brand Name: CSIMC
Certification: ISO:9001, ISO:14001
Model Number: Fused Silica, Fused Quartz

Payment & Shipping Terms:

Minimum Order Quantity: 5 pcs
Price: Negotiable
Packaging Details: Cassette/ Jar package, vaccum sealed
Delivery Time: 1-4 weeks
Payment Terms: T/T
Supply Ability: 20000 pcs/Month
Get Best Price Contact Now

Detail Information

Material Name: Borofloat Glass Brand: Schott Brorofloat 33
Diameter: 100mm 150mm 200mm Thickness: 0.35mm 0.5mm, 0.725mm, 1mm
Edge: C Shape Surface Finish: Double Side Polish
Use: Semiconductor, MEMS ApSemiconductor, MEMSplication: Electronics, Optics, And Semiconductors
Highlight:

Semiconductor Industry Borofloat 33 Glass Substrate

,

MEMS Borofloat 33 Glass Substrate

,

Various Application Borofloat 33 Glass Substrate

Product Description

Borofloat 33 Glass Substrate for Semiconductor Industry and MEMS BOROFLOAT33 Glass for Various Application



Unlock the potential of your applications with Borofloat 33 Glass Substrate. This high-performance borosilicate glass is designed to meet the demands of today's advanced technologies.

Borofloat 33 offers exceptional optical clarity, ensuring your devices and instruments perform at their peak. Whether you're working in semiconductor manufacturing, flat panel displays, or solar energy, this substrate provides the clarity you need for precise operations.

Its low thermal expansion coefficient makes Borofloat 33 a reliable choice for high-temperature applications. You can trust this substrate to maintain stability and accuracy, even during extreme conditions.

Furthermore, Borofloat 33 Glass Substrate is highly resistant to chemicals, acids, and alkalis. This durability ensures long-lasting performance and reduces the need for replacements.

Invest in Borofloat 33 Glass Substrate and experience the difference. Our high-quality product will help you achieve superior results in your applications. Contact us today to learn more about how Borofloat 33 can enhance your operations.



Borofloat 33 Glass Wafer Parameters

Material BOROFLOAT 33
Density (@ 25°C/77°F) 2.23 g/cm3
Modulus of Elasticity 63 kN/mm2
Knoop Hardness HK 0.1/20 480
Poisson’s Ratio 0.2
Dielectric Constant (@ 1 MHz & 25°C) 4.6
Loss Tangent (@ 1 MHz & 25°C) 37 x 10-4
Dielectric Strength(@ 50 Hz & 25°C) 16 kV/mm
Refractive Index (nd) 1.472
Dispersion (nF - nC) 71.9 x 10-4





Borofloat 33 Glass Wafer Specifications

Specification 3” 4” 5" 6" 8"
Diameter 76.2mm 100mm 125mm 150mm 200mm
Tol(±) <0.1~0.25 mm
Thickness >0.10mm >0.10mm >0.30mm >0.30mm >0.30mm
Primary Flat 22mm 32.5mm 42.5mm 57.5mm Notch
Notch
TTV <8um <10um <15um <20um <30um
Bow ±20um ±25um ±40um ±40um ±60um
Warp <30um <40um <50um <50um <60um
PLTV(<0.5um) ≥95%(5mm*5mm)
Transmittance UV, Optical, IR or Custom option
Edge Rounding Compliant with SEMI M1.2 Standard/refer to IEC62276
Surface Type Single Side Polished /Double Sides Polished
Polished side Ra <1.0nm or specific per requested
Back Side Criteria General is 0.2-0.5µm or as customized
Appearance Contamination None
Particles>0.3µm <=30
Saw Marks, striations None
Scratch None
Cracks, saw marks, stains None

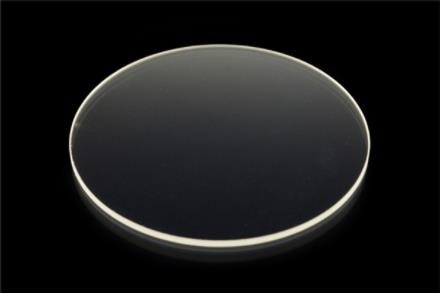

Glass Wafer Photos

Borofloat 33 Glass Substrate for Semiconductor Industry and MEMS BOROFLOAT33 Glass for Various Application 0Borofloat 33 Glass Substrate for Semiconductor Industry and MEMS BOROFLOAT33 Glass for Various Application 1Borofloat 33 Glass Substrate for Semiconductor Industry and MEMS BOROFLOAT33 Glass for Various Application 2




Borofloat 33 Glass Substrate for Semiconductor Industry and MEMS BOROFLOAT33 Glass for Various Application 3



Borofloat 33 Glass Substrate for Semiconductor Industry and MEMS BOROFLOAT33 Glass for Various Application 4

FAQs:



  1. Q: What are the products you mainly work on?

A: We look at ourselves as the piezo wafer specialist. We are the very first to work with Single Crystal Quartz in China about 30 years ago. Then gradually we step in the field of LiNbO3, LiTaO3, Quartz glass, LGS, CTGS etc. Especially, if you are looking for a piezo quartz supplier, we are the ultimate choice! We export millions of quartz blanks each year because we master the AT, SC and IT cuts with superior angle precision.



  1. Q: Can you accept product customization?

A: Yes, of course. We can fabricate as per your request. In addition, we are so experienced with piezo wafers that we can provide you relevant suggestions if you are not 100% sure about your choice. Besides, we do have some standard wafers in stock, please check with us.



  1. Q: Can you deliver the goods via our courier agent?

A: Yes, we would suggest you go with the courier agent you are most familiar with (DHL, FedEX, UPS etc.). We can ship via your account. And, of course, we will pack the products safely in acceptable size to help you save the shipping cost. If you need us to take care of the freight, it’s also not a problem. We also have good discount with the international courier companies.



  1. Q: How can you guarantee we get what we want safely?

A: The wafer products are fragile and sometimes expensive. The last thing, as the manufacturer, we want to see is the products we make were damaged during courier. As a result, we will pack the wafers adequately and put them in a proper carton filled with buffer sponge. However, accidents are inevitable sometimes. So, please follow the “Acceptance check” steps shown in the drawings below. If the unwanted happened, we will either give the replenishment or refund if you follow the checking steps.



  1. Q: Can we visit your factory?

A: Sure. Factory inspection is important for large quantity purchase and long-term cooperation. Face to face discussion is what we mostly confident with. During the past years, big names around the world have witnessed our progress in factory build-up. These days, due to the Covid-19 pandemic, we also had the experience of videoconferencing with global buyers.





Acceptance Check

  • The product is fragile. We have adequately packed it and labeled it fragile. We deliver through excellent domestic and international express companies to ensure transportation quality.
  • After receiving the goods, please handle with care and check whether the outer carton is in good condition. Carefully open the outer carton and check whether the packing boxes are in alignment. Take a picture before you take them out.
  • Please open the vacuum package in a clean room when the products are to be applied.
  • If the products are found damaged during courier, please take a picture or record a video immediately. DO NOT take the damaged products out of the packaging box! Contact us immediately and we will solve the problem well.
