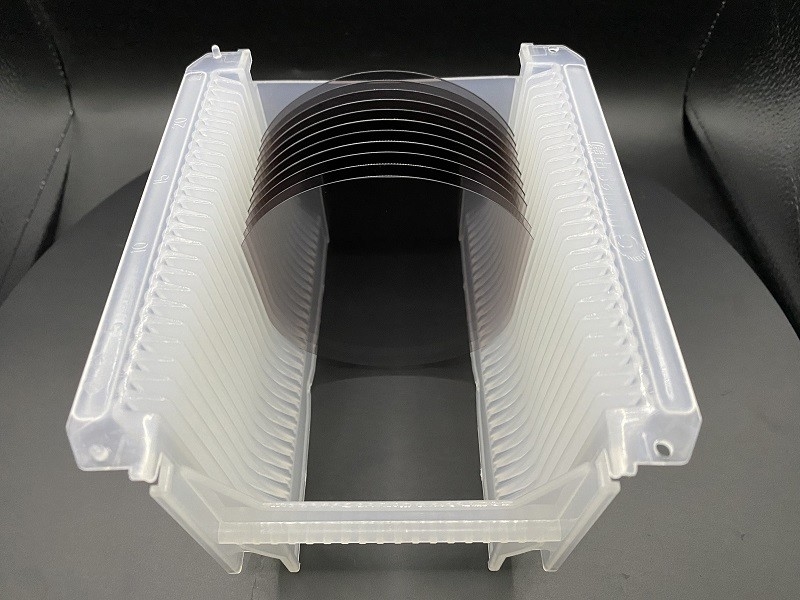

4'' 6" Piezoelectric Crystal Lithium Niobate LN LiNbO3 Wafer For Optical Applications
Product Details:
| Place of Origin: | China |
| Brand Name: | CSIMC |
| Certification: | ISO:9001, ISO:14001 |
| Model Number: | Lithium Niobate Wafer |
Payment & Shipping Terms:
| Minimum Order Quantity: | 5 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Cassette/ Jar package, vaccum sealed |
| Delivery Time: | 1-4 weeks |
| Payment Terms: | T/T |
| Supply Ability: | 20000 pcs/Month |
|
Detail Information |
|||
| Material: | Lithium Niobate Wafer | Grade: | SAW, Optical Grade |
|---|---|---|---|
| Size: | 4'', 6'' | Orientation Cut: | X, Y, Z, 64Y, 128Y, Etc. |
| Thickness: | 250um, 350um, 500um, 1000um, Etc. | Surface: | DSP SSP |
| Application: | Piezoelectric Vibration | Industry Use: | SAW Filter, Ultrasonic Transducer |
| Highlight: | 4 Piezoelectric Crystal Wafer,Optical Applications Piezoelectric Crystal Wafer,6in Piezoelectric Crystal Wafer |
||
Product Description
4'' 6" Piezoelectric Crystal Lithium niobate LN LiNbO3 Wafer for Optical Applications
Elevate your technology with our premium Lithium Niobate Wafer, a cutting-edge material that offers unparalleled performance for a wide range of applications.
Lithium Niobate, known for its unique optical and electro-optic properties, is a key component in many advanced technologies. Our Lithium Niobate Wafers are crafted with precision and care, ensuring exceptional quality and reliability.
Whether you're developing optical modulators, optical switches, or other optical components, our Lithium Niobate Wafers provide the accuracy and stability you need. They offer excellent optical transparency and low optical loss, ensuring efficient performance in your devices.
Moreover, our Lithium Niobate Wafers are suitable for a variety of integration technologies, including wafer bonding and thin-film deposition. This flexibility allows you to integrate them into your systems with ease.
At our company, we are committed to providing the highest quality Lithium Niobate Wafers. We utilize advanced manufacturing techniques and rigorous quality control to ensure that each wafer meets our strict standards.
Discover the power of Lithium Niobate with our premium Wafers. Elevate your technology and achieve unprecedented performance. Contact us today to learn more about our Lithium Niobate Wafers and how they can enhance your applications.
|
Product Name |
3" 4" 6" 8" Lithium Niobate Wafer (SAW / Optical) |
|
Cut Angle |
X/Z/Y41°/Y64°/Y128°/YZ/YX or Customized |
|
Surface finish |
DLP/SLP/ SSP/DSP all available |
|
Thickness |
0.18/0.25/0.35/0.50/1.00 + mm |
|
TTV |
< 1~5µm |
|
BOW |
± (25µm ~40um ) |
|
Warp |
<= 35µm |
|
LTV (5mmx5mm) |
<1.5 um |
|
PLTV(<0.5um) |
≥98% (5mm*5mm) with 2mm edge excluded |
|
Curie Temp |
1142°C±2°C |
|
Edge |
Compl't with SEMI M1.2@with GC800# .regular at C typed |
|
Flats |
22mm, 32.5mm, 47.5mm, 57.5mm, NOTCH, per request |
|
Doped with |
Zn, MgO single or double doped available |
|
Polished side Ra |
Roughness Ra<=5A |
|
Back Side Criteria |
Roughness Ra:0.5-1.0µm GC#1000 |
|
Edge Rounding |
Compliant with SEMI M1.2 Standard/refer to IEC62276 |
|
Cracks, saw marks, stains |
None |
|
Single Domain |
Completed Polarization/Reducted |
|
Compound Formula |
LiNbO3 |
|
Molecular Weight |
147.85 |
|
Melting Point |
1250 °C |
|
Density |
4.64 g/cm3 |
|
Solubility in H2O |
Insoluble |
|
Refractive Index |
no 2.30, ne 2.21 (589.2 nm, 25 °C) |
|
Crystal Phase / Structure |
Trigonal |
|
Thermal Conductivity |
5.6 W/m·K |
FAQs:
- Q: What are the products you mainly work on?
A: We look at ourselves as the piezo wafer specialist. We are the very first to work with Single Crystal Quartz in China about 30 years ago. Then gradually we step in the field of LiNbO3, LiTaO3, Quartz glass, LGS, CTGS etc. Especially, if you are looking for a piezo quartz supplier, we are the ultimate choice! We export millions of quartz blanks each year because we master the AT, SC and IT cuts with superior angle precision.
- Q: Can you accept product customization?
A: Yes, of course. We can fabricate as per your request. In addition, we are so experienced with piezo wafers that we can provide you relevant suggestions if you are not 100% sure about your choice. Besides, we do have some standard wafers in stock, please check with us.
- Q: Can you deliver the goods via our courier agent?
A: Yes, we would suggest you go with the courier agent you are most familiar with (DHL, FedEX, UPS etc.). We can ship via your account. And, of course, we will pack the products safely in acceptable size to help you save the shipping cost. If you need us to take care of the freight, it’s also not a problem. We also have good discount with the international courier companies.
- Q: How can you guarantee we get what we want safely?
A: The wafer products are fragile and sometimes expensive. The last thing, as the manufacturer, we want to see is the products we make were damaged during courier. As a result, we will pack the wafers adequately and put them in a proper carton filled with buffer sponge. However, accidents are inevitable sometimes. So, please follow the “Acceptance check” steps shown in the drawings below. If the unwanted happened, we will either give the replenishment or refund if you follow the checking steps.
Acceptance Check
- The product is fragile. We have adequately packed it and labeled it fragile. We deliver through excellent domestic and international express companies to ensure transportation quality.
- After receiving the goods, please handle with care and check whether the outer carton is in good condition. Carefully open the outer carton and check whether the packing boxes are in alignment. Take a picture before you take them out.
- Please open the vacuum package in a clean room when the products are to be applied.
- If the products are found damaged during courier, please take a picture or record a video immediately. DO NOT take the damaged products out of the packaging box! Contact us immediately and we will solve the problem well.
