128Y Cut LiNbO3 Wafer for Optical and SAW Applications with High Reliability
Product Details:
| Place of Origin: | China |
| Brand Name: | CSIMC |
| Certification: | ISO:9001, ISO:14001 |
| Model Number: | Lithium Niobate (LiNbO3) |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10 pcs |
|---|---|
| Price: | Negotiable |

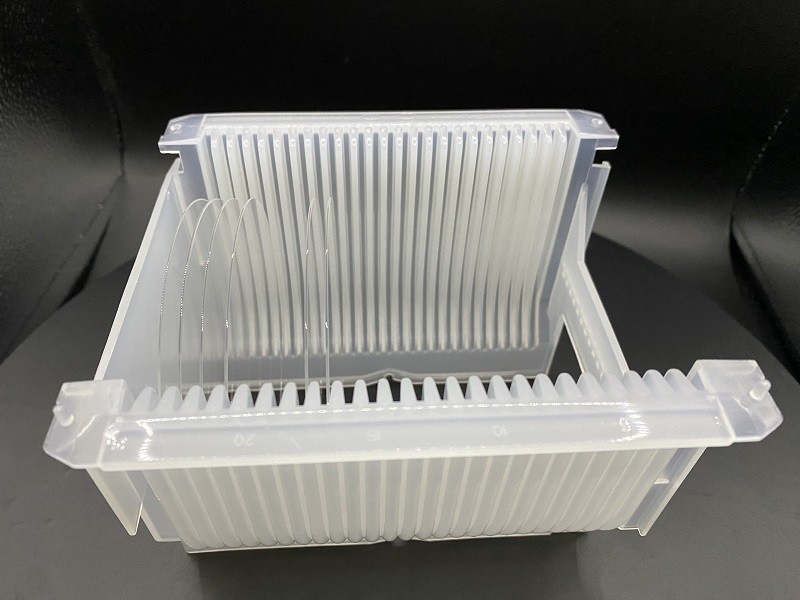

| Packaging Details: | Cassette/ Jar package, vaccum sealed |
| Delivery Time: | 1-4 weeks |
| Payment Terms: | T/T |
| Supply Ability: | 10000 pcs/Month |
|
Detail Information |
|||
| Product: | LiNbO3 Wafer | Diameter: | 3'', 4'', 6'', 8'' |
|---|---|---|---|
| Orientation Cut: | Y128 | Surface: | Polish, Lap, Etch |
| Application: | SAW, BAW, FBAR, Semiconductor, Optical | Thickness: | 0.25mm - 3mm |
| Surface Ra: | Ra<5 Angstrom | TTV: | <5um |
| Highlight: | High Reliability LiNbO3 Wafer,Optical LiNbO3 Wafer,SAW Applications LiNbO3 Wafer |
||
Product Description
128Y Cut LiNbO3 Wafer for Optical and SAW Applications with High Reliability
Unlock the potential of your optical and microwave applications with our precision-crafted 128°Y-Cut LiNbO3 Wafers. These wafers, made from lithium niobate (LiNbO3), are specifically cut at a 128° angle to the Y-axis, optimizing their performance for a wide range of demanding applications.
Our 128°Y-Cut LiNbO3 Wafers offer exceptional optical and electro-optic properties, including high optical transparency, low absorption, and strong electro-optic coefficients. This makes them ideal for use in modulators, switches, filters, and other optical components.
The superior crystal quality and uniformity of our wafers ensure reliable and consistent performance, even under demanding operating conditions. Their stability and durability also make them suitable for long-term use in various environments.
Whether you're developing new optical systems or enhancing existing ones, our 128°Y-Cut LiNbO3 Wafers are the key to achieving superior performance and reliability. Contact us today to learn more about how our products can take your research or manufacturing process to the next level.
|
Material |
LiNbO3 Crystal |
|
Orientation |
X / Z / Y41° / Y64° / Y128° / YZ / YX or Customized |
|
Diameter |
Φ76.2mm (3 inch); Φ100mm (4 inch); Φ150mm (6 inch) |
|
Surface finish |
One / Both sides polish |
|
Thickness |
350±25um / 500±25um |
|
TTV |
< 1~5µm |
|
BOW |
± (25µm ~40um ) |
|
Warp |
<= 35µm |
|
LTV (5mmx5mm) |
<1.5 um |
|
PLTV(<0.5um) |
≥98% (5mm*5mm) with 2mm edge excluded |
|
Edge |
Compl't with SEMI M1.2@with GC800# .regular at C typed |
|
Orientation flats |
available, per request |
|
Polished side Ra |
Roughness Ra<=5A |
|
Back Side Criteria |
Roughness Ra:0.5-1.0µm GC#1000 |
|
Edge Rounding |
Compliant with SEMI M1.2 Standard/refer to IEC62276 |
|
Cracks, saw marks, stains |
None |
Acceptance Check
- The product is fragile. We have adequately packed it and labeled it fragile. We deliver through excellent domestic and international express companies to ensure transportation quality.
- After receiving the goods, please handle with care and check whether the outer carton is in good condition. Carefully open the outer carton and check whether the packing boxes are in alignment. Take a picture before you take them out.
- Please open the vacuum package in a clean room when the products are to be applied.
- If the products are found damaged during courier, please take a picture or record a video immediately. DO NOT take the damaged products out of the packaging box! Contact us immediately and we will solve the problem well.
