Lithium Niobate Piezoelectric Ring Wafer with Outer Diameter Ranging
Product Details:
| Place of Origin: | China |
| Brand Name: | CSIMC |
| Certification: | ISO:9001, ISO:14001 |
| Model Number: | Lithium Niobate Wafer |
Payment & Shipping Terms:
| Minimum Order Quantity: | 5 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Cassette/ Jar package, vaccum sealed |
| Delivery Time: | 1-4 weeks |
| Payment Terms: | T/T |
| Supply Ability: | 10000 pcs/Month |
|
Detail Information |
|||
| Product: | LiNbO3 Piezoelectric Ring | Character: | Optical / SAW Grade |
|---|---|---|---|
| Orientation Cut: | X, Z, 36Y, Etc. | Out Dia.: | 5mm ~ 150mm |
| Inner Dia.: | 2mm ~ 100mm | Thickness: | 0.35mm / 0.5mm / 1.0mm / 3.0mm |
| Surface Type: | Double Side Polish, Double Side Lap | Ra Roughness: | Ra <1nm, Ra 0.2~0.7um |
| Highlight: | Lithium Niobate Piezoelectric Ring Wafer,Piezoelectric Ring Wafer,Outer Diameter Piezoelectric Ring Wafer |
||
Product Description

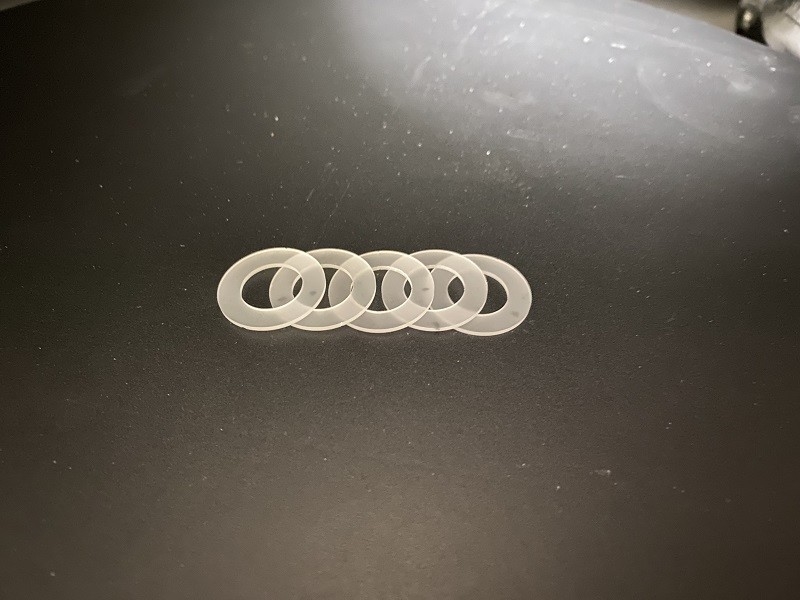

Lithium Niobate Piezoelectric Ring Wafer with Outer Diameter Ranging
For those seeking precision and performance in piezoelectric applications, our Piezoelectric Lithium Niobate Wafer Rings offer an exceptional solution. Available in both Z-cut and 36° Y-cut orientations, these wafer rings are designed to maximize the piezoelectric effect for your specific needs.
The Z-cut orientation provides optimal coupling of mechanical stress and electrical signals, making it ideal for applications requiring high sensitivity and precise measurements. Meanwhile, the 36° Y-cut orientation offers enhanced piezoelectric coefficients, perfect for applications requiring broader bandwidth or higher frequency response.
Our Lithium Niobate wafer rings are crafted from the finest materials using advanced manufacturing techniques. This ensures superior crystal structure, material purity, and mechanical stability. The ring shape also provides added strength and resilience, ensuring reliable performance even in demanding environments.
Whether you're working on a sensor application, high-frequency device, or any other piezoelectric-based system, our Piezoelectric Lithium Niobate Wafer Rings are sure to exceed your expectations. Contact us today to learn more about how our products can enhance your applications and bring your research or manufacturing process to new heights.
|
Material |
LiNbO3 wafer, Piezo Ring |
|
Orientation |
X / Z / Y41° / Y64° / Y128° / YZ / YX or Customized |
|
Outter Diameter |
5mm ~ 150mm |
|
Inner Diameter |
2mm ~ 100mm |
|
Surface finish |
Single or Double sides polish (DLP/SLP/ SSP/DSP all available) |
|
Thickness |
0.35 / 0.50 / 1.00 / 3.00 + mm |
|
TTV |
< 1~5µm |
|
BOW |
± (25µm ~40um ) |
|
Warp |
<= 35µm |
|
LTV (5mmx5mm) |
<1.5 um |
|
PLTV(<0.5um) |
≥98% (5mm*5mm) with 2mm edge excluded |
|
Edge |
Compl't with SEMI M1.2@with GC800# .regular at C typed |
|
Orientation flats |
available, per request |
|
Polished side Ra |
Roughness Ra<=5A |
|
Back Side Criteria |
Roughness Ra:0.5-1.0µm GC#1000 |
|
Edge Rounding |
Compliant with SEMI M1.2 Standard/refer to IEC62276 |
|
Cracks, saw marks, stains |
None |
