Precision And Accuracy With Our State Of The Art Piezoelectric Quartz End Cap
Product Details:
| Place of Origin: | China |
| Brand Name: | CSIMC |
| Certification: | ISO:9001, ISO:14001 |
| Model Number: | Quartz Sensor |
Payment & Shipping Terms:
| Minimum Order Quantity: | 20 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Cassette/ Jar package, vaccum sealed |
| Delivery Time: | 1-4 weeks |
| Payment Terms: | T/T |
| Supply Ability: | 50000 pcs/Month |
|
Detail Information |
|||
| Product: | Quartz Endcap | Material: | Single Crystal Quartz |
|---|---|---|---|
| Orientation: | Coated AT Quartz Blank | Coating: | Au And Cr |
| Sealing: | Glass Frit | Applications: | Quartz Pressure Sensor |
| Highlight: | Piezoelectric Quartz End Cap,State of the Art Piezoelectric Quartz End Cap,Precision Piezoelectric Quartz End Cap |
||
Product Description

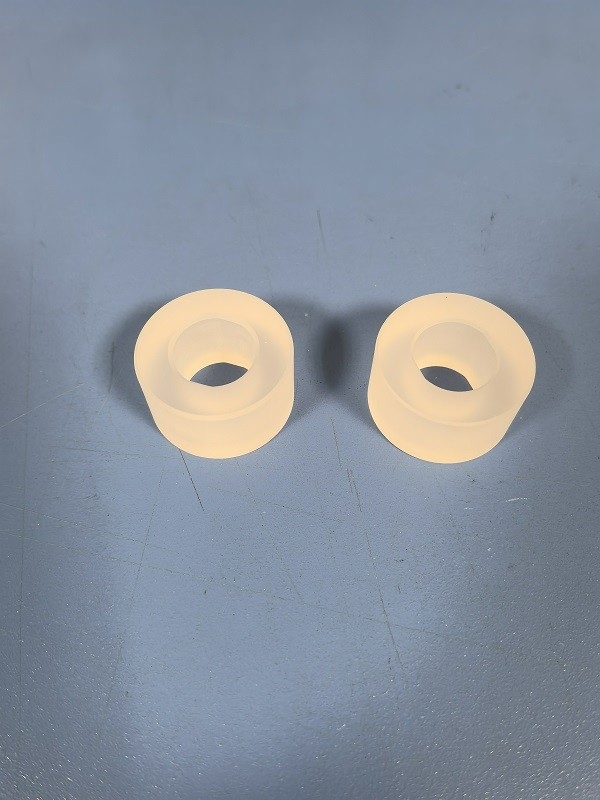

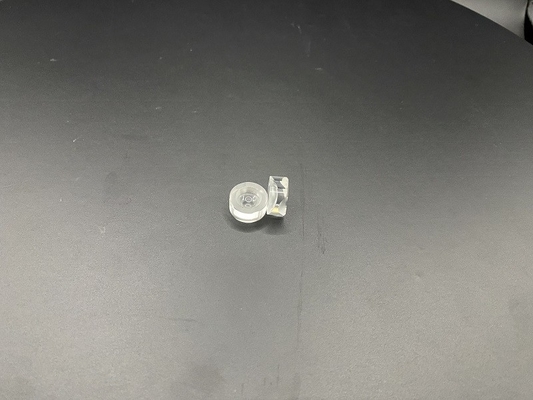

Precision and Accuracy with Our State-of-the-Art Piezoelectric Quartz End Cap
Piezoelectric Quartz End Caps:
Elevate your sensor technology with our premium Piezoelectric Quartz End Caps. These innovative devices harness the unique piezoelectric properties of quartz to convert mechanical stress into precise electrical signals. Ideal for a wide range of applications, they offer unmatched sensitivity and stability, ensuring reliable performance even in the most demanding conditions.
Our end caps are crafted from the finest quartz, ensuring superior durability and longevity. Their precision engineering guarantees consistent and accurate readings, boosting the overall performance of your sensor system.
Trust us to provide you with a solution that meets your exact needs. Invest in our Piezoelectric Quartz End Caps and experience the next level of sensor technology. Contact us now to learn more about our products and how they can transform your operations.
| Materials | Single Quartz Blanks (both Piezo / Optical grade) |
| Materials | Both Pure Z and Y Bar available |
| Synthetic Q-Value | Min 1.8x10^6, 2.4x10^6 to 3.0x10^6 IEC standards |
| ECD | Max 100/c㎡, Max 300/c㎡; or per Customer’s request |
| Inclusions Density | I, II, III Grades |
| Cuts Type ( orientation) | AT, BT, CT, ET ,DT, GT, NT, FC, SC, IT, AC ,BC ,ST .TS MT ,NT RT …, etc per requested |
| Angle Tolerance(±) | Theta Angle: ±5″, ±10″, ±15″, ±30″, ±1′, ±2′, … , etc |
| Phi Angle:±5′, ±10′, ±15′, ±30′, … , etc | |
| Size For Round endcaps | From 10.0mm to 15.00mm (with flat) , 13.80mm as typical one |
| Height / Thickness | 5.00-7.00 mm per requested |
| Flat | Per requested the flat shall be perpendicular to X axis within ±10 deg |
| Surface Finishing | #1000(9u); #2000(7u); #3000(5u); #4000(3u) (Sic); Polished(Cerium oxide)& etched Std |
Packing and Shipping:
Our Piezoelectric Quartz Endcaps are carefully packed in a sealed and secure container with an anti-static layer and moisture barrier to ensure that it arrives securely and undamaged.
The container is then sealed and labeled with a unique identification number for tracking purposes.
We offer both domestic and international shipping options, with the latter requiring additional paperwork. We also provide a tracking number for all domestic shipments.
For further inquiries about our packaging and shipping services, please contact our customer service team.
