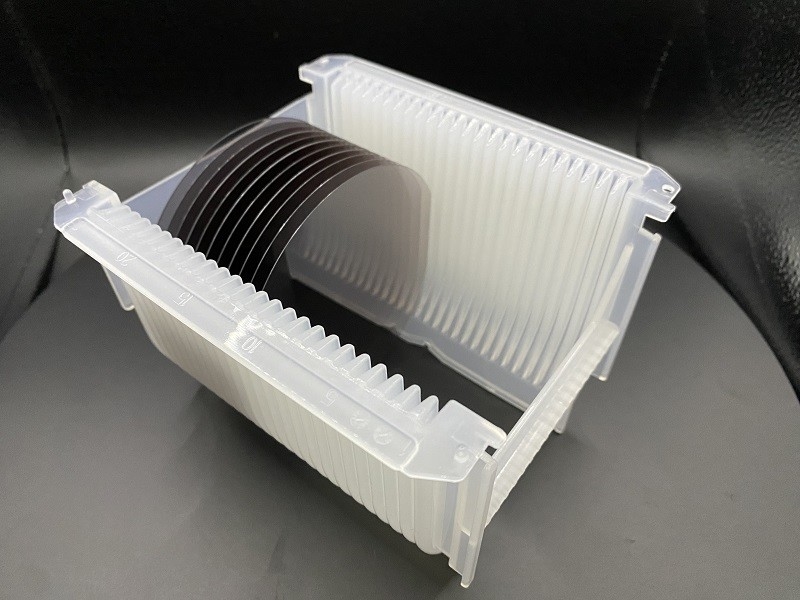

4 Inch Lithium Niobate Wafer With Customized Orientation Cut For Various Designs
Product Details:
| Place of Origin: | China |
| Brand Name: | CSIMC |
| Certification: | ISO:9001, ISO:14001 |
| Model Number: | Lithium Niobate (LiNbO3) |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Cassette/ Jar package, vaccum sealed |
| Delivery Time: | 1-4 weeks |
| Payment Terms: | T/T |
| Supply Ability: | 10000 pcs/Month |
|
Detail Information |
|||
| Product: | LiNbO3 Wafer | Type: | SAW Grade |
|---|---|---|---|
| Orientation: | 36Y, 64Y, 128Y | Surface: | Both Side Polish |
| Diameter: | 4'' | Thickness: | 350um, 500um |
| Roughness: | Ra<5 Angstrom | Application: | SAW Filter, Ultrasonic Transducer |
| Highlight: | Customized Orientation Cut Lithium Niobate Wafer,4 Inch Lithium Niobate Wafer,Various Designs Lithium Niobate Wafer |
||
Product Description
4 Inch Lithium Niobate Wafer with Customized Orientation Cut for Various Designs
The Premier Material for Precision Instrumentation
LiNbO3, a leading material in the precision instrumentation industry, offers unparalleled performance and reliability. Its unique piezoelectric and electro-optic properties make it an ideal choice for a range of demanding applications.
This remarkable material converts mechanical forces into electrical signals with exceptional sensitivity and accuracy. Its high stability and durability ensure consistent performance, even under extreme conditions. Whether you need precise measurements or reliable control systems, LiNbO3 delivers exceptional results.
Moreover, LiNbO3's excellent optical properties make it a perfect fit for optical communication and sensing applications. Its high refractive index and low optical loss ensure efficient light transmission, making it a key component in advanced optical systems.
Whether you're in the medical, industrial, or scientific fields, LiNbO3 is the material you need for precision instrumentation. Embrace its powerful capabilities and experience the difference it makes in your work. With LiNbO3, you can achieve unprecedented levels of accuracy and reliability.
|
Material |
LiNbO3 Crystal |
|
Orientation |
X / Z / Y41° / Y64° / Y128° / YZ / YX or Customized |
|
Diameter |
Φ76.2mm (3 inch); Φ100mm (4 inch); Φ150mm (6 inch) |
|
Surface finish |
One / Both sides polish |
|
Thickness |
350±25um / 500±25um |
|
TTV |
< 1~5µm |
|
BOW |
± (25µm ~40um ) |
|
Warp |
<= 35µm |
|
LTV (5mmx5mm) |
<1.5 um |
|
PLTV(<0.5um) |
≥98% (5mm*5mm) with 2mm edge excluded |
|
Edge |
Compl't with SEMI M1.2@with GC800# .regular at C typed |
|
Orientation flats |
available, per request |
|
Polished side Ra |
Roughness Ra<=5A |
|
Back Side Criteria |
Roughness Ra:0.5-1.0µm GC#1000 |
|
Edge Rounding |
Compliant with SEMI M1.2 Standard/refer to IEC62276 |
|
Cracks, saw marks, stains |
None |
Acceptance Check
- The product is fragile. We have adequately packed it and labeled it fragile. We deliver through excellent domestic and international express companies to ensure transportation quality.
- After receiving the goods, please handle with care and check whether the outer carton is in good condition. Carefully open the outer carton and check whether the packing boxes are in alignment. Take a picture before you take them out.
- Please open the vacuum package in a clean room when the products are to be applied.
- If the products are found damaged during courier, please take a picture or record a video immediately. DO NOT take the damaged products out of the packaging box! Contact us immediately and we will solve the problem well.
