High Performance Piezoelectric Wafer for Accurate Pressure Measurements
Product Details:
| Place of Origin: | China |
| Brand Name: | CSIMC |
| Certification: | ISO:9001, ISO:14001 |
| Model Number: | Quartz Sensor |
Payment & Shipping Terms:
| Minimum Order Quantity: | 20 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Cassette/ Jar package, vaccum sealed |
| Delivery Time: | 1-4 weeks |
| Payment Terms: | T/T |
| Supply Ability: | 50000 pcs/Month |
|
Detail Information |
|||
| Product: | AT Cut Quartz Endcaps | Material: | Quartz Crystal |
|---|---|---|---|
| Orientation: | AT-Cut | Sealing: | 2.4M |
| Mode: | TS Mode | Applications: | Downhole Detection |
| Highlight: | High Performance Piezoelectric Wafer,Accurate Pressure Measurements Piezoelectric Wafer |
||
Product Description
High-Performance Piezoelectric Wafer for Accurate Pressure Measurements

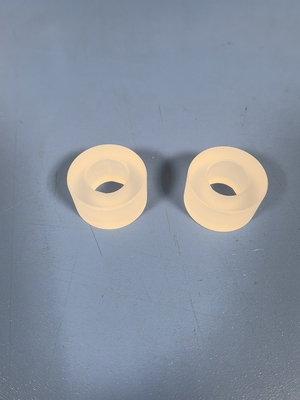

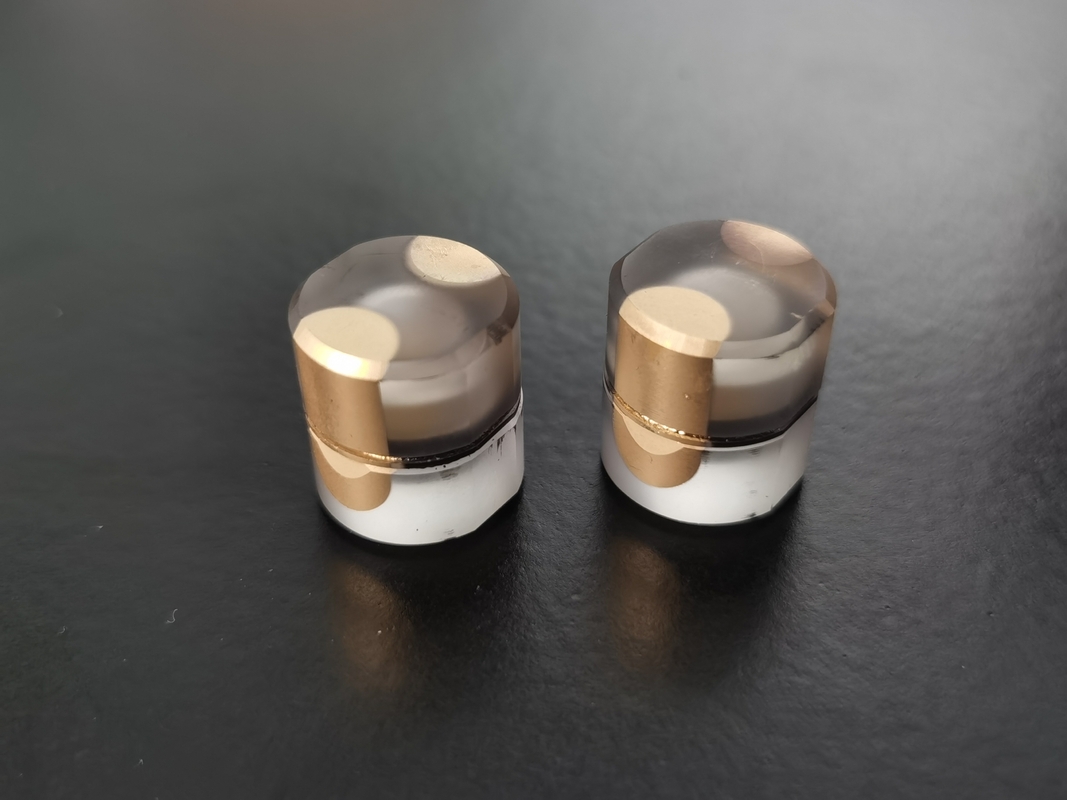

the Premier Piezoelectric Quartz End Cap
Step into the future of precision instrumentation with our state-of-the-art piezoelectric quartz end cap. This remarkable device utilizes the unique properties of quartz to convert mechanical forces into electrical signals, delivering unparalleled sensitivity and reliability.
Our piezoelectric quartz end cap is meticulously crafted from the finest quartz materials, ensuring superior durability and long-term stability. Its innovative design offers seamless integration with a variety of instrumentation systems, making it a versatile addition to any precision setup.
The piezoelectric quartz end cap offers a range of benefits that set it apart from traditional end caps. Its enhanced sensitivity allows for more precise measurements, while its resistance to noise ensures accurate data capture. Additionally, its compact size and lightweight design make it easy to integrate into existing systems without adding bulk or complexity.
Whether you're in the medical, industrial, or scientific fields, our piezoelectric quartz end cap is the perfect solution for your precision instrumentation needs. Embrace the power of piezoelectricity and experience the difference it makes in your work with this cutting-edge product.
| Materials | Single Quartz Blanks (both Piezo / Optical grade) |
| Materials | Both Pure Z and Y Bar available |
| Synthetic Q-Value | Min 1.8x10^6, 2.4x10^6 to 3.0x10^6 IEC standards |
| ECD | Max 100/c㎡, Max 300/c㎡; or per Customer’s request |
| Inclusions Density | I, II, III Grades |
| Cuts Type ( orientation) | AT, BT, CT, ET ,DT, GT, NT, FC, SC, IT, AC ,BC ,ST .TS MT ,NT RT …, etc per requested |
| Angle Tolerance(±) | Theta Angle: ±5″, ±10″, ±15″, ±30″, ±1′, ±2′, … , etc |
| Phi Angle:±5′, ±10′, ±15′, ±30′, … , etc | |
| Size For Round endcaps | From 10.0mm to 15.00mm (with flat) , 13.80mm as typical one |
| Height / Thickness | 5.00-7.00 mm per requested |
| Flat | Per requested the flat shall be perpendicular to X axis within ±10 deg |
| Surface Finishing | #1000(9u); #2000(7u); #3000(5u); #4000(3u) (Sic); Polished(Cerium oxide)& etched Std |
Packing and Shipping:
Our Piezoelectric Quartz Endcaps are carefully packed in a sealed and secure container with an anti-static layer and moisture barrier to ensure that it arrives securely and undamaged.
The container is then sealed and labeled with a unique identification number for tracking purposes.
We offer both domestic and international shipping options, with the latter requiring additional paperwork. We also provide a tracking number for all domestic shipments.
For further inquiries about our packaging and shipping services, please contact our customer service team.
