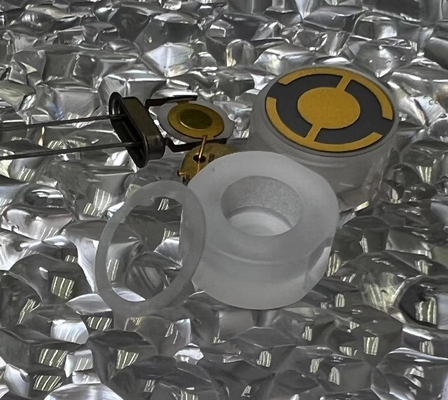

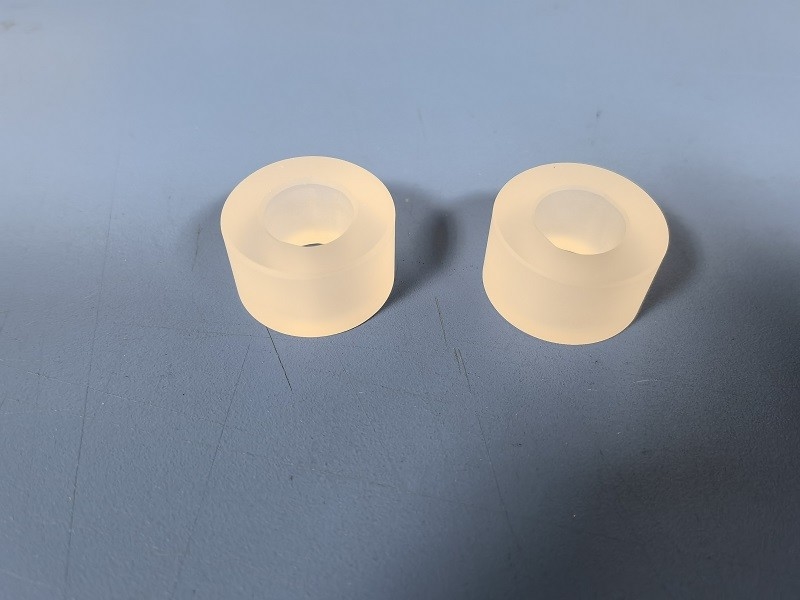

Quartz Endcap For Pressure Sensing With Stable Frequency Temperature Characteristics
Product Details:
| Place of Origin: | China |
| Brand Name: | BonTek |
| Certification: | ISO:9001, ISO:14001 |
| Model Number: | Quartz Sensor |
Payment & Shipping Terms:
| Minimum Order Quantity: | 20 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Cassette/ Jar package, vaccum sealed |
| Delivery Time: | 1-4 weeks |
| Payment Terms: | T/T |
| Supply Ability: | 50000 pcs/Month |
|
Detail Information |
|||
| Product: | AT Cut Quartz Endcaps | Material: | α Quartz |
|---|---|---|---|
| Orientation: | AT-Cut | Coating: | Au And Cr |
| Sealing: | Glass Frit | Applications: | Downhole Detection |
| Highlight: | Pressure Sensing Quartz Endcap,Stable Frequency Temperature Characteristics Quartz Endcap |
||
Product Description
Quartz Endcap for Pressure Sensing with Stable Frequency-Temperature Characteristics
the Premium Piezoelectric Quartz End Cap
Looking for precision and reliability in your instrumentation? Look no further than our piezoelectric quartz end cap. This state-of-the-art product combines the exceptional properties of quartz with piezoelectric technology, delivering unparalleled performance.
Our piezoelectric quartz end cap is made from the finest quartz material, ensuring its durability and stability. Its piezoelectric properties allow it to convert mechanical energy into electrical signals with remarkable accuracy, making it ideal for a wide range of applications.
With its precision-engineered design, our end cap seamlessly integrates into your instrumentation system, providing seamless performance and reliability. Whether you're in the medical, industrial, or scientific field, our piezoelectric quartz end cap will help you achieve the precision and accuracy you need.
So why wait? Upgrade your instrumentation with our piezoelectric quartz end cap and experience the difference it makes in your work. Contact us today to learn more about this revolutionary product and how it can transform your operations.
| Materials | Single Quartz Blanks (both Piezo / Optical grade) |
| Materials | Both Pure Z and Y Bar available |
| Synthetic Q-Value | Min 1.8x10^6, 2.4x10^6 to 3.0x10^6 IEC standards |
| ECD | Max 100/c㎡, Max 300/c㎡; or per Customer’s request |
| Inclusions Density | I, II, III Grades |
| Cuts Type ( orientation) | AT, BT, CT, ET ,DT, GT, NT, FC, SC, IT, AC ,BC ,ST .TS MT ,NT RT …, etc per requested |
| Angle Tolerance(±) | Theta Angle: ±5″, ±10″, ±15″, ±30″, ±1′, ±2′, … , etc |
| Phi Angle:±5′, ±10′, ±15′, ±30′, … , etc | |
| Size For Round endcaps | From 10.0mm to 15.00mm (with flat) , 13.80mm as typical one |
| Height / Thickness | 5.00-7.00 mm per requested |
| Flat | Per requested the flat shall be perpendicular to X axis within ±10 deg |
| Surface Finishing | #1000(9u); #2000(7u); #3000(5u); #4000(3u) (Sic); Polished(Cerium oxide)& etched Std |
Packing and Shipping:
Our Piezoelectric Quartz Endcaps are carefully packed in a sealed and secure container with an anti-static layer and moisture barrier to ensure that it arrives securely and undamaged.
The container is then sealed and labeled with a unique identification number for tracking purposes.
We offer both domestic and international shipping options, with the latter requiring additional paperwork. We also provide a tracking number for all domestic shipments.
For further inquiries about our packaging and shipping services, please contact our customer service team.
