Single Crystal Quartz Wafer for High-Sensitivity Pressure Sensing Application
Product Details:
| Place of Origin: | China |
| Brand Name: | CSIMC |
| Certification: | ISO:14001 |
| Model Number: | Single Crystal Quartz |
Payment & Shipping Terms:
| Minimum Order Quantity: | 50 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Film package, vaccum sealed |
| Delivery Time: | 1-4 weeks |
| Payment Terms: | T/T |
| Supply Ability: | 50000 pcs / Month |
|
Detail Information |
|||

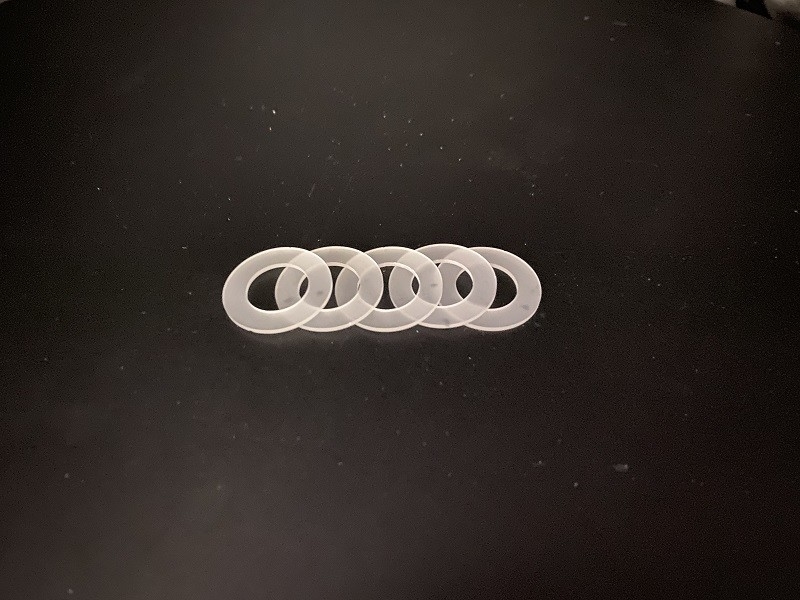

| Product: | Quartz Crystal Ring | Size: | Ring Shape With Hole |
|---|---|---|---|
| Cut Type: | X, Y, Z, AT, SC, ST | Surface: | Polish, Lap, Etch |
| Inner Dia.: | 1.5mm Up | Standard: | IEC Standards |
| Inclusion: | Ia, Ib, I, II, III | Eetch Channel Density: | 10cm2, 30cm2, 100cm2, 300cm2 |
| Highlight: | Polish Single Crystal Quartz Wafer,High-Sensitivity Pressure Quartz Wafer |
||
Product Description
Single Crystal Quartz Wafer for High-Sensitivity Pressure Sensing Application
The Ultimate Choice for Precision and Stability
Push the boundaries of precision and stability with our single-crystal quartz rings. These innovative components are crafted from the purest quartz, ensuring unparalleled performance in even the most demanding applications.
Our single-crystal quartz rings boast exceptional piezoresistivity, making them ideal for use in sensors and oscillators that require pinpoint accuracy. Whether you're developing high-end electronics, precision instrumentation, or any other application that demands the utmost in stability and reliability, our quartz rings will deliver outstanding results.
Not only do they excel in performance, but our quartz rings also feature a sleek and durable design that ensures long-term reliability and ease of use. With their precision-cut edges and smooth surfaces, they integrate seamlessly into your existing systems, minimizing setup time and maximizing efficiency.
Embrace the future of precision and stability with our single-crystal quartz rings. Contact us now to learn more and discover how our quartz rings can revolutionize your applications.
|
Material |
Single Crystal Quartz Blanks (Piezo / Optical grade) |
|
Synthetic Q-Value |
Min 1.8×10^6, 2.4×10^6, 3.0×10^6 (IEC standards) |
|
Etch Channel Density (ECD) |
2/cm2,10/ cm2,30/ cm2,100/ cm2,300/cm2；Swept Quartz (IEC standards) |
|
Inclusions Density |
Ia,Ib,I, II,III Grades (IEC standards) |
|
Cutting Angle |
X / Y / Z / AT / BT / ST etc. |
|
Outter Diameter |
3mm ~ 200mm |
|
Inner Diameter |
1.5mm ~ 100mm |
|
Thickness |
0.1mm ~ 5mm |
|
Orientation Flat |
As required, or Pencil marked |
|
Surface Finish |
Double side lapped, Double side polished |
|
Polished side Ra |
<1nm or specific per requested |
|
Back Side Criteria |
General is 0.2-0.5µm or as customized |
FAQs:
- Q: What are the products you mainly work on?
A: We look at ourselves as the piezo wafer specialist. We are the very first to work with Single Crystal Quartz in China about 30 years ago. Then gradually we step in the field of LiNbO3, LiTaO3, Quartz glass, LGS, CTGS etc. Especially, if you are looking for a piezo quartz supplier, we are the ultimate choice! We export millions of quartz blanks each year because we master the AT, SC and IT cuts with superior angle precision.
- Q: Can you accept product customization?
A: Yes, of course. We can fabricate as per your request. In addition, we are so experienced with piezo wafers that we can provide you relevant suggestions if you are not 100% sure about your choice. Besides, we do have some standard wafers in stock, please check with us.
- Q: Can you deliver the goods via our courier agent?
A: Yes, we would suggest you go with the courier agent you are most familiar with (DHL, FedEX, UPS etc.). We can ship via your account. And, of course, we will pack the products safely in acceptable size to help you save the shipping cost. If you need us to take care of the freight, it’s also not a problem. We also have good discount with the international courier companies.
- Q: How can you guarantee we get what we want safely?
A: The wafer products are fragile and sometimes expensive. The last thing, as the manufacturer, we want to see is the products we make were damaged during courier. As a result, we will pack the wafers adequately and put them in a proper carton filled with buffer sponge. However, accidents are inevitable sometimes. So, please follow the “Acceptance check” steps shown in the drawings below. If the unwanted happened, we will either give the replenishment or refund if you follow the checking steps.
- Q: Can we visit your factory?
A: Sure. Factory inspection is important for large quantity purchase and long-term cooperation. Face to face discussion is what we mostly confident with. During the past years, big names around the world have witnessed our progress in factory build-up. These days, due to the Covid-19 pandemic, we also had the experience of videoconferencing with global buyers.
Acceptance Check
