Quartz Endcap and Coated AT Blank for High-Performance Pressure Sensors in Industry
Product Details:
| Place of Origin: | China |
| Brand Name: | CSIMC |
| Certification: | ISO:9001, ISO:14001 |
| Model Number: | Quartz Sensor |
Payment & Shipping Terms:
| Minimum Order Quantity: | 20 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Cassette/ Jar package, vaccum sealed |
| Delivery Time: | 1-4 weeks |
| Payment Terms: | T/T |
| Supply Ability: | 50000 pcs/Month |
|
Detail Information |
|||
| Product: | Quartz Endcap | Material: | Single Crystal Quartz |
|---|---|---|---|
| Orientation: | Coated AT Quartz Blank | Mode: | Dual-mode Thickness-Shear |
| Sealing: | Glass Frit | Applications: | Quartz Pressure Sensor |
| Highlight: | Coated AT Blank Quartz Endcap,Pressure Sensors Quartz Endcap,Industry Quartz Endcap |
||
Product Description

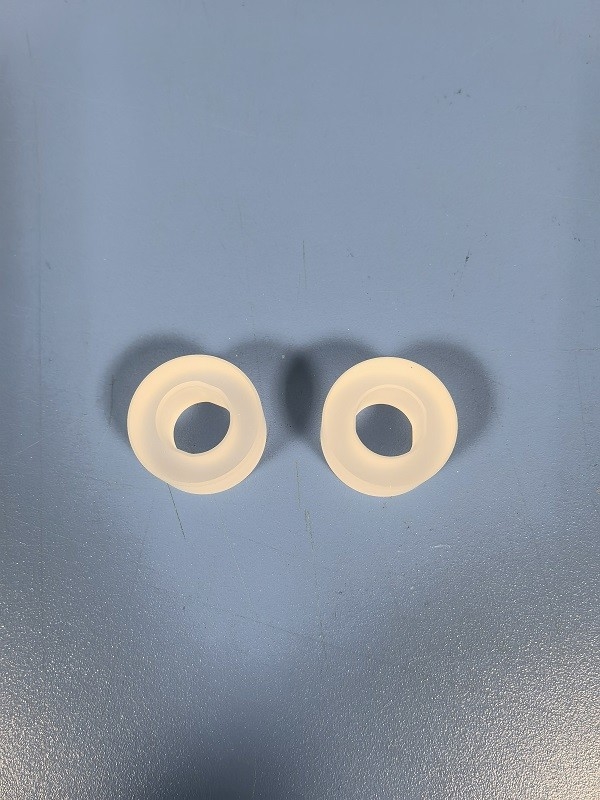

Quartz Endcap and Coated AT Blank for High-Performance Pressure Sensors in Industry
Quartz End Caps: The Epitome of Durability and Precision
Elevate your industrial applications with our exceptional quartz end caps. Crafted from the finest quartz, these end caps are designed to withstand the harshest conditions, offering unmatched durability and longevity.
The quartz material ensures superior resistance to heat, pressure, and chemical corrosion, making our end caps the ideal choice for high-temperature and high-pressure applications. Whether you're in the oil and gas industry, aerospace, or any other demanding field, our quartz end caps will deliver unwavering performance.
Not only are they tough, but our quartz end caps also boast precision engineering. Their seamless construction ensures a tight, leak-proof fit, minimizing the risk of any operational issues.
Invest in our quartz end caps and enjoy peace of mind with their reliability and performance. Contact us now to learn more and take your industrial applications to the next level with our innovative quartz solutions.
| Materials | Single Quartz Blanks (both Piezo / Optical grade) |
| Materials | Both Pure Z and Y Bar available |
| Synthetic Q-Value | Min 1.8x10^6, 2.4x10^6 to 3.0x10^6 IEC standards |
| ECD | Max 100/c㎡, Max 300/c㎡; or per Customer’s request |
| Inclusions Density | I, II, III Grades |
| Cuts Type ( orientation) | AT, BT, CT, ET ,DT, GT, NT, FC, SC, IT, AC ,BC ,ST .TS MT ,NT RT …, etc per requested |
| Angle Tolerance(±) | Theta Angle: ±5″, ±10″, ±15″, ±30″, ±1′, ±2′, … , etc |
| Phi Angle:±5′, ±10′, ±15′, ±30′, … , etc | |
| Size For Round endcaps | From 10.0mm to 15.00mm (with flat) , 13.80mm as typical one |
| Height / Thickness | 5.00-7.00 mm per requested |
| Flat | Per requested the flat shall be perpendicular to X axis within ±10 deg |
| Surface Finishing | #1000(9u); #2000(7u); #3000(5u); #4000(3u) (Sic); Polished(Cerium oxide)& etched Std |
Packing and Shipping:

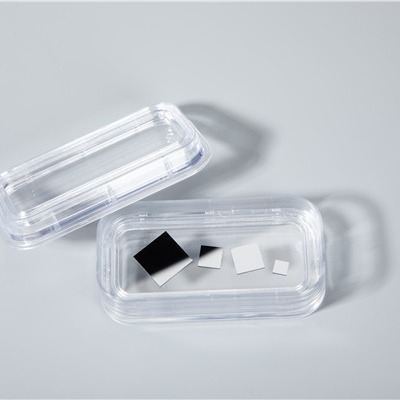

Our Piezoelectric Quartz Endcaps are carefully packed in a sealed and secure container with an anti-static layer and moisture barrier to ensure that it arrives securely and undamaged.
The container is then sealed and labeled with a unique identification number for tracking purposes.
We offer both domestic and international shipping options, with the latter requiring additional paperwork. We also provide a tracking number for all domestic shipments.
For further inquiries about our packaging and shipping services, please contact our customer service team.
