High-Temperature and Pressure Quartz Sensor Unit for Downhole Oil Pressure Control
Product Details:
| Place of Origin: | China |
| Brand Name: | CSIMC |
| Certification: | ISO:9001, ISO:14001 |
| Model Number: | Quartz Sensor |
Payment & Shipping Terms:
| Minimum Order Quantity: | 20 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Cassette/ Jar package, vaccum sealed |
| Delivery Time: | 1-4 weeks |
| Payment Terms: | T/T |
| Supply Ability: | 50000 pcs/Month |
|
Detail Information |
|||

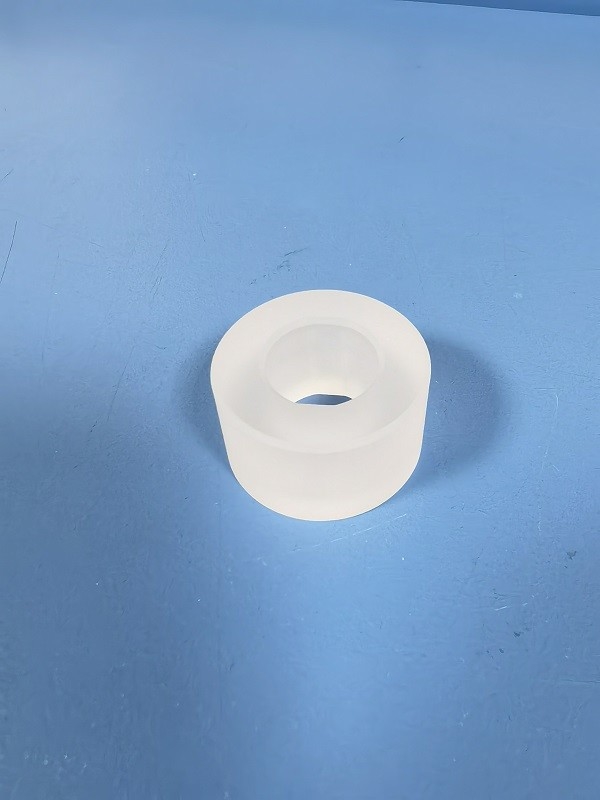

| Product Name: | AT Cut Quartz Endcaps | Material: | Synthetic Quartz |
|---|---|---|---|
| Orientation: | AT-Cut | Mode: | Thickness Shear |
| Sealing: | Glass Frit | Applications: | Quartz Pressure Sensor |
| Highlight: | High-Temperature Quartz Sensor Unit,High Pressure Quartz Sensor Unit,Downhole Oil Pressure Control Quartz Sensor Unit |
||
Product Description
High-Temperature and Pressure Quartz Sensor Unit for Downhole Oil Pressure Control
Our High-Temperature Pressure Quartz Sensor: The Ultimate Tool for Precision Measurement
Elevate your measurement capabilities with our cutting-edge high-temperature pressure quartz sensor. Designed for exceptional durability and accuracy, this sensor thrives in extreme environments, withstanding temperatures that would render conventional sensors obsolete.
The quartz material ensures superior stability and long-term reliability, even under intense pressure. Its precision engineering allows for meticulous data capture, crucial for critical applications in industries like oil and gas, aerospace, and automotive.
Not only does our sensor excel in performance, but its compact design also offers seamless integration into your existing systems. With its user-friendly interface, setup and calibration are a breeze.
Trust our high-temperature pressure quartz sensor to deliver unparalleled results, time after time. Embrace the future of precision measurement and upgrade your operations with this revolutionary technology. Contact us now to learn more and experience the difference.
| Materials | Single Quartz Blanks (both Piezo / Optical grade) |
| Materials | Both Pure Z and Y Bar available |
| Synthetic Q-Value | Min 1.8x10^6, 2.4x10^6 to 3.0x10^6 IEC standards |
| ECD | Max 100/c㎡, Max 300/c㎡; or per Customer’s request |
| Inclusions Density | I, II, III Grades |
| Cuts Type ( orientation) | AT, BT, CT, ET ,DT, GT, NT, FC, SC, IT, AC ,BC ,ST .TS MT ,NT RT …, etc per requested |
| Angle Tolerance(±) | Theta Angle: ±5″, ±10″, ±15″, ±30″, ±1′, ±2′, … , etc |
| Phi Angle:±5′, ±10′, ±15′, ±30′, … , etc | |
| Size For Round endcaps | From 10.0mm to 15.00mm (with flat) , 13.80mm as typical one |
| Height / Thickness | 5.00-7.00 mm per requested |
| Flat | Per requested the flat shall be perpendicular to X axis within ±10 deg |
| Surface Finishing | #1000(9u); #2000(7u); #3000(5u); #4000(3u) (Sic); Polished(Cerium oxide)& etched Std |
Packing and Shipping:
Our Piezoelectric Quartz Endcaps are carefully packed in a sealed and secure container with an anti-static layer and moisture barrier to ensure that it arrives securely and undamaged.
The container is then sealed and labeled with a unique identification number for tracking purposes.
We offer both domestic and international shipping options, with the latter requiring additional paperwork. We also provide a tracking number for all domestic shipments.
For further inquiries about our packaging and shipping services, please contact our customer service team.
