AT-Cut Quartz End Cap for Accurate Pressure Measurements in Environmental Monitoring
Product Details:
| Place of Origin: | China |
| Brand Name: | CSIMC |
| Certification: | ISO:9001, ISO:14001 |
| Model Number: | Quartz Sensor |
Payment & Shipping Terms:
| Minimum Order Quantity: | 20 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Cassette/ Jar package, vaccum sealed |
| Delivery Time: | 1-4 weeks |
| Payment Terms: | T/T |
| Supply Ability: | 50000 pcs/Month |
|
Detail Information |
|||
| Product: | AT Cut Quartz Endcaps | Material: | α Quartz |
|---|---|---|---|
| Orientation: | AT-Cut | Coating: | Au And Cr |
| Sealing: | Glass Frit | Applications: | Downhole Detection |
| Highlight: | Environmental Monitoring cut Quartz End Cap,Accurate Pressure Measurements Quartz End Cap |
||
Product Description

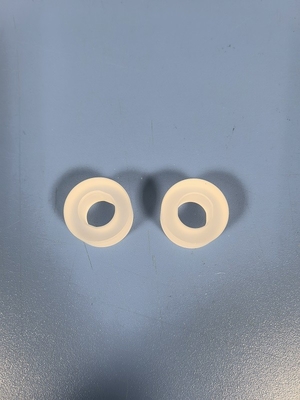

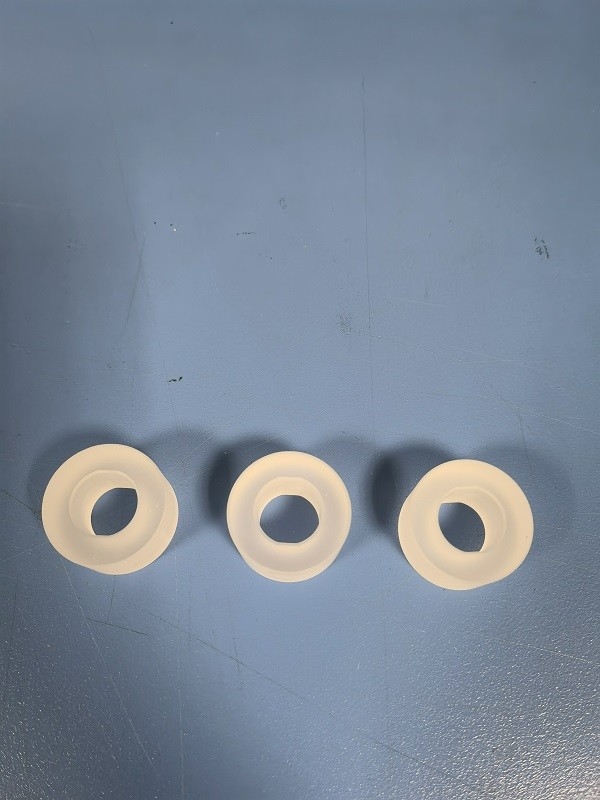

AT-Cut Quartz End Cap for Accurate Pressure Measurements in Environmental Monitoring
The Piezoelectric Quartz End Cap - an innovative solution for precision sensing and actuation applications. This remarkable quartz-based component offers unparalleled piezoelectric properties, enabling it to convert mechanical stress into electrical signals with unprecedented sensitivity and accuracy.
The Piezoelectric Quartz End Cap is fabricated from high-quality quartz crystal, renowned for its excellent piezoelectric response and stability. Its unique crystal structure allows it to generate strong electrical signals even under minute mechanical deformations, making it an ideal choice for precision sensing applications.
Moreover, the Piezoelectric Quartz End Cap offers superior durability and reliability. Its robust construction ensures resistance to harsh environments and extreme conditions, while its low coefficient of thermal expansion maintains consistent performance even under temperature fluctuations.
Whether you're developing precision sensors, actuators, or any other piezoelectric devices, the Piezoelectric Quartz End Cap is the perfect solution. Its high sensitivity, durability, and reliability ensure accurate and consistent performance in even the most demanding applications.
Choose the Piezoelectric Quartz End Cap and experience the difference in precision sensing and actuation. Let us help you bring your piezoelectric innovations to the next level with this exceptional component.
| Materials | Single Quartz Blanks (both Piezo / Optical grade) |
| Materials | Both Pure Z and Y Bar available |
| Synthetic Q-Value | Min 1.8x10^6, 2.4x10^6 to 3.0x10^6 IEC standards |
| ECD | Max 100/c㎡, Max 300/c㎡; or per Customer’s request |
| Inclusions Density | I, II, III Grades |
| Cuts Type ( orientation) | AT, BT, CT, ET ,DT, GT, NT, FC, SC, IT, AC ,BC ,ST .TS MT ,NT RT …, etc per requested |
| Angle Tolerance(±) | Theta Angle: ±5″, ±10″, ±15″, ±30″, ±1′, ±2′, … , etc |
| Phi Angle:±5′, ±10′, ±15′, ±30′, … , etc | |
| Size For Round endcaps | From 10.0mm to 15.00mm (with flat) , 13.80mm as typical one |
| Height / Thickness | 5.00-7.00 mm per requested |
| Flat | Per requested the flat shall be perpendicular to X axis within ±10 deg |
| Surface Finishing | #1000(9u); #2000(7u); #3000(5u); #4000(3u) (Sic); Polished(Cerium oxide)& etched Std |
Packing and Shipping:
Our Piezoelectric Quartz Endcaps are carefully packed in a sealed and secure container with an anti-static layer and moisture barrier to ensure that it arrives securely and undamaged.
The container is then sealed and labeled with a unique identification number for tracking purposes.
We offer both domestic and international shipping options, with the latter requiring additional paperwork. We also provide a tracking number for all domestic shipments.
For further inquiries about our packaging and shipping services, please contact our customer service team.
