Stable Frequency-Temperature Characteristics Quartz Endcap for Pressure Sensing
Product Details:
| Place of Origin: | China |
| Brand Name: | CSIMC |
| Certification: | ISO:9001, ISO:14001 |
| Model Number: | Quartz Sensor |
Payment & Shipping Terms:
| Minimum Order Quantity: | 20 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Cassette/ Jar package, vaccum sealed |
| Delivery Time: | 1-4 weeks |
| Payment Terms: | T/T |
| Supply Ability: | 50000 pcs/Month |
|
Detail Information |
|||
| Product: | AT Cut Quartz Endcaps | Material: | Quartz Crystal |
|---|---|---|---|
| Orientation: | AT-Cut | Sealing: | 2.4M |
| Mode: | TS Mode | Applications: | Downhole Detection |
| Highlight: | Pressure Sensing Quartz Endcap,Stable Frequency-Temperature Characteristics Quartz Endcap |
||
Product Description
Quartz Endcap for Pressure Sensing with Stable Frequency-Temperature Characteristics

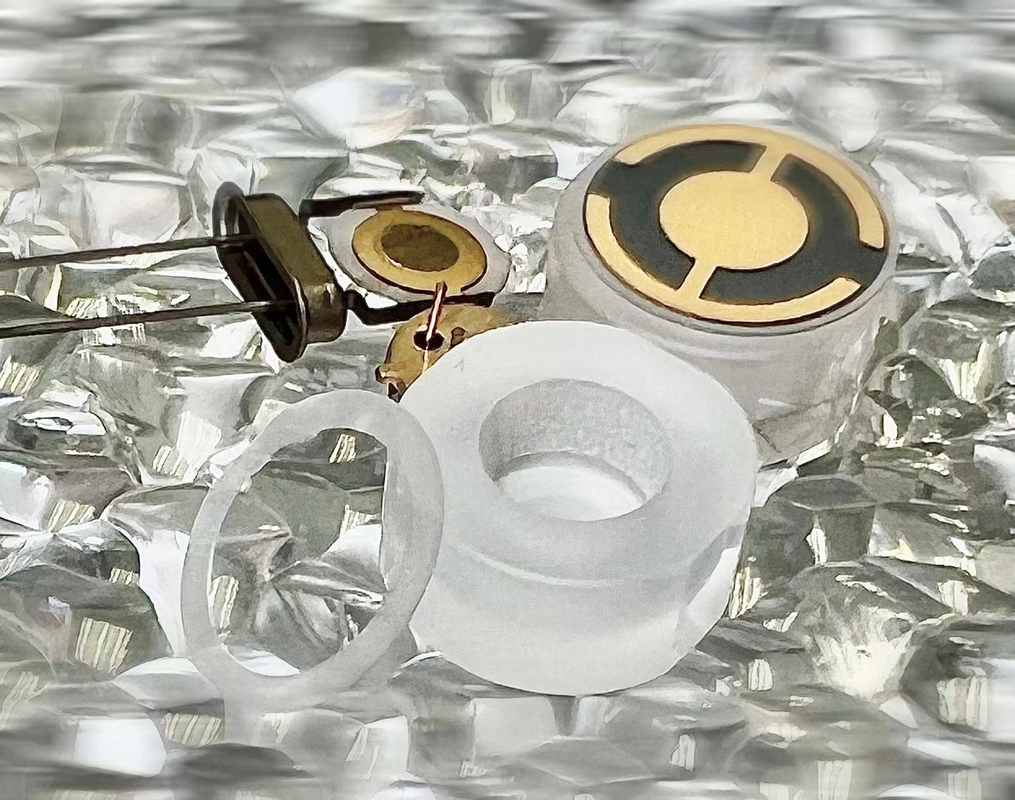

The piezoelectric quartz cap, a revolutionary pressure sensor component that sets the benchmark for performance and stability. This remarkable device features a unique AT-cut quartz end cap design, harnessing the principles of quartz crystal thickness-shear mode to precisely detect changes in applied pressure.
The AT-cut quartz crystal, renowned for its exceptional frequency-temperature characteristics, ensures accurate and reliable sensing across various environmental conditions. The sleek and compact end cap design not only enhances the aesthetic appeal but also facilitates seamless integration into your sensor systems, offering unparalleled convenience and flexibility.
The working principle of the piezoelectric quartz cap is ingenious and effective. When pressure is exerted on the quartz crystal, it triggers changes in its mechanical stress and mass distribution, resulting in a shift in the crystal's resonance frequency. This shift is directly proportional to the amount of pressure applied, enabling precise and accurate pressure measurements.
Whether you're in industrial automation, environmental monitoring, or medical instrumentation, the piezoelectric quartz cap offers a dependable solution for your pressure sensing needs. Its superior performance and reliability make it the ideal choice for ensuring accurate and efficient pressure measurements. Choose the piezoelectric quartz cap and experience the difference in precision and performance.
| Materials | Single Quartz Blanks (both Piezo / Optical grade) |
| Materials | Both Pure Z and Y Bar available |
| Synthetic Q-Value | Min 1.8x10^6, 2.4x10^6 to 3.0x10^6 IEC standards |
| ECD | Max 100/c㎡, Max 300/c㎡; or per Customer’s request |
| Inclusions Density | I, II, III Grades |
| Cuts Type ( orientation) | AT, BT, CT, ET ,DT, GT, NT, FC, SC, IT, AC ,BC ,ST .TS MT ,NT RT …, etc per requested |
| Angle Tolerance(±) | Theta Angle: ±5″, ±10″, ±15″, ±30″, ±1′, ±2′, … , etc |
| Phi Angle:±5′, ±10′, ±15′, ±30′, … , etc | |
| Size For Round endcaps | From 10.0mm to 15.00mm (with flat) , 13.80mm as typical one |
| Height / Thickness | 5.00-7.00 mm per requested |
| Flat | Per requested the flat shall be perpendicular to X axis within ±10 deg |
| Surface Finishing | #1000(9u); #2000(7u); #3000(5u); #4000(3u) (Sic); Polished(Cerium oxide)& etched Std |
