AT-Cut Thickness Shear Mode Piezoelectric Wafer for Downhole Oil Pressure Sensors
Product Details:
| Place of Origin: | China |
| Brand Name: | CSIMC |
| Certification: | ISO:9001, ISO:14001 |
| Model Number: | Quartz Sensor |
Payment & Shipping Terms:
| Minimum Order Quantity: | 20 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Cassette/ Jar package, vaccum sealed |
| Delivery Time: | 1-4 weeks |
| Payment Terms: | T/T |
| Supply Ability: | 50000 pcs/Month |
|
Detail Information |
|||
| Product: | AT Cut Quartz Endcaps | Material: | Synthetic Quartz |
|---|---|---|---|
| Orientation: | AT-Cut | Q-factor: | 2.4M |
| Mode: | Thickness Shear | Applications: | Quartz Pressure Sensor |
| Highlight: | Shear Mode Piezoelectric Wafer,Downhole Oil Pressure Sensors Piezoelectric Wafer |
||
Product Description
AT-Cut Thickness Shear Mode Piezoelectric Wafer for Downhole Oil Pressure Sensors

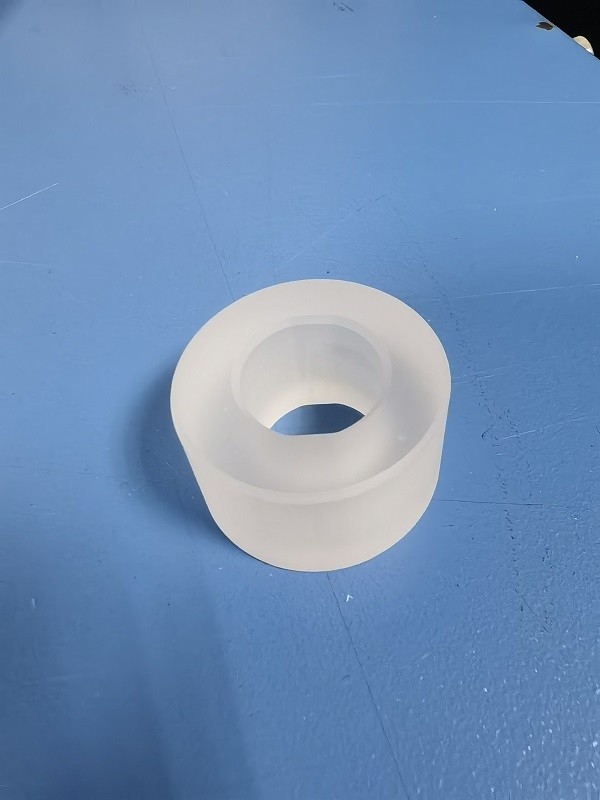

Introducing the piezoelectric quartz cap, an exceptional pressure sensor component that excels in performance and stability with its unique AT-cut quartz end cap design. Leveraging the principles of quartz crystal thickness-shear mode, this cap accurately senses applied pressure by monitoring changes in the crystal's resonance frequency.
Renowned for its outstanding frequency-temperature characteristics, the AT-cut quartz crystal ensures the accuracy and reliability of the sensor under various environmental conditions. The sleek and elegant end cap design not only enhances aesthetics but also facilitates seamless integration and installation within sensor components, offering users utmost convenience.
The working principle of the quartz cap is simple yet efficient. When pressure is applied to the quartz crystal, its mechanical stress and mass distribution undergo changes, resulting in a shift in the crystal's resonance frequency. This frequency shift is directly proportional to the applied pressure, enabling precise perception and measurement of pressure variations.
Whether in industrial control, environmental monitoring, or medical equipment, the piezoelectric quartz cap delivers outstanding performance, providing reliable solutions for your pressure sensing needs. Choose the piezoelectric quartz cap, choose trust and efficiency.

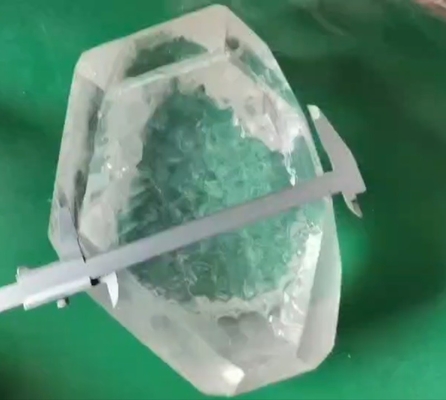

| Materials | Single Quartz Blanks (both Piezo / Optical grade) |
| Materials | Both Pure Z and Y Bar available |
| Synthetic Q-Value | Min 1.8x10^6, 2.4x10^6 to 3.0x10^6 IEC standards |
| ECD | Max 100/c㎡, Max 300/c㎡; or per Customer’s request |
| Inclusions Density | I, II, III Grades |
| Cuts Type ( orientation) | AT, BT, CT, ET ,DT, GT, NT, FC, SC, IT, AC ,BC ,ST .TS MT ,NT RT …, etc per requested |
| Angle Tolerance(±) | Theta Angle: ±5″, ±10″, ±15″, ±30″, ±1′, ±2′, … , etc |
| Phi Angle:±5′, ±10′, ±15′, ±30′, … , etc | |
| Size For Round endcaps | From 10.0mm to 15.00mm (with flat) , 13.80mm as typical one |
| Height / Thickness | 5.00-7.00 mm per requested |
| Flat | Per requested the flat shall be perpendicular to X axis within ±10 deg |
| Surface Finishing | #1000(9u); #2000(7u); #3000(5u); #4000(3u) (Sic); Polished(Cerium oxide)& etched Std |
Packing and Shipping:
Our Piezoelectric Quartz Endcaps are carefully packed in a sealed and secure container with an anti-static layer and moisture barrier to ensure that it arrives securely and undamaged.
The container is then sealed and labeled with a unique identification number for tracking purposes.
We offer both domestic and international shipping options, with the latter requiring additional paperwork. We also provide a tracking number for all domestic shipments.
For further inquiries about our packaging and shipping services, please contact our customer service team.
