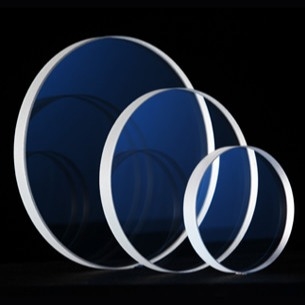

Diameter 6inch Sapphire Wafer LED Grade Polished Transparent
Product Details:
| Place of Origin: | China |
| Brand Name: | BonTek |
| Certification: | ISO:9001 |
| Model Number: | SAP |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10 pcs |
|---|---|
| Price: | $60.00/ea |
| Packaging Details: | Cassette, vacuum sealed |
| Delivery Time: | 2~4 weeks |
| Payment Terms: | TT/in advance |
| Supply Ability: | 10000 pcs |
|
Detail Information |
|||
| Material: | Sapphire Wafer | Diameter: | 6 Inch |
|---|---|---|---|
| Orientation: | C Plane Tiled M Axis 0.20°±0.1° | Flat Location: | A-axist±0.2° |
| Surface: | Mirror Polished EPI-Ready | Bow & Warp: | 0~-30μm |
| Warp: | <40um | Clear Aperture: | >90% |
| Highlight: | Polished Transparent Sapphire Wafer,Diameter 6inch Sapphire Wafer,LED Grade Sapphire Piezoelectric Wafer |
||
Product Description
Diameter 6inch Sapphire Wafer LED Grade Polished Transparent
Product Description:
Sapphire Wafer is a high-precision sapphire substrate with superior performance. It is a wafer-shaped sapphire slice with excellent parallelism, clear aperture, bow & warp and orientation. The parallelism is ≤3 Arc Sec, the clear aperture is >90%, the bow & warp is ≤20μm and the orientation is ±0.5°. It is a one-of-a-kind sapphire substrate that provides superior thermal, mechanical and optical properties. It is ideal for a wide range of applications, including LED, laser, optical and electronic components. With its superior performance and unparalleled advantages, Sapphire Wafer is the perfect choice for advanced applications.
Technical Parameters:
| Sapphire Wafer | |||
| Item | 2 Inch | 4 Inch | 6 Inch |
| Crystal | LED Grade Sapphire | LED Grade Sapphire | LED Grade Sapphire |
| Purity | >99.998% | >99.998% | >99.998% |
| Color | Transparent | Transparent | Transparent |
| Orientation | C plane tiled M axis 0.20°±0.1° | C plane tiled M axis 0.20°±0.1° | C plane tiled M axis 0.20°±0.1° |
| Diameter | 50.8±0.1mm | 100±0.2mm | 150±0.2mm |
| Thickness | 430±15um | 650±25um | 1300±25um |
| PF Location | A-axist±0.2° | A-axist±0.2° | A-axist±0.2° |
| Flat Length | 16.0±1.0mm | 30.0±1.0mm | 49.0±1.0mm |
| Front Side Surface | Mirror polished EPI-Ready | Mirror polished EPI-Ready | Mirror polished EPI-Ready |
| Surface Roughness | Ra<3A | Ra<3A | Ra<3A |
| Back Side Roughness | Fine ground, Ra=1.0±0.2um | Fine ground, Ra=1.0±0.2um | Fine ground, Ra=1.0±0.2um |
| TTV | <5.0um | <10um | <15um |
| BOW | 0~-5um | 0~-10um | 0~-30um |
| Warp | <10um | <15um | <40um |
| Bubble& Color | None by visual inspection in fluorescent light | ||
| Cleanliness | Free visible contamination | ||
| Packaging | Vacuum packed in one-piece box or Entegris cassettes of 25 | ||
Applications:
Customization:
We offer great quality Sapphire Plate/Sapphire Wafer from BonTek with model number SAP. Our products are certified by ISO:9001 and are from China. Minimum order quantity is 10 pcs with price of $60.00/ea. Packaging is done in Cassette, vacuum sealed. Delivery time is 2~4 weeks and payment terms are TT/in advance. Supply Ability is 10000 pcs. Orientation is ±0.5°, TTV is ≤3μm, Shape is Wafer, Bow & Warp is ≤20μm and Flatness is λ/10.
Packing and Shipping:
Sapphire Wafer Packaging and Shipping :
Sapphire Wafers are securely packaged and shipped to customers in their original anti-static packaging. We use bubble wrap, foam, and other materials to ensure the sapphire wafers are well protected and arrive in perfect condition.
We offer a variety of shipping options to ensure your package is delivered on time, including USPS, FedEx, and UPS. We also provide tracking numbers for all orders to ensure the safe delivery of your sapphire wafer.
